Replace Kuhnke air whisker valves with non-contact sensing on compatible ASSET, ICP and other pneumatic fillers. The ICP Sensor Box sends a timed air signal to start filling, supports No Bottle, No Fill , and uses industry-standard M12 connections for compatible sensors.
From $2,100 – configured to suit your machine
Every ICP Sensor Box is set up for the machine, conveyor and containers it will run with. The final price depends on three things:
- Sensor rails – how the sensors are carried along your conveyor and guide rails.
- Sensor mounting – where and how each sensor is mounted, so the front-gate and queue sensors sit in the right positions for your conveyor layout.
- Sensor type – a standard sensor, or a clear-object sensor for transparent bottles and jars. All use industry-standard M12 connections.
For a quote, send us your machine make and model, photos of your current whisker and conveyor mounts, and the containers you run – or call 02 9987 1871.
Details

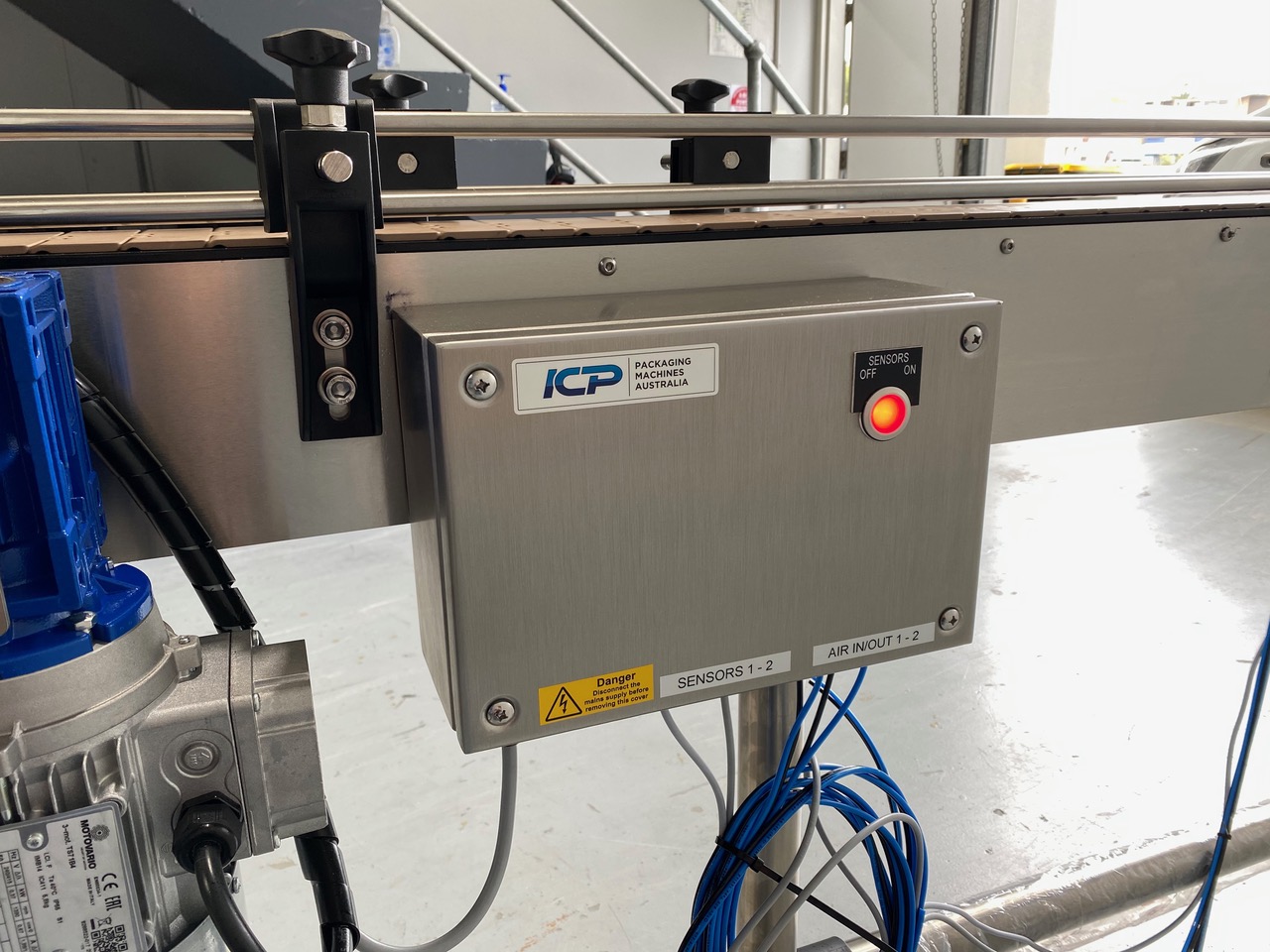

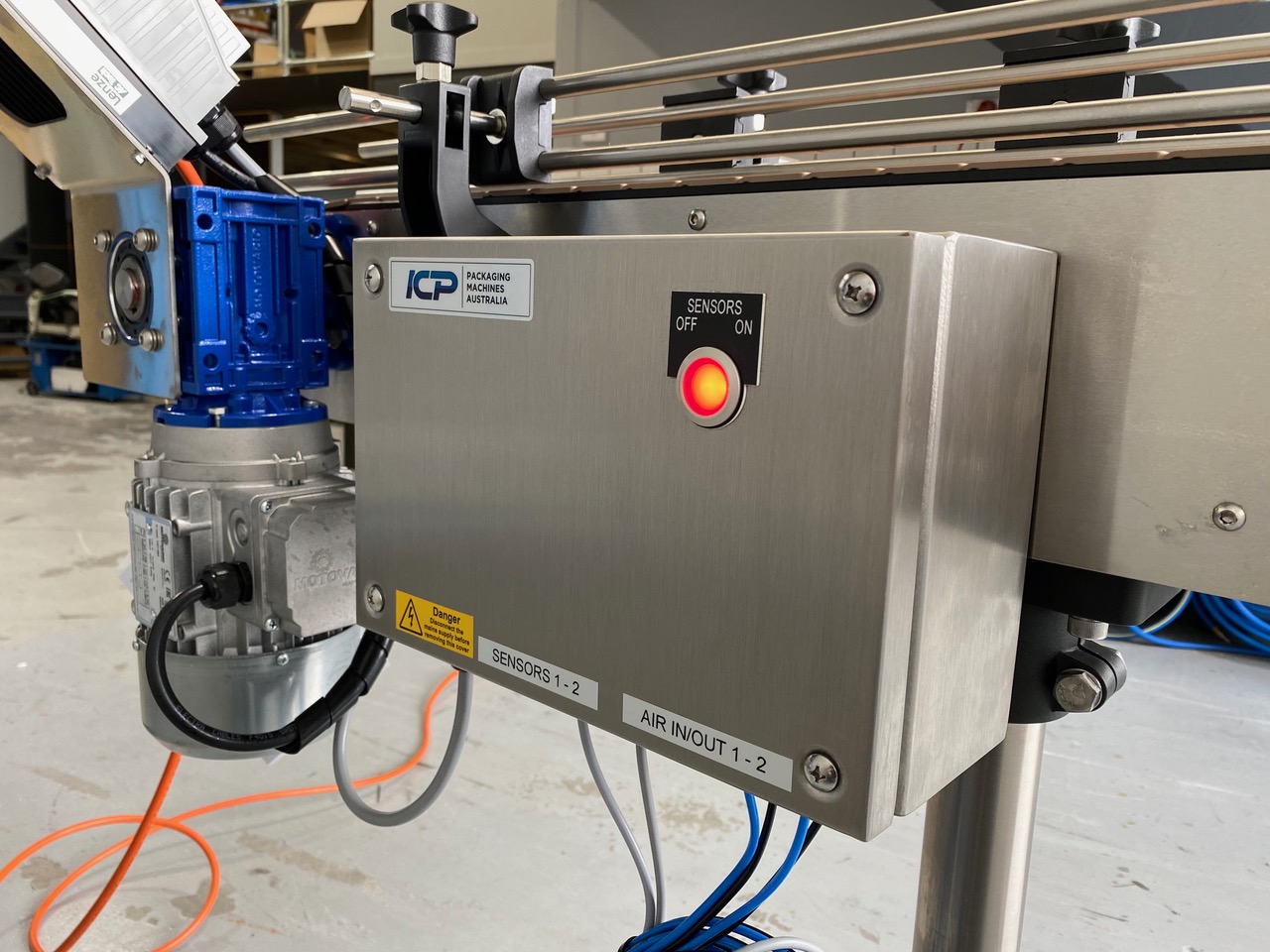

ICP Sensor Box for Pneumatic Filling Machines
Upgrade from a Kuhnke pneumatic whisker valve or other air whisker sensor to non-contact electronic detection. The ICP Sensor Box adds programmable timing and sends the pneumatic start signal your automatic filler already uses.
Australian Made and Owned
Designed and built in Sydney by ICP Packaging Machines Australia.
How the ICP Sensor Box works

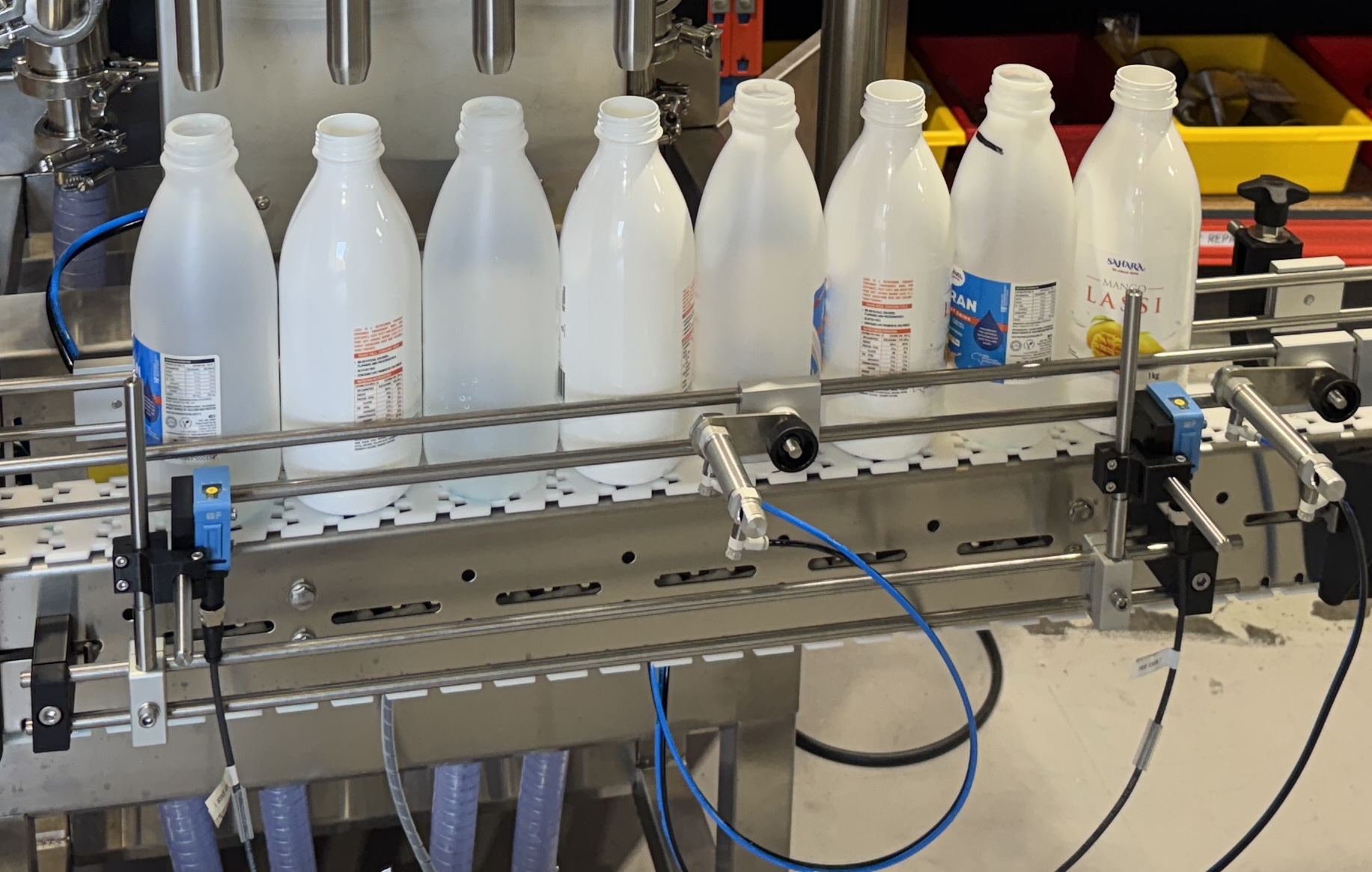

On a multi-head filler configured for No Bottle, No Fill, two sensors check that containers are in position before the fill cycle starts.

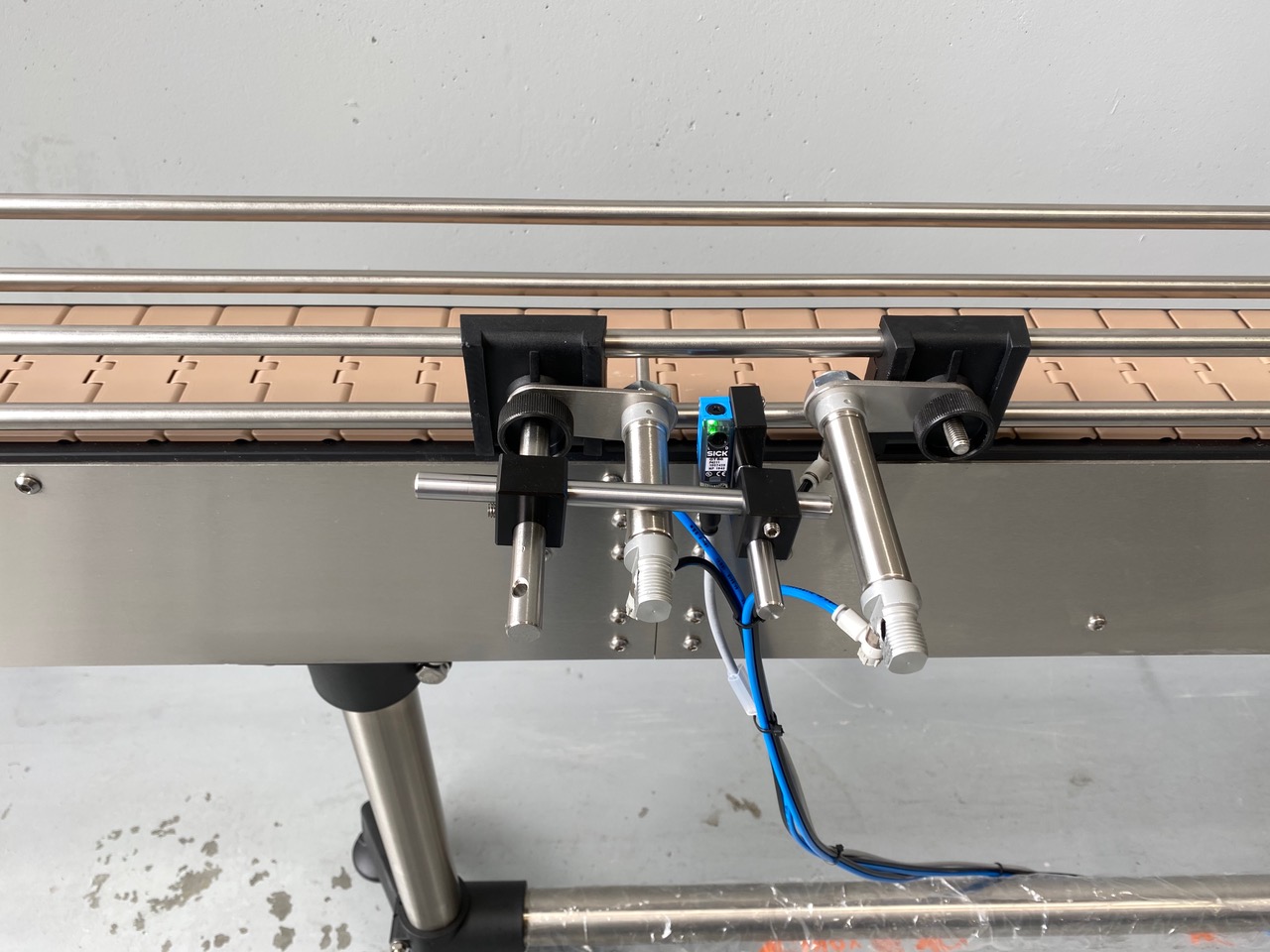

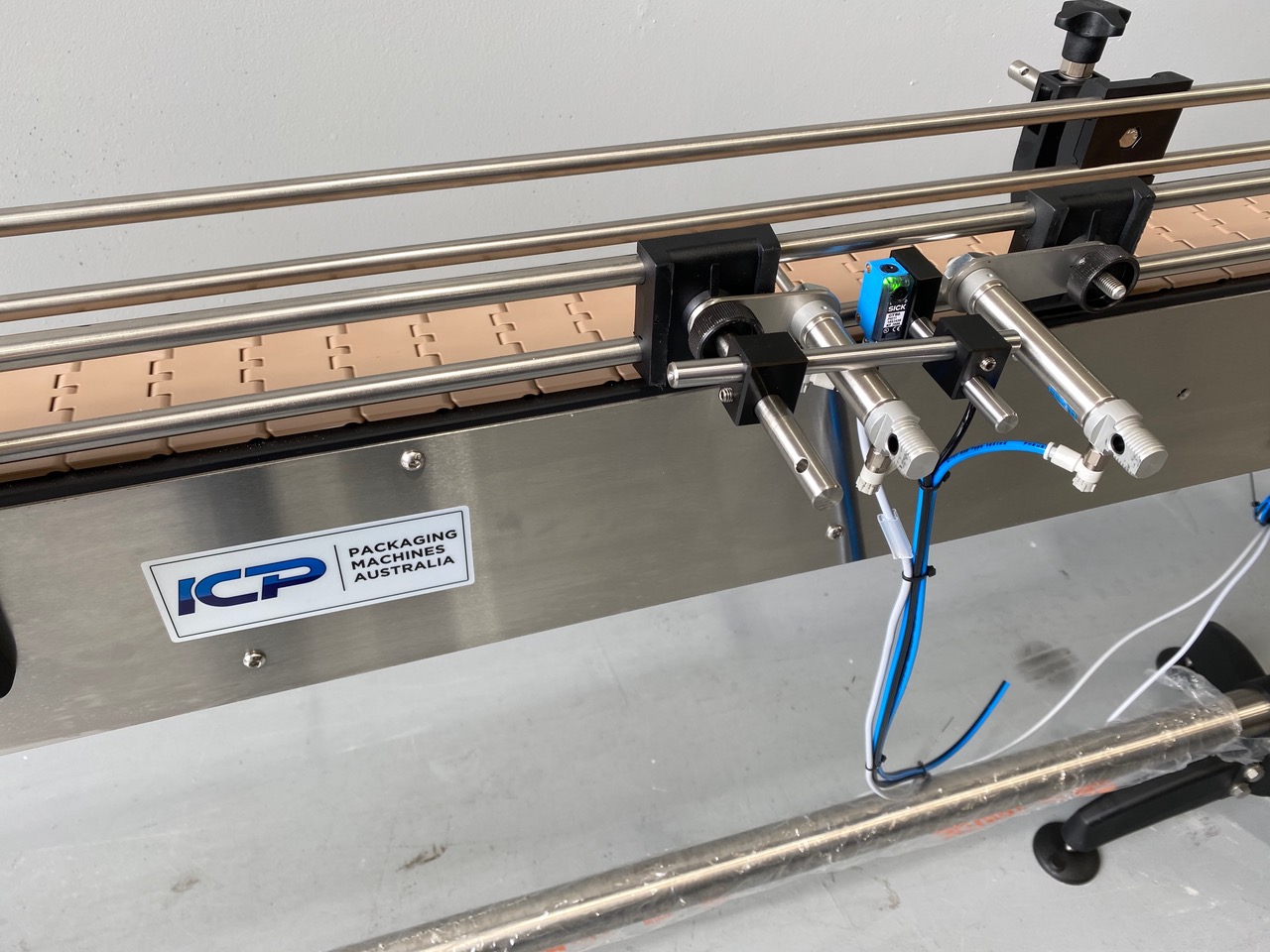

- The front sensor checks the stop gate. It detects the lead container held at the front gate.
- The second sensor checks the queue. It’s positioned farther back along the conveyor so it detects a container once the queue has backed up beneath all the filling nozzles.
- The controller confirms the containers are in position. The programmable logic relay (PLR) requires both detection signals to stay active for a set time, for example one second. A container that simply passes the second sensor clears it before the delay expires. A brief contact with a mechanical air whisker can trigger a fill signal, while the programmed delay helps prevent these false starts and the spills they can cause.
- The box starts the fill cycle. Once both sensors meet the timing requirement, the PLR switches a solenoid valve that sends the pneumatic start signal to the filler.
Choose sensors to suit your containers

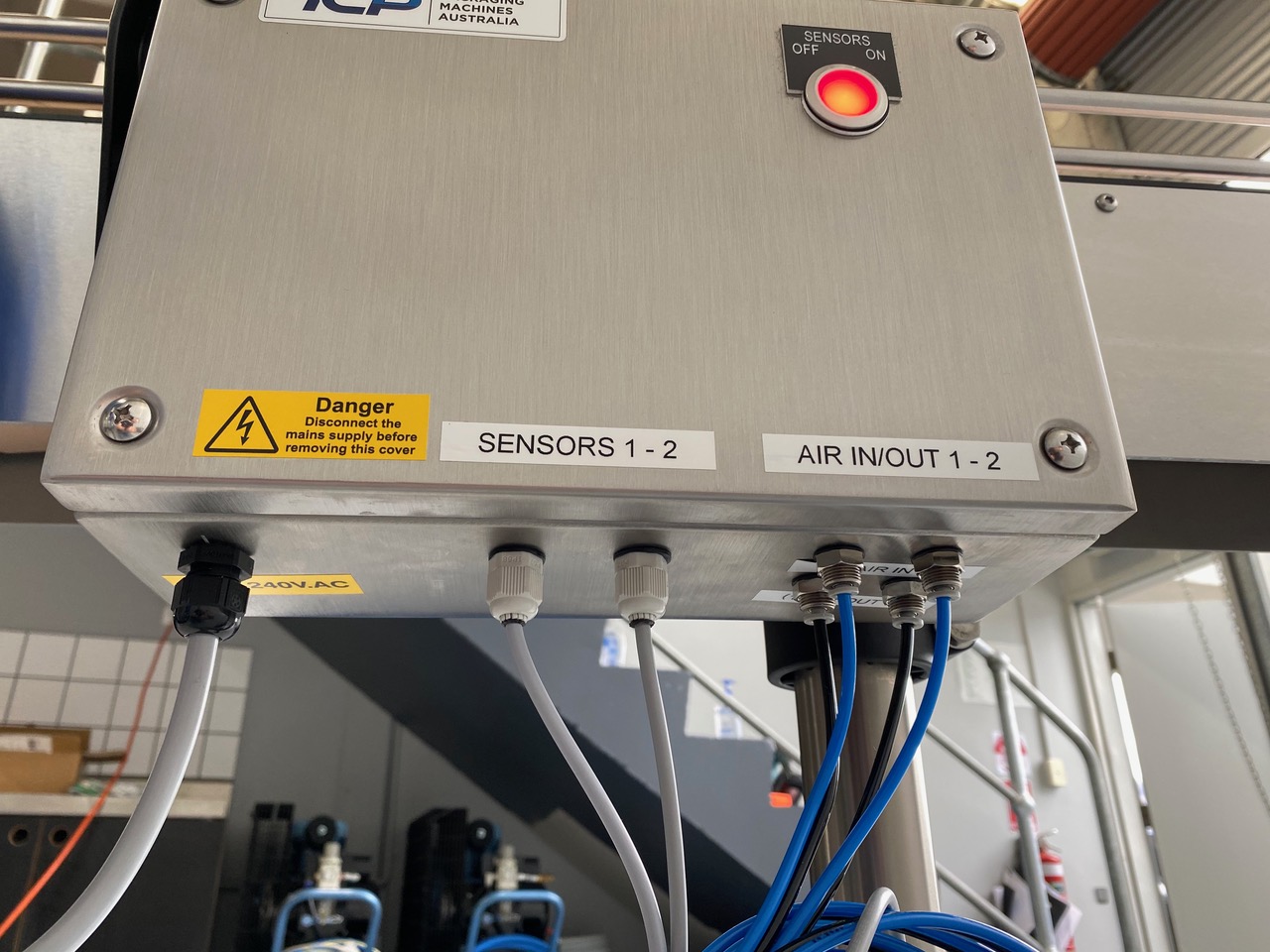

Use a sensor suited to your application, such as a clear-object sensor for transparent bottles or jars. The ICP Sensor Box uses industry-standard M12 connections, so you can source replacements from different brands and suppliers. If a sensor fails or your usual supplier is out of stock, you can fit an alternative with a compatible M12 pinout, supply voltage and output type. That flexibility can help get the line running sooner.
Retrofit an ASSET or other pneumatic automatic filler
The ICP Sensor Box is designed for automatic filling machines that accept an external pneumatic start signal. It lets you keep the existing pneumatic fill controls and change how containers are detected. Depending on your containers and conveyor layout, we can help select compatible sensors, mounts and accessories for the retrofit.
Send us your machine make and model, photos of the current whisker and conveyor mounts, and the containers you run. We’ll help confirm the sensor configuration and parts you need.
View conveyor gates, Kuhnke whisker valves and mounting options.
Fits these machines
- ICP-M5 twin head 5 litre filler
- Rentafill Multi filler
- Asset AV-3 Twin filler
- ICP-M2RV twin head filler
- Asset AV-5 filler
- Asset AMF-4 filler
- Asset ACC-1 auto capper
Not sure it’s the right part? Send us your machine model and a photo of the part, and we’ll confirm the fit. Call our Sydney team on 02 9987 1871.
