Conveyor Gates and Sensors

Air whisker sensors, electric sensors, the sensor rail, and finger, long, short and flat gates for automatic filling and capping lines.

Hire rates on application

Tell us a little about your project and how long you'll need the equipment. We'll get back to you with availability and hire rates.

Prefer to talk? Call us on 02 9987 1871

SKU: HIRE-GATES-SENSORS Category:

Conveyor Gates and Sensors – For Automatic Fillers and Cappers

On an automatic filling or capping line, sensors tell the machine when a container has arrived, and gates hold the container in position under the filler or control its release into the capper. Here are the sensor and gate options we use on ICP and Asset Packaging automatic machines.

Sensors

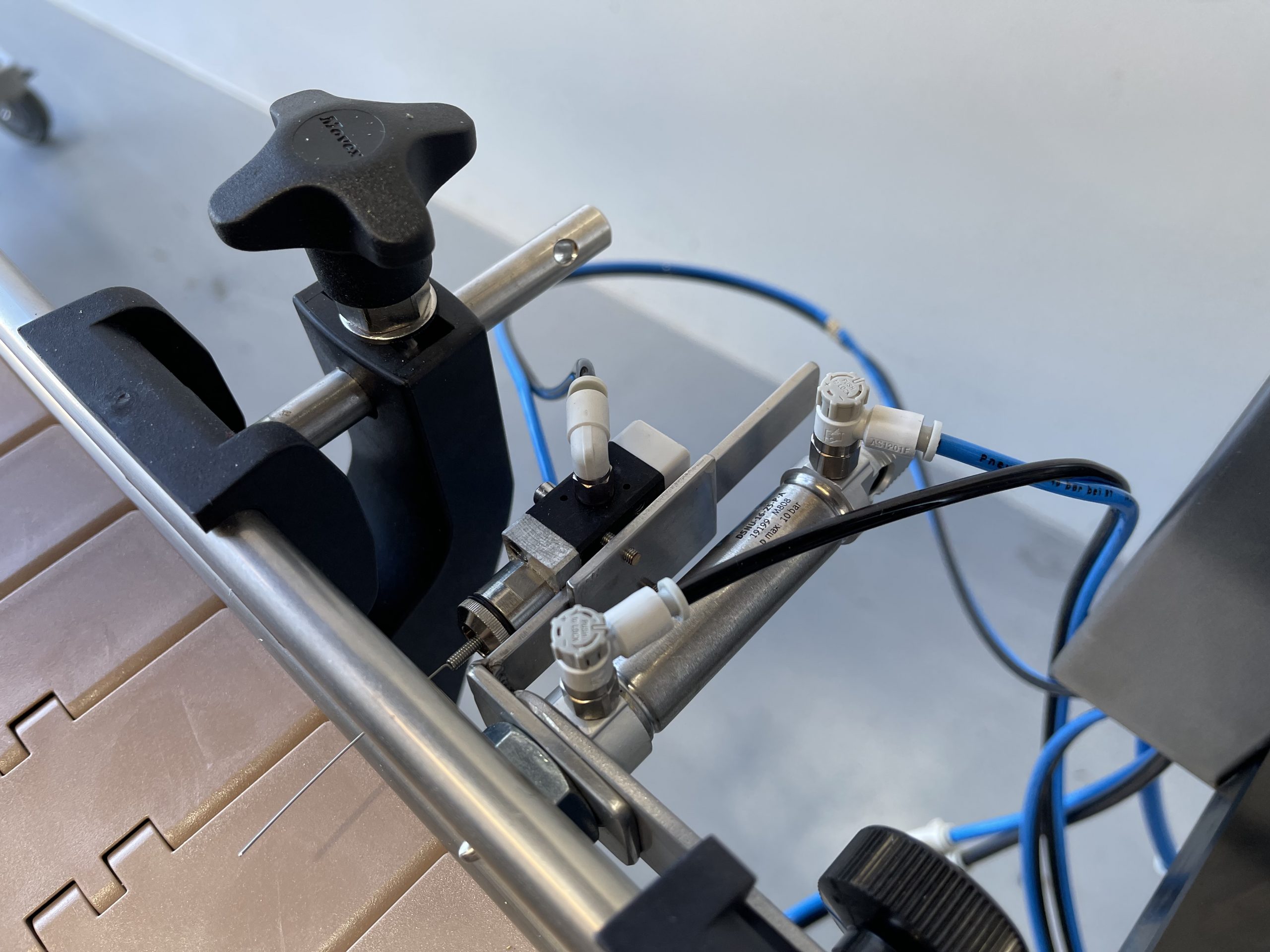

Air whisker sensor on a conveyor guide rail

Air whisker sensors

The traditional pneumatic sensor used on many Asset and ICP machines. A passing container deflects a wire whisker, which operates a pneumatic valve and sends an air signal to the machine.

  • Fully pneumatic, no electrics
  • Simple and reliable on most containers
  • Best with containers heavy enough to move the whisker

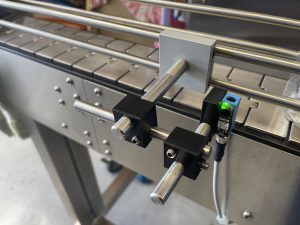

Electric container detection sensors mounted on the conveyor

Electric sensors

Non-contact electric sensors detect each container without touching it, so lightweight or unusually shaped containers don’t catch or fail to trigger the machine.

  • Non-contact container detection
  • Suits lightweight and awkward containers
  • No whisker to adjust or replace

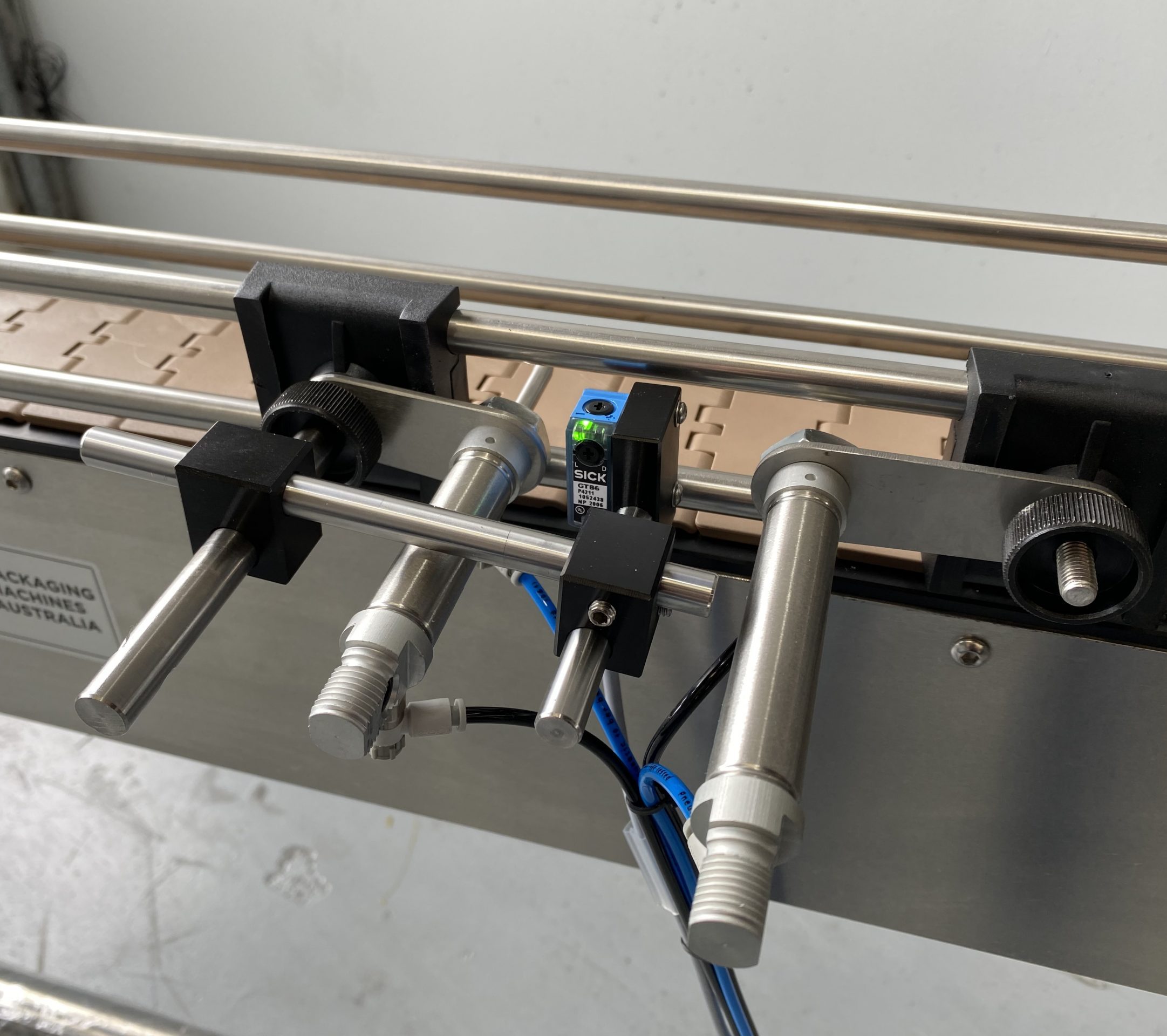

Sensor rail with a gate and sensor on adjustable clamps

Sensor rail

The sensor rail runs along the conveyor and carries the sensors and gates on adjustable guide rail clamps, so each one can be positioned exactly where your containers need it and moved quickly for a changeover.

  • Adjustable mounting for sensors and gates
  • Quick to reposition between container sizes
  • Solid alloy guide rail clamps

Gates

The right gate depends on your container size and shape, the conveyor rails and how the machine indexes containers.

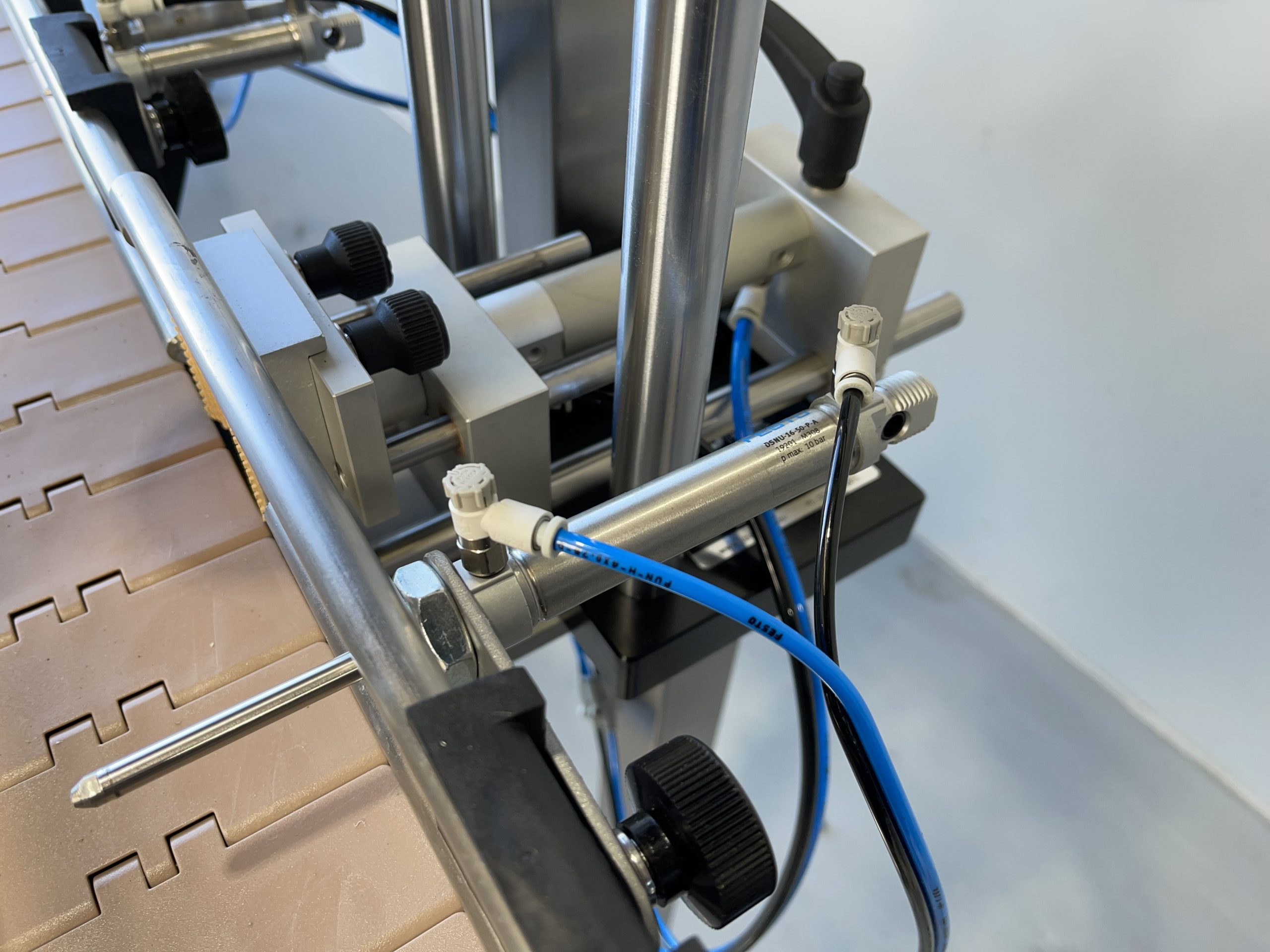

ICP finger gates on a conveyor

Finger gates

Fingers reach in between containers to hold them back. Ideal for changeover set-ups where the gate needs to suit the container.

ICP long conveyor gate holding back containers

Long and short gates

Long gates hold back a row of containers while the machine cycles, for example under a multi head filler. Short gates suit smaller set-ups and single containers.

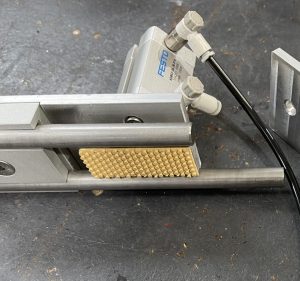

ICP flat gates with grip pads

Flat gates

Flat gates have a flat pad that presses evenly against the face of the container, for containers that need a gentle, even hold. They suit ICP conveyors.

See also filling machine nozzles and filling machine hoppers.

Call our Sydney team on 02 9987 1871.

Frequently Asked Questions

Common questions about conveyor gates and sensors.

What do conveyor gates do?

They hold containers in position under an automatic filler, or control their release into a capper, so each container is in the right place for each cycle.

What is an air whisker sensor?

A wire whisker that a passing container deflects. It operates a pneumatic valve that sends an air signal to the machine.

Why use an electric sensor instead of a whisker?

Electric sensors detect containers without touching them, so lightweight or awkward containers don’t catch on the whisker or fail to trigger the machine.

What is the sensor rail?

A rail along the conveyor that carries the sensors and gates on adjustable clamps, so they can be positioned for each container and moved quickly at changeover.

Which gate do I need?

It depends on your container size and shape, the conveyor and how the machine indexes containers. Send us the details and we’ll match the gate.
