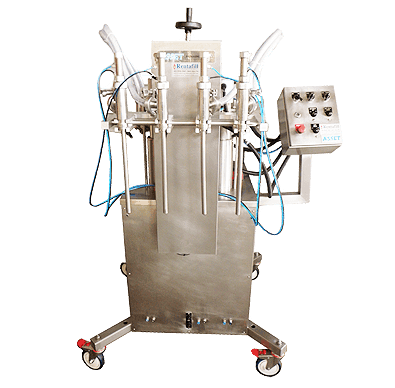

ASSET AMF-4 Four Head Auto Filler 2.55ml to 1.25 Litre

A quad-head filler to stop downtime in its tracks.

The ASSET AMF-4 is a heavy-duty liquid-filling machine suitable for liquids, pastes, and creams from 2.5ml to 1.25 litres. Featuring a quad-head for ultimate efficiency, the AMF-4 can even automate the handling of products with soft and suspended solids.



Hire rates on application

Tell us a little about your project and how long you'll need the equipment. We'll get back to you with availability and hire rates.

Enquire about this product

Prefer to talk? Call us on 02 9987 1871

Category:

The AMF-4 is a simple filling machine designed to operate over a running conveyor belt. It features diving nozzles to minimise foaming and comes equipped with a bottle-gating system and bottle-sensing switches.

This high-quality, heavy-duty machine is constructed from high-grade 316 stainless steel and Teflon, making it suitable for food and pharmaceutical applications. The filler can handle a wide range of products, from floor tanks to overhead tanks. Plus—its self-priming feature means the AMF-4 doesn’t require any additional pump feed.

Fully adjustable for volume and container, the AMF-4 has a wide range of accessories available, enabling it to fill anywhere from 2.5mL to 1.25 litres.

  • Fully pneumatic and flameproof.
  • All contact parts are in 316 stainless steel and Teflon, making it suitable for food or pharmaceutical products.
  • Lockable castor wheels and/or stainless-steel floor levelling jacks.
  • Bottom-up fill nozzles.
  • Can be fitted with a wide range of nozzles to suit different products.
  • Easy dismantling for cleaning by hand – no tools required.
  • Highly accurate filling ± 0.5% or better.
  • Easy operation and adjustments.
  • Dimensions: w x d x h (mm) 1000 x 1400 x 1700.
  • Weight Approx. 160kg.
  • Air pressure required 600Kpa or 0.6Mpa.
  • Air consumption approx. 10 CFM
  • Product piston fitted with O-ring energised Teflon/HDPE glide ring seal.
  • Quick connect tri-clover product inlet/outlet fittings.
  • Individually adjustable fill and recharge speed.
  • Fill rate of 20 – 50 per min (user and product dependant).
  • Fill accuracy ± 0.5% or better.
  • Can filling products up to 60 Deg C
  • Fully pneumatic – flameproof design.
  • Various inlet connections from 1″- 3″ inch.
  • Range of standard nozzles from 5 – 25mm.
  • Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzle.
  • Additional sizes of interchangeable product cylinder and piston assemblies 50,125, 250, 500 & 1250ml.
  • Optional IRD, ultrasonic or retro-reflective sensor-box in place of air whisker switch for bottle detection.
