ICP-AC1 Automatic Capping Machine – Australian Made

The ICP-AC1 is an Australian-made automatic capping machine that mounts on your conveyor and tightens each screw cap to a set torque, with no operator needed. Fully pneumatic with no electrics, with a 12-month warranty. Contact us for pricing.

Price on application

Pricing depends on how the machine is configured. Tell us a little about your application and we'll come back with a quote.

Prefer to talk? Call us on 02 9987 1871

Finance available on all new machines

Spread the cost with flexible equipment finance through our partner Rangeland Capital, an Australian finance specialist. Just tick "I'm interested in finance" on your enquiry. Learn more about finance

ICP-AC1 Auto Capper – Australian-Made Automatic Capping Machine

The ICP-AC1 is our Australian-made automatic capping machine for screw caps. It mounts onto your conveyor and tightens each cap to a set torque, with no operator needed. It is fully pneumatic with no electrics, and adjusts for containers from 0 to 450 mm tall. It is designed and built in Sydney, for our own rental fleet first.

Want to try it on your line first? The ICP-AC1 is also available to hire. See ICP-AC1 hire.

ICP-AC1 12 month warranty badge

Built to last, backed for longer

12-month warranty on every new ICP-AC1

Plus free lifetime support from the Australian team who designed and build it. T&Cs apply.

Australian Made and Owned logo

Australian Made and Owned

Designed and built in Sydney by ICP Packaging Machines Australia.

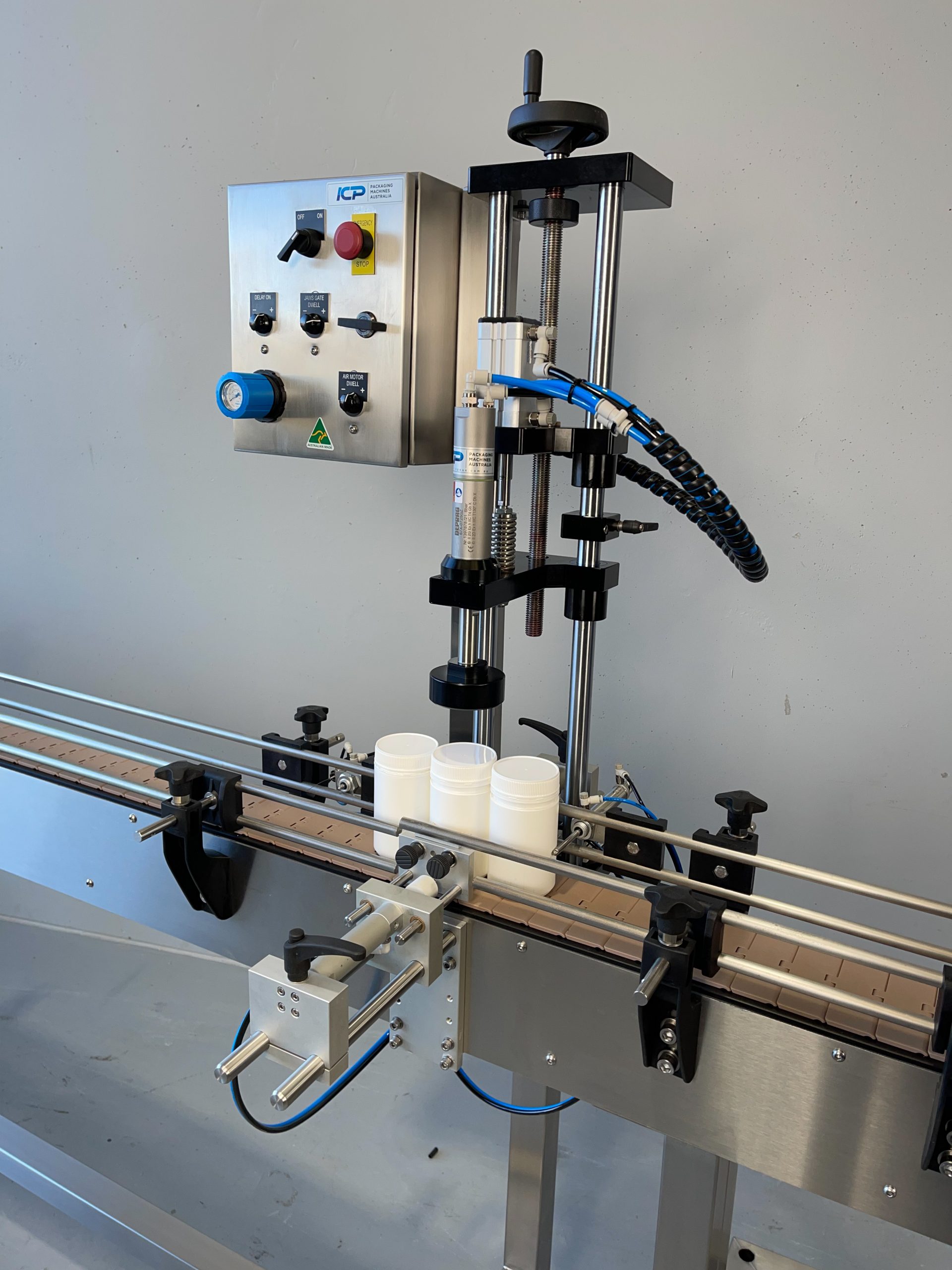

ICP-AC1 automatic capping machine on a conveyor

How it works on your line

The ICP-AC1 mounts onto a running conveyor. When a container arrives, the gates stop it and the clamping jaws hold it steady. The tightening head lowers onto the cap and the air motor tightens it to the set torque, then the jaws release and the container moves on. Independent timers control the delay and dwell of both the chuck and the jaws, so you can fine-tune each step. No operator is needed.

Torque you can trust: stall-torque air motor

Many cappers tighten for a set time, which can leave caps loose or over-tight. ICP cappers use a German-made Deprag air motor that stalls at the torque you set. Once the cap reaches that torque, the motor stops turning, so every cap gets the same tightness, cap after cap. The torque is infinitely adjustable.

New 2026 floating motor design

On most cappers, the chuck shaft is bolted straight to the air motor, so every cap pushes up and sideways on the motor bearings. On ICP cappers, the chuck shaft runs in its own precision bearings and is separate from the motor. The motor only does what it is designed to do: turn. That gives more consistent, repeatable torque, better cap integrity and much longer motor life.

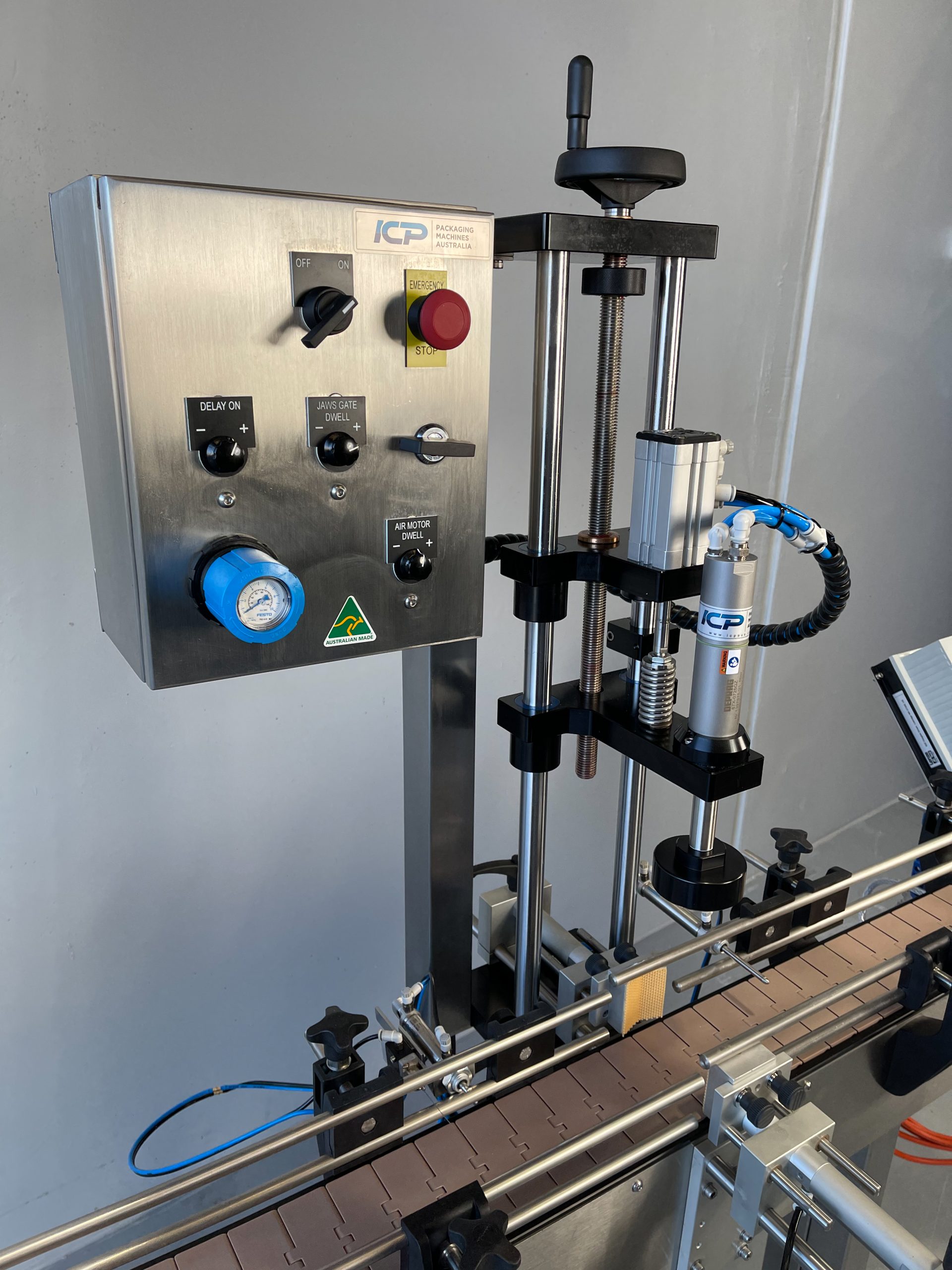

ICP-AC1 auto capper with German air torque motor and timer controls
German air torque motor and pneumatic timer controls.

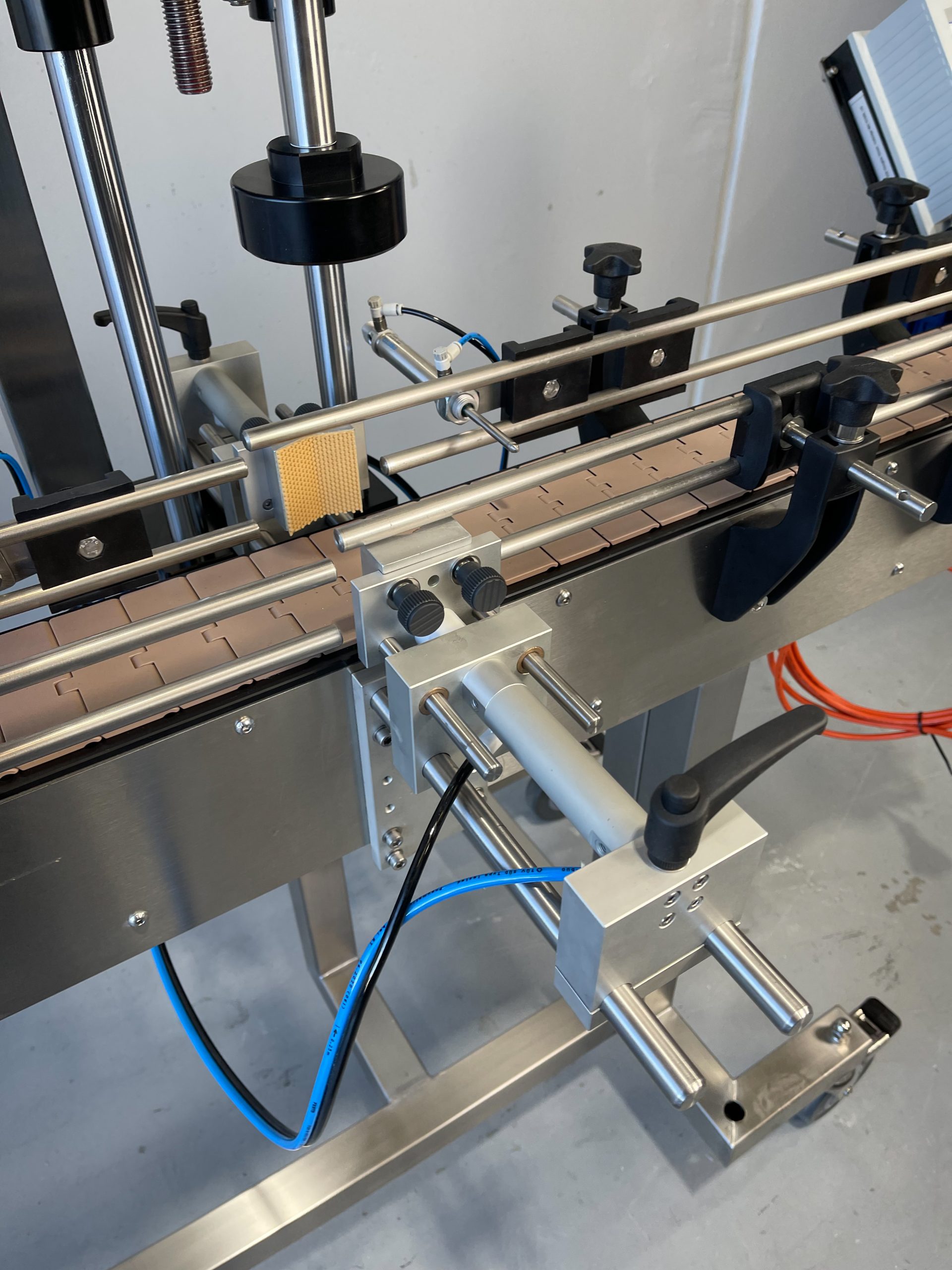

ICP-AC1 container gates and clamping jaws on the conveyor
Container gates and clamping jaws hold each container while it is capped.

Why choose the ICP-AC1

  • Consistent torque on every cap, set by the air motor’s stall point, not a timer.
  • Fully pneumatic with no electrics, so it suits flammable products.
  • Fine control with independent timers for the chuck and the jaws.
  • Quick changeover between container and cap sizes.
  • Australian made with local spare parts and support.

Specifications

Type Automatic inline screw capper, mounts on a running conveyor
Torque Air motor stalls at the set torque, infinitely adjustable
Air motor German-made Deprag air torque motor, with inline oiler for long motor life
Motor design 2026 floating motor design: chuck shaft supported in its own precision bearings
Operation Fully pneumatic, with independent pneumatic timers for the chuck and the clamping jaws. No electrics.
Container handling Container gates, air whisker switch, and clamping jaws with interchangeable pads
Chucks 35 mm to 125 mm, plus custom chucks
Container height 0 to 450 mm, set with a handwheel and locking ring
Adjustments Descending pressure, motor torque and stall timing
Guides Low-maintenance linear bushings and shafts
Air supply 600 kPa (87 psi)
Dimensions (w x d x h) 500 x 650 x 870 mm
Weight About 33 kg
Conveyor Not included, available separately

Options

  • Extra high torque air motor
  • Tightening chucks from 35 mm to 125 mm, plus custom chucks
  • Range of clamping jaws
  • Trigger head attachment for trigger sprays and pump caps
  • Chuck liners in polyurethane (65 duro) or silicone (40 and 55 duro)
  • IRD (photoelectric eye) sensor upgrade
  • ICP modular slat conveyor on a castor trolley base
  • Capper leg for mounting to your own conveyor

Other cappers

ICP-AC1-PLC

Automatic capper with PLC touchscreen control and saved settings.

ICP-C1

Bench top capper for smaller runs.

ICP-M2RV filler

Twin head automatic filler to run on the same line.

Call the people who designed and build it on 02 9987 1871.

Run it as a complete line. The ICP-AC1 is part of our single head 1 litre filling line, single head 5 litre filling line and 2 head filling and capping line, with conveyor, sorting table and accumulation table, set up and ready to run. Hire or buy the full line. See all full production lines.

Frequently Asked Questions

Common questions about the ICP-AC1 automatic capping machine.

What is an automatic capping machine?

An automatic capping machine tightens screw caps on containers as they travel along a conveyor, with no operator needed. The ICP-AC1 stops each container, holds it, tightens the cap to a set torque and releases it.

How does it set the torque?

It uses a German-made air motor that stalls at the torque you set, so every cap is tightened the same, without the over- or under-tightening of timer-only cappers.

Does it come with a conveyor?

No. The ICP-AC1 mounts onto a running conveyor, supplied separately. We can supply an ICP modular slat conveyor, or a capper leg to mount it to your own conveyor.

Does it need power?

No. The ICP-AC1 is fully pneumatic with no electrics, so it only needs compressed air at 600 kPa (87 psi). That also makes it suitable for flammable products.

How fast is it?

Speed depends on your caps, containers, product and line, so we don’t quote a number. The capper is rarely the limit. The best way to know is to hire one and try it with your own caps.

What is the difference between the ICP-AC1 and the ICP-AC1-PLC?

The ICP-AC1 is fully pneumatic with timer controls. The ICP-AC1-PLC adds a PLC touchscreen with saved settings and a photoelectric sensor, and runs on 240 V power.

Can I hire an ICP-AC1 before I buy?

Yes. The ICP-AC1 is available to hire, so you can try it on your own caps and line.

What warranty does it come with?

A 12-month warranty (T&Cs apply), plus free lifetime support from the Australian team who designed and build it.
