ASSET AC-1 Auto Capper

For when one size doesn’t fit all.

Australian designed and built, the ASSET AC-1 Auto Capper promises capping rates of up to 60 units per minute. This automatic version of the ASSET C-1 Bench Top Capper is designed to mount onto a running conveyor belt and can handle a wide range of caps and push on lids.

Hire rates on application

Tell us a little about your project and how long you'll need the equipment. We'll get back to you with availability and hire rates.

Enquire about this product

Prefer to talk? Call us on 02 9987 1871

Category:

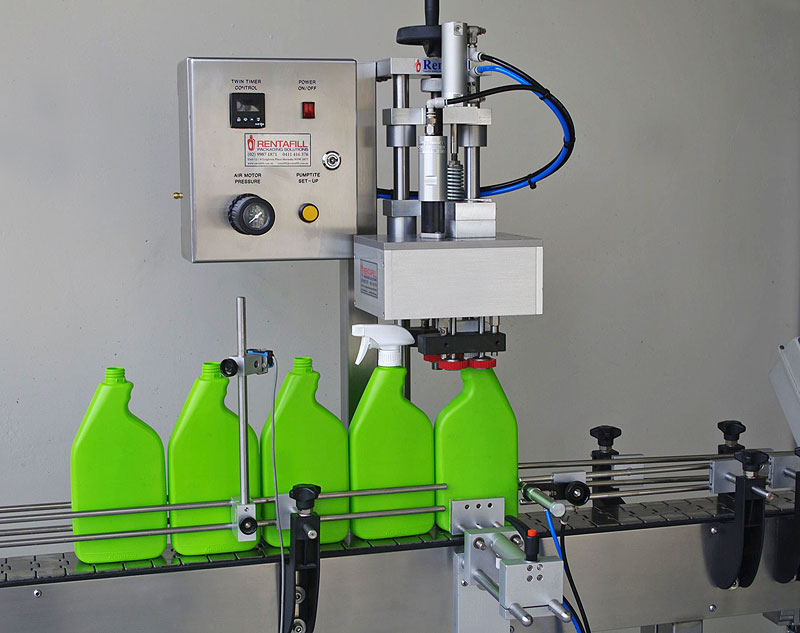

The AC-1 is a highly customisable capping machine designed to operate over a running conveyor belt. It can handle a wide variety of cap types and sizes, from 10mm to 100mm.

We offer both a fully pneumatic and flameproof model or an electric timer-controlled model. Both options have a stainless-steel control box, a bottle clamping and gating system, no-bottle, no-cap protection, and feature fully adjustable speed and torque settings.

Rentafill can supply the AC-1 in its free-standing mode to attach to your conveyor or provide the capper mounted on an ICP or ASSET conveyor for your convenience.

  • Easy adjustment for different container sizes.
  • Wide variety of chuck sizes to most container types.
  • Highly accurate torque settings.
  • Compatible with Pumptite head for trigger pack & pump tops.
  • Low maintenance operation.

Short

  • Weight: 33kg approx.
  • Required Air Pressure: 600 (Kpa)/87 (psi)
  • Dimensions: w x d x h (mm) 500 x 650 x 870
  • Capping rates up to 60 units per minute

Expanded

  • Container height adjustment from 0-450mm tall.
  • Full adjustment of the descending pressure.
  • Fully adjustable motor torque.
  • Adjustable stall timing.
  • Inline oiler for extended motor life.
  • Cap diameter 10mm – 100mm.
  • Electric/pneumatic control unit or fully pneumatic-flame proof version available.
  • Can be supplied on a conveyor or mounted to customers’ existing conveyor.
