ICP Trigger Pack Head

Price on quote

The ICP-C1 Trigger capper is designed to tighten trigger, spray & pump caps from 10-45mm.

Manufactured in Australia by ICP Packaging Machines Australia.

Add to Quote

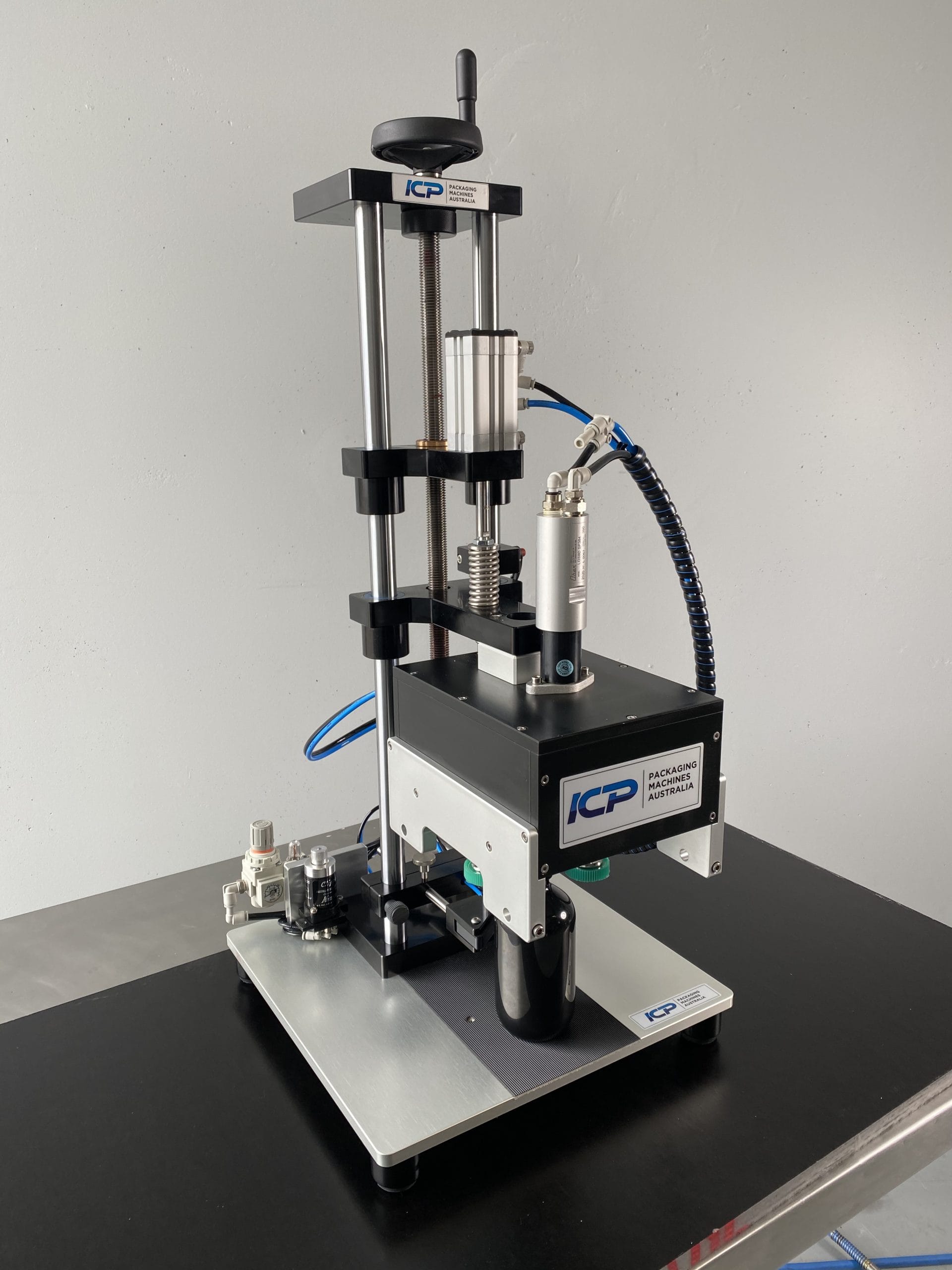

The ICP-Trigger capper is manufactured in Sydney by ICP Packaging Machines Australia. This heavy-duty capping head is designed to be attached on a full production line as an automatic capper attachment. Built to withstand full production operation, it can achieve capping rates of up to 60 units per minute.

The Trigger Pack attachment tightens various trigger pack spray bottles, pump tops and many other types of closures.

It’s simple and easy to attach to the ICP-C1 bench model or ICP-AC1 automatic capping machines (ask us about compatibility with other capping machine brands). Changeover is easy—you can remove the standard capping motor with just two screws and attaching the ICP Trigger Pack Head.

  • Fully Pneumatic operation.
  • Compatible with both ICP-C1 & ICP-AC1 cappers.
  • Sturdy, low maintenance construction.
  • Easy setup and operation.
  • High-quality German-made air motor drive.
  • Weight: Approx. 8.3kg
  • Required Air Pressure: 600 (Kpa) 87 (psi)
  • Dimensions w x d x h (mm) 200 x 250 x 400 inc motor
  • Suitable for capsizes from 10mm to 45mm
  • Range of polyurethane wheels to suit most containers.
  • Custom container guides.
