ICP Compact PSO Nozzle

High-quality 316 stainless Positive Shut-Off (PSO) nozzle – Custom built for the ICP-1 benchtop filling machines.

$955.00

7 in stock

High-quality 316 stainless Positive Shut-Off (PSO) nozzle – Custom built for the ICP-1 benchtop filling machines.

Details

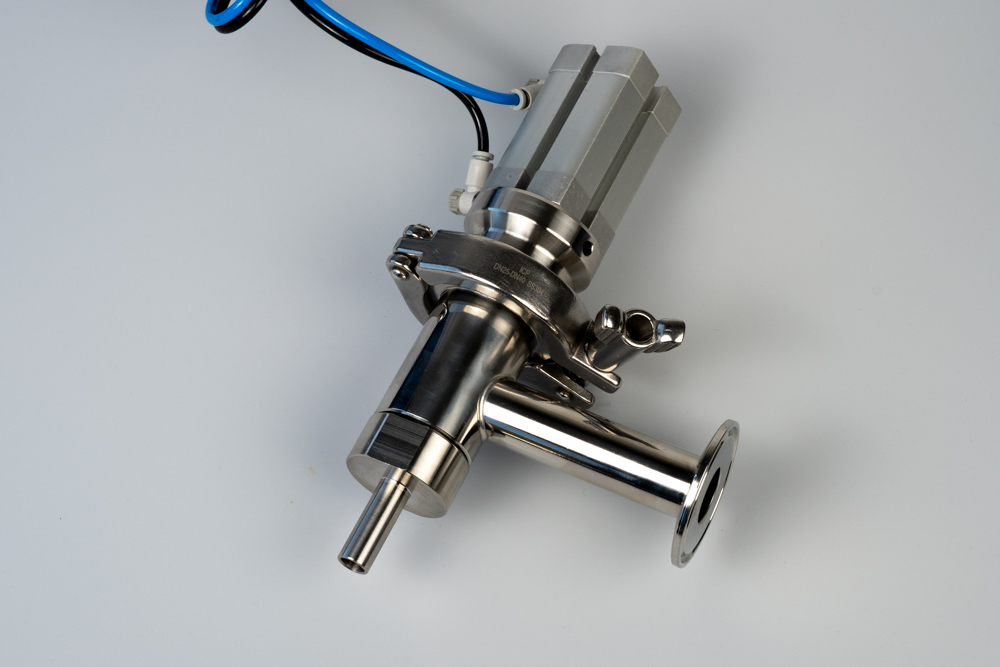

316 Stainless Steel Positive Shut-Off Nozzle – Custom Built for ICP-1 Benchtop Fillers

Premium quality 316 stainless steel positive shut-off nozzle designed and built specifically for the ICP-1 Benchtop Filling Machine. Ideal for applications requiring accurate fills, clean cut-off, and drip-free performance.

The nozzle can be mounted directly to the valve body or fitted to an optional gooseneck mount, allowing greater flexibility for height adjustment and container clearance.

Positive Shut-Off Operation

This nozzle uses a plug-type positive sealing system located inside the nozzle body above the actual nozzle tip. When closed, the plug completely seals the top of the nozzle, creating a true positive shut-off that holds product tension within the nozzle and prevents dripping between fills.

This design provides clean cut-off, improved filling accuracy, and consistent repeatable results—ideal for products where presentation, cleanliness, and dosing precision are critical.

Pneumatic Cylinder Control

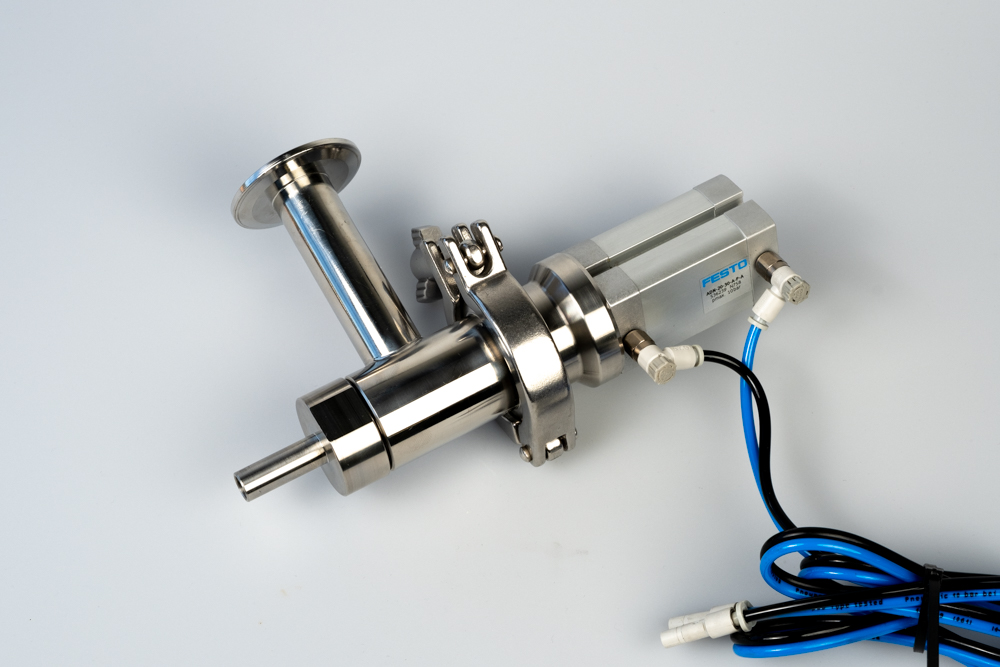

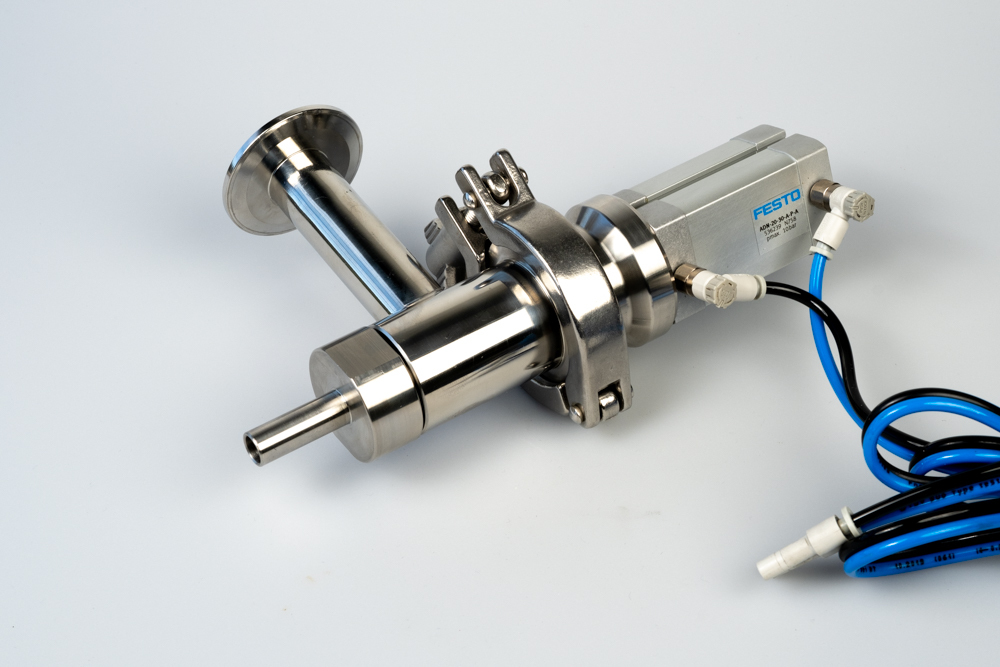

Supplied standard with quality Festo or SMC pneumatic cylinders, complete with flow controls on both the extend and retract ports. This allows precise adjustment of the nozzle opening and closing speeds, giving smoother operation and better control over different product types.

Premium Materials & Seals

  • Main components manufactured from 316 stainless steel
  • Tri-clamp manufactured from 304 stainless steel
  • Standard seals include Viton O-rings
  • Silicone or polyurethane U-cup seals available depending on product suitability

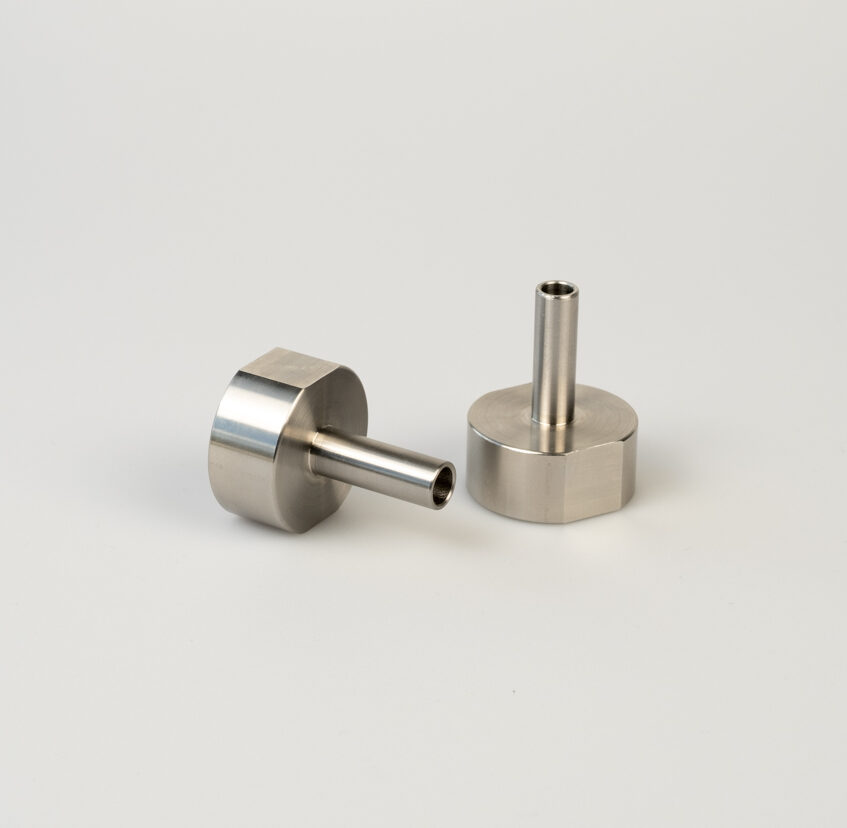

Custom Nozzle Tip Sizes Available

Nozzle tips can be supplied in sizes from:

  • 4mm ID to 20mm ID
  • 5.5mm OD to 22.4mm OD

Ideal For Filling:

  • Oils
  • Sauces
  • Creams
  • Cosmetics
  • Chemicals
  • Food products
  • Pharmaceutical liquids
  • Low-drip or precision filling applications

Built for Australian industry by ICP Packaging Machines Australia, these nozzles are designed for durability, hygiene, and reliable long-term performance.

Which nozzle do I need?

Your product Nozzle
Thin liquids that drip between fills Inward opening PSO nozzle
Thin liquids that foam Outward opening PSO nozzle
Small, accurate fills on the ICP-1 Compact PSO nozzle (this page)
Small fills of oils, fragrances and concentrates 6 mm pinch valve nozzle
Creams and stringy products Suck-back nozzle
Jams, butters, thick creams and soups Plug nozzle
Free-flowing products, simple set-ups Standard nozzles

Not sure? Tell us your product and container, and we’ll recommend the right nozzle. See the full filling machine nozzle guide.

Options

Nozzle tips available in a range of sizes from 4mm to 20mm ID (5.5mm to 22.4mm OD)

Fits these machines

Not sure it’s the right part? Send us your machine model and a photo of the part, and we’ll confirm the fit. Call our Sydney team on 02 9987 1871.
