ICP-1 BUF – Liquid Filling Machine

The ICP-1 BUF is our Australian-made ICP-1 benchtop liquid filling machine with a bottom-up fill attachment, built for foaming products such as detergents and shampoos. Fills 3 ml to 1.3 litres, with a 2-year warranty. Also available to hire.

Price on application

Pricing depends on how the machine is configured. Tell us a little about your application and we'll come back with a quote.

Prefer to talk? Call us on 02 9987 1871

Finance available on all new machines

Spread the cost with flexible equipment finance through our partner Rangeland Capital, an Australian finance specialist. Just tick "I'm interested in finance" on your enquiry. Learn more about finance

SKU: NEW-ICP-1-BUF Category: Brand:

ICP-1 BUF Bottom-Up Filling Machine – for Foaming Liquids

The ICP-1 BUF is our Australian-made ICP-1 benchtop piston filler fitted with a bottom-up fill (BUF) attachment. It is built for products that foam, such as detergents, shampoos, hand wash, sanitiser and cleaning liquids. It still fills everything the standard ICP-1 does, from thin liquids to thick creams, from about 3 ml to 1.3 litres.

Want to try it on your product first? The ICP-1 BUF is also available to hire. See ICP-1 BUF hire.

ICP-1 2 year warranty badge

Built to last, backed for longer

2-year warranty on every new ICP-1 BUF

Plus free lifetime support from the Australian team who designed and build it.

ICP-1 BUF bottom-up filling machine filling a bottle, with the product fed by an inlet hose

How bottom-up filling works

The BUF (bottom-up fill) nozzle lowers into the container and starts filling at the bottom. As the product rises, the nozzle rises with it, staying just under the surface. That stops the splashing and air that make foaming products overflow, so you get clean, full containers of detergent, shampoo or hand wash.

The same ICP-1 underneath

The BUF is the same machine as the ICP-1 benchtop liquid filling machine, designed for our own rental fleet. See how the ICP-1 compares with low-cost imports.

  • Digital scale: scan the QR code on the machine to open our calculator on your phone, enter your fill volume, dial the number and return to any previous volume without recalibrating.
  • Festo DVRS-40 rotary valve with a custom 304 stainless shaft.
  • Bosch Rexroth hardened shafts in USA-made bushings that don’t rust or score.
  • Tool-free cleaning: every product-contact part comes off by hand.
  • Hygienic design: 316 stainless wetted parts, PETP valve and Viton seals. Engineered to meet FSANZ requirements.
  • Fully pneumatic and flameproof, with Festo and SMC components.
  • Footswitch included for hands-free filling.
Scan the QR code on the ICP filler to open the fill setting calculator on your phone, then turn the handwheel to the number it gives you

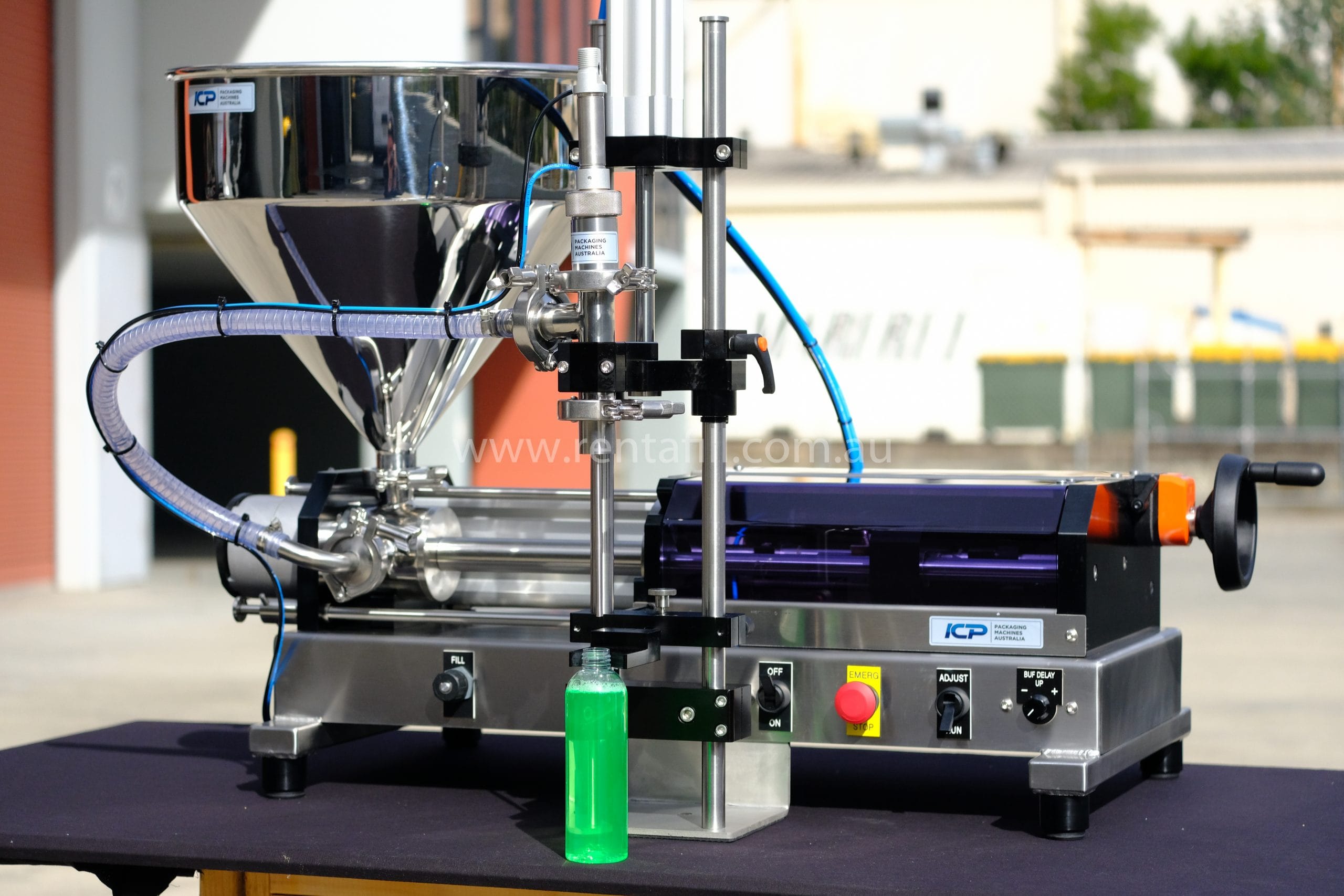

ICP-1 BUF bottom-up filling machine with stainless hopper and bottom-up fill nozzle filling a bottle
The ICP-1 BUF with its stainless hopper and bottom-up fill nozzle.

Specifications

Fill range About 3 ml to 1.3 litres
Product cylinders 30, 80, 140, 320, 520 and 1300 ml, each adjustable from 10% to 100%
Accuracy Up to ±0.5%, depending on cylinder and fill size
Fill rate About 8 to 12 per minute as a guide (filling 200 ml of water into open containers). Your speed depends on your product, containers and operators. Read why it’s only a guide.
Filling Bottom-up fill (BUF) nozzle attachment
Valve Rotary valve with Festo DVRS-40 actuator, or optional spool valve for hot fill up to 95°C
Air supply 600 kPa (87 psi)
Dimensions (w x d x h) 940 x 450 x 300 mm (excluding the BUF attachment)
Weight About 58 kg

Options

  • 316 stainless hoppers from 12 to 48 litres
  • Inlet connections from 1 to 2 inch
  • Standard nozzles from 5 to 25 mm
  • Powered nozzles: ICP Compact PSO (positive shut-off), plug and suck-back
  • Spool valve for hot filling up to 95°C
  • Extra product cylinder and piston assemblies: 30, 80, 140, 320, 520 and 1300 ml
  • Stainless steel trolley with lockable castors

Other versions of the ICP-1

ICP-1

The standard benchtop liquid filling machine, for products that don’t foam.

ICP-1 BUF Auto

Bottom-up filling with automatic operation on a conveyor, using container gates and a sensor.

Download the ICP-1 brochure (PDF), see what you can fill, or call the people who designed and build it on 02 9987 1871.

Frequently Asked Questions

Common questions about the ICP-1 BUF bottom-up filling machine.

What is a bottom-up filling machine?

A bottom-up filling machine fills containers from the bottom. The nozzle starts at the base of the container and rises with the product, which stops foaming, splashing and overflow.

What products is the ICP-1 BUF best for?

Foaming products such as detergents, dishwashing liquid, shampoo, body wash, hand wash, sanitiser and cleaning chemicals. It also fills non-foaming liquids, creams and sauces.

Is the ICP-1 BUF a different machine from the ICP-1?

No. It is the ICP-1 benchtop filler with a bottom-up fill attachment, so it has the same digital scale, Festo rotary valve and tool-free cleaning.

What fill volumes can it do?

About 3 ml to 1.3 litres, using interchangeable cylinders of 30, 80, 140, 320, 520 and 1300 ml.

Can it hot fill?

Yes. With the optional spool valve, it can fill hot products up to 95°C.

Can I hire an ICP-1 BUF?

Yes. The ICP-1 BUF is available to hire, so you can try it on your own product.

What warranty does it come with?

A 2-year warranty, plus free lifetime support from the Australian team who designed and build it.
