Available for hire

RV-1 Filler 2.5ml to 1.25 Litre

RV-1 is an Australian built heavy-duty filling machine.

Capable of filling volumes from 2.5ml – 1.25 litres.

Can be used to fill low viscous fluids through to thick creams.

Hire rates on application

Tell us a little about your project and how long you'll need the equipment. We'll get back to you with availability and hire rates.

Enquire about this product

Prefer to talk? Call us on 02 9987 1871

Category: Tags: , , ,

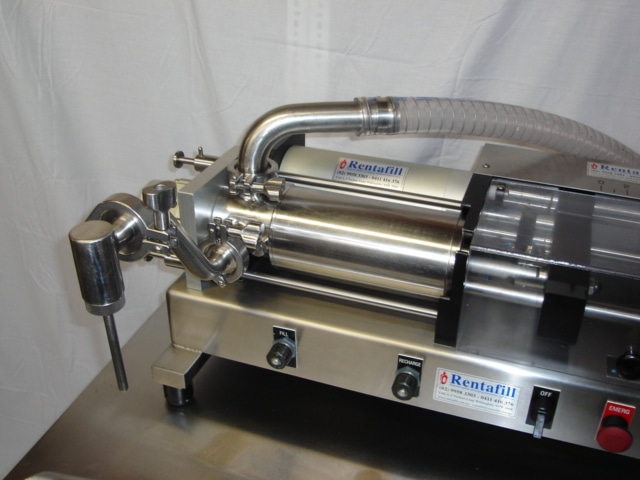

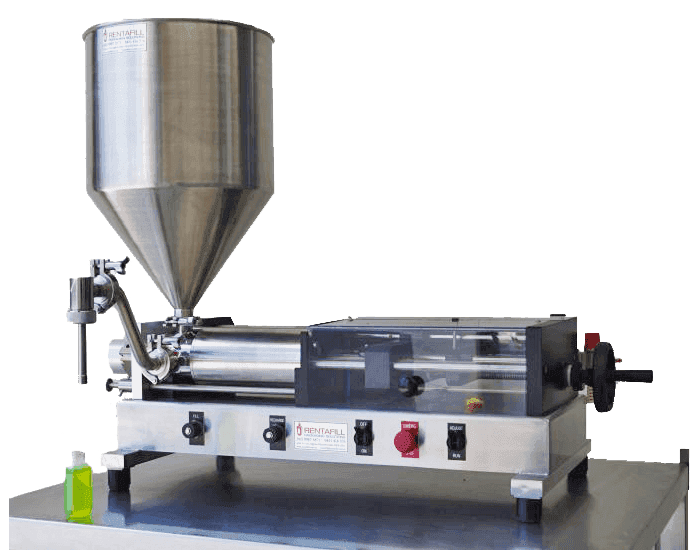

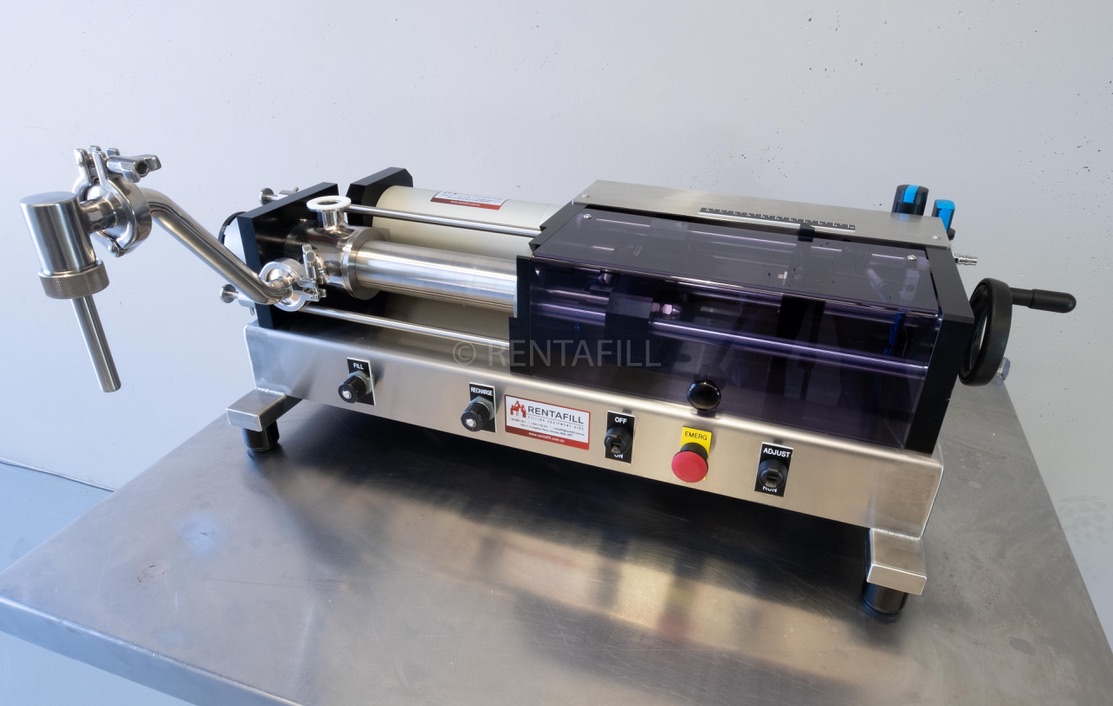

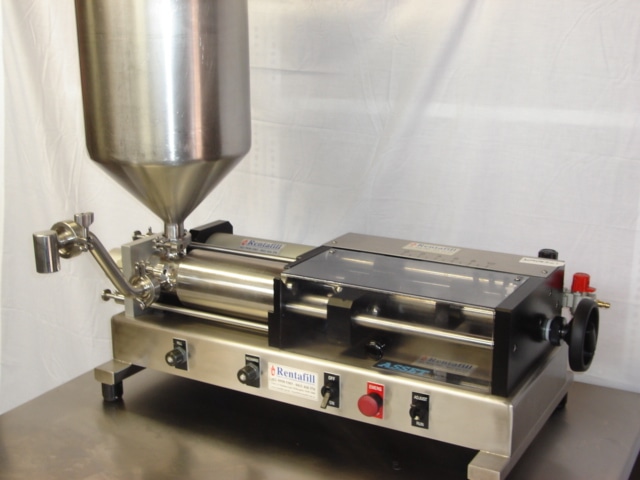

RV-1 is a high-quality, heavy-duty machine built and designed in Australia by Rentafill.

RV-1 will handle almost any wet product, including water, oil, pasta sauces, pastes, shampoo/conditioner, and thick creams. It can be hopper-fed for thick products or fitted with an inlet hose to draw free-flowing products direct from a holding vessel/vat/IBC.

Can handle fill sizes from 2.5ml mL to 1.25 litre (with interchangeable cylinders).

Designed to be highly user-friendly, easy to clean, and robust. Constructed from high grade 316 stainless and PETP suitable for food, industrial and pharmaceutical applications.

RV-1 design allows for all contact parts to be easily removed for cleaning without the need for tools.

RV-1 can also be optioned with various ranges of nozzle attachment, including positive shut off (PSO), plug and suck-back nozzles.

  • All 316 stainless and food grade contact parts.
  • Fast toolless removal of contact parts for cleaning.
  • Fully pneumatic operation – flameproof.
  • Suitable for warm water washdown.
  • High quality Pneumatics from SMC and FESTO.
  • Highly accurate filling ± 0.5% or better.
  • Fully adjustable fill and recharge speed valve controls.
  • Footswitch included for hands-free one-shot cycling.
  • Dimensions w x d x h (mm) 940 x 450 x 300 (inc handwheel).
  • Weight Approx. 40kg.
  • Air Pressure Required (Kpa) 600 (87psi).
  • Fill range of 5ml – 1.25 litre.
  • Product cylinders maximum capacity 50,125,250,500 & 1250ml. Cylinders infinitely adjustable between 10% and 100% of their rated volumes.
  • Product piston fitted with O-ring energised Teflon/HDPE glide ring seal.
  • Quick connect tri-clover product inlet/outlet fittings.
  • PETP Rotary valve system or optional spool valve for use with hot filling products above 60 Deg C.
  • Individually adjustable fill and recharge speed.
  • Fill rate of 10-15 per min (user and product dependant).
  • Fill accuracy ± 0.5% or better.
  • Pneumatic Footswitch for hands-free operation.
  • Available with a range of 316 stainless hoppers from 12L – 48L.
  • Various inlet connections from 1″- 2″ inch.
  • Range of standard nozzles from 5 – 25mm.
  • Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzle.
  • Spool Valve for hot-filling products above 60 deg C (i.e. hot sauces).
  • Additional sizes of interchangeable product cylinder and piston assemblies 25, 50,125, 250, 500 & 1250ml.
