ICP-M5 5 L Twin-Head Automatic Filler for Hire
Short description
Hire an Australian-made twin-head automatic filler for a production run, extra capacity or a trial before buying. The ICP-M5 fills two containers at once, from 500 mL to 5 L per head. Hire rates and availability are on application.
Description tab
Hire the ICP-M5 for your next production run

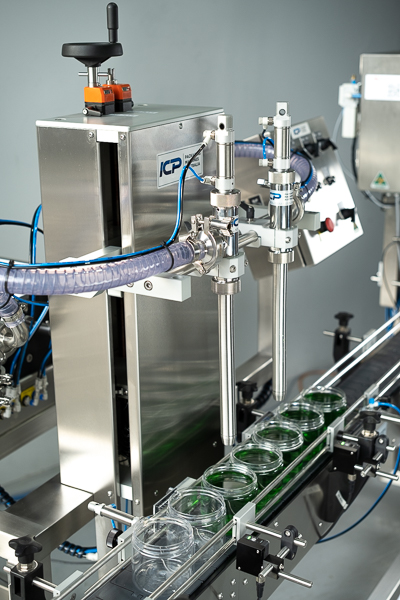

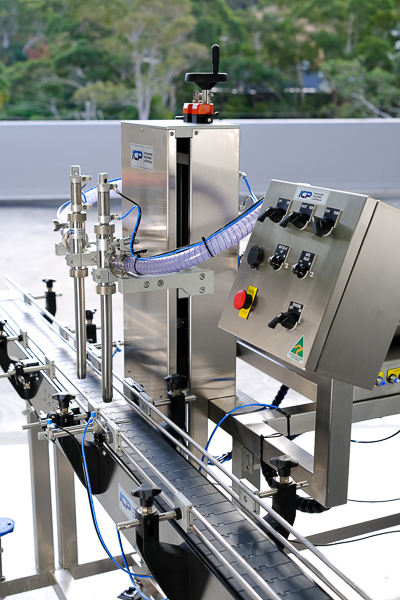

The ICP-M5 is a heavy-duty inline liquid filling machine designed and built in Australia by ICP Packaging Machines Australia. Its two volumetric piston cylinders fill two containers at the same time. Automatic bottom-up filling helps reduce splashing, and the fill and recharge speeds can be adjusted to suit the product.
Hire it for a short production run, to cover a busy period or to test an automatic filling setup with your own product and containers. The ICP-M5 can handle suitable food products such as sauces and oils, as well as chemical products such as detergents and cleaning liquids. Tell us what you’re filling, your fill temperature and container sizes so we can confirm a suitable setup.
Try it before you buy
Hire the ICP-M5 and see how it handles your product and containers on your line. If you’re planning a permanent installation, view the new Australian-made ICP-M5 5 L twin-head automatic filler.
Request a hire quote
Tell us what you’re filling, your target fill volume and output, when you need the machine and how long you expect to hire it. Let us know if you already have a conveyor or need one with the filler. We’ll confirm availability, hire rates and the equipment configuration for your run.
Features tab
- Twin-head filling. Two 5 L piston cylinders fill two containers at once, with an adjustable range of 500 mL to 5 L per head.
- Automatic bottom-up filling. The nozzles fill from low in the container to help control splashing and to limit foaming.
- Spool valve system. Suitable for hot filling up to 95 °C with the appropriate setup.
- Tool-free cleaning. Removable product-contact components include 316 stainless steel and food-grade materials.
- Repeatable setup. Digital counters help operators return to previous fill and nozzle settings. Fill and recharge speeds can be adjusted independently.
- Industrial construction. SMC and Festo pneumatic components and a 304 stainless steel trolley with locking castors.
Specifications tab
| Specification | Details |
|---|---|
| Fill range | 500 mL to 5 L per head |
| Filling heads | Two volumetric piston heads |
| Published fill rate | 10–30 fills per minute, depending on product and operation |
| Published fill accuracy | ±0.5% or better |
| Hot-fill capability | Up to 95 °C with a suitable setup |
| Standard nozzles | Two 25 mm outward-opening positive shut-off (PSO) nozzles |
| Product inlet | Direct connection to the spool valves with quick-connect tri-clamp fittings |
| Compressed air | 87 psi / 6 bar |
| Dimensions (W × D × H) | 1,200 × 1,600 × 1,700 mm |
| Machine weight | Approximately 160 kg |
Options tab

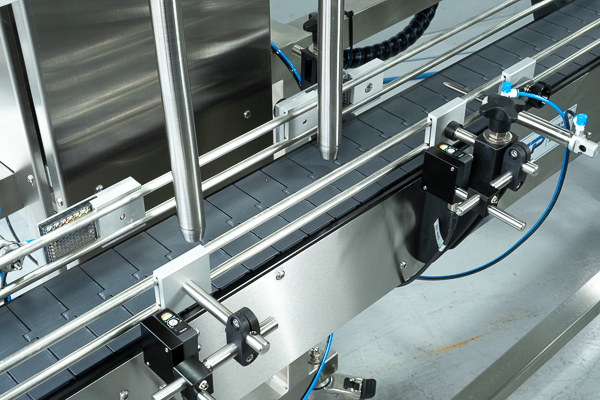

- Conveyor and gating. Use a suitable existing conveyor or ask us to quote a conveyor with the hire. Share your conveyor dimensions and container sizes so we can check the layout.
- Container detection. Pneumatic whisker switches or electronic detection options, including IRD, ultrasonic or retro-reflective sensors, depending on the hire unit and application.
- Nozzles and product feed. Alternative positive shut-off, plug or suck-back nozzles and product inlet connections from 1 to 3 inches are available to suit the setup.
If your product is flammable or the installation is in a classified area, flag this in your enquiry so the complete setup can be assessed.
