ICP Conveyor Spacer Wheel – Australian Made

Australian-made ICP conveyor spacer wheel for even container spacing before capping or labelling. Lenze variable speed, 1 or 2-ring wheels, retrofits to most conveyors. 12-month warranty.

Price on application

Pricing depends on how the machine is configured. Tell us a little about your application and we'll come back with a quote.

Prefer to talk? Call us on 02 9987 1871

Finance available on all new machines

Spread the cost with flexible equipment finance through our partner Rangeland Capital, an Australian finance specialist. Just tick "I'm interested in finance" on your enquiry. Learn more about finance

SKU: NEW-ICP-SPACER-WHEEL Category:

Conveyor Spacer Wheel – ICP, Australian Made

The ICP conveyor spacer wheel gives accurate, even spacing between containers before capping or labelling. Its variable speed controller lets you match the conveyor or open up the gap, which helps prevent missed labels and jammed cappers. Designed and made in Sydney by ICP Packaging Machines Australia.

Want to try it on your line first? The ICP spacer wheel is also available to hire. See spacer wheel hire.

ICP 12 month warranty badge

Built to last, backed for longer

12-month warranty on every new ICP spacer wheel

Plus free lifetime support from the Australian team who designed and build it. T&Cs apply.

Australian Made and Owned logo

Australian Made and Owned

Designed and built in Sydney by ICP Packaging Machines Australia.

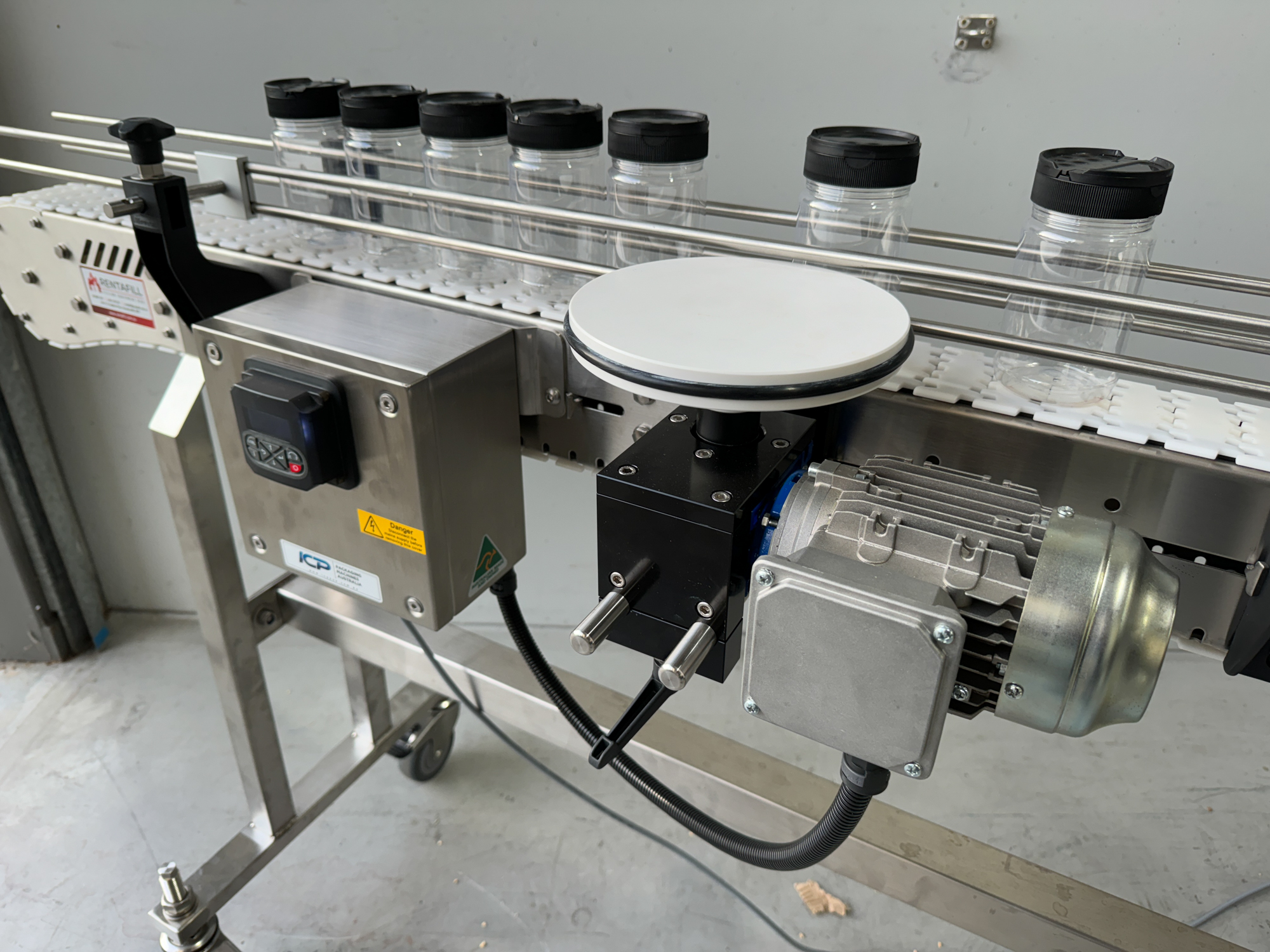

ICP spacer wheel spacing containers on a conveyor

How it works

The spacer wheel mounts on the side of your conveyor. Containers pass through the turning wheel, which holds them back and releases them with an even gap between each one. Set the wheel to match the conveyor speed, or slow it down to open up the spacing for a labeller. Even spacing helps prevent missed labels and jammed cappers.

Why choose the ICP spacer wheel

  • Lenze variable speed controller to match or slow the conveyor.
  • 1-ring or 2-ring wheels to suit your containers.
  • Height adjusts by changing spacers.
  • Simple depth adjustment with a locking lever.
  • 304 stainless steel control box.
  • Bolts straight onto ICP conveyors, and can be retrofitted to most conveyors.
  • Plugs into a standard 240 V, 10 A power point.

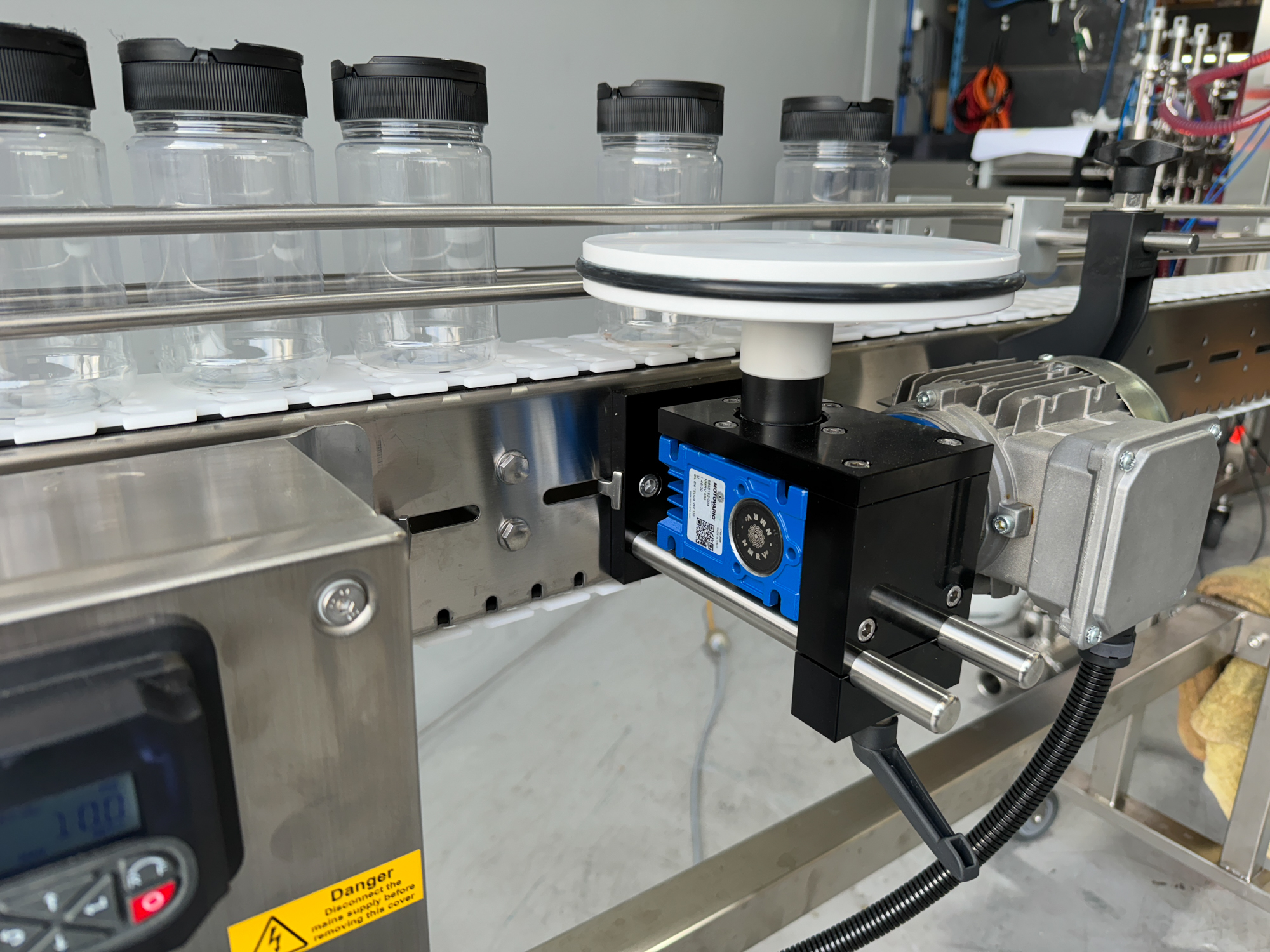

ICP spacer wheel with a 2-ring wheel
2-ring wheel.

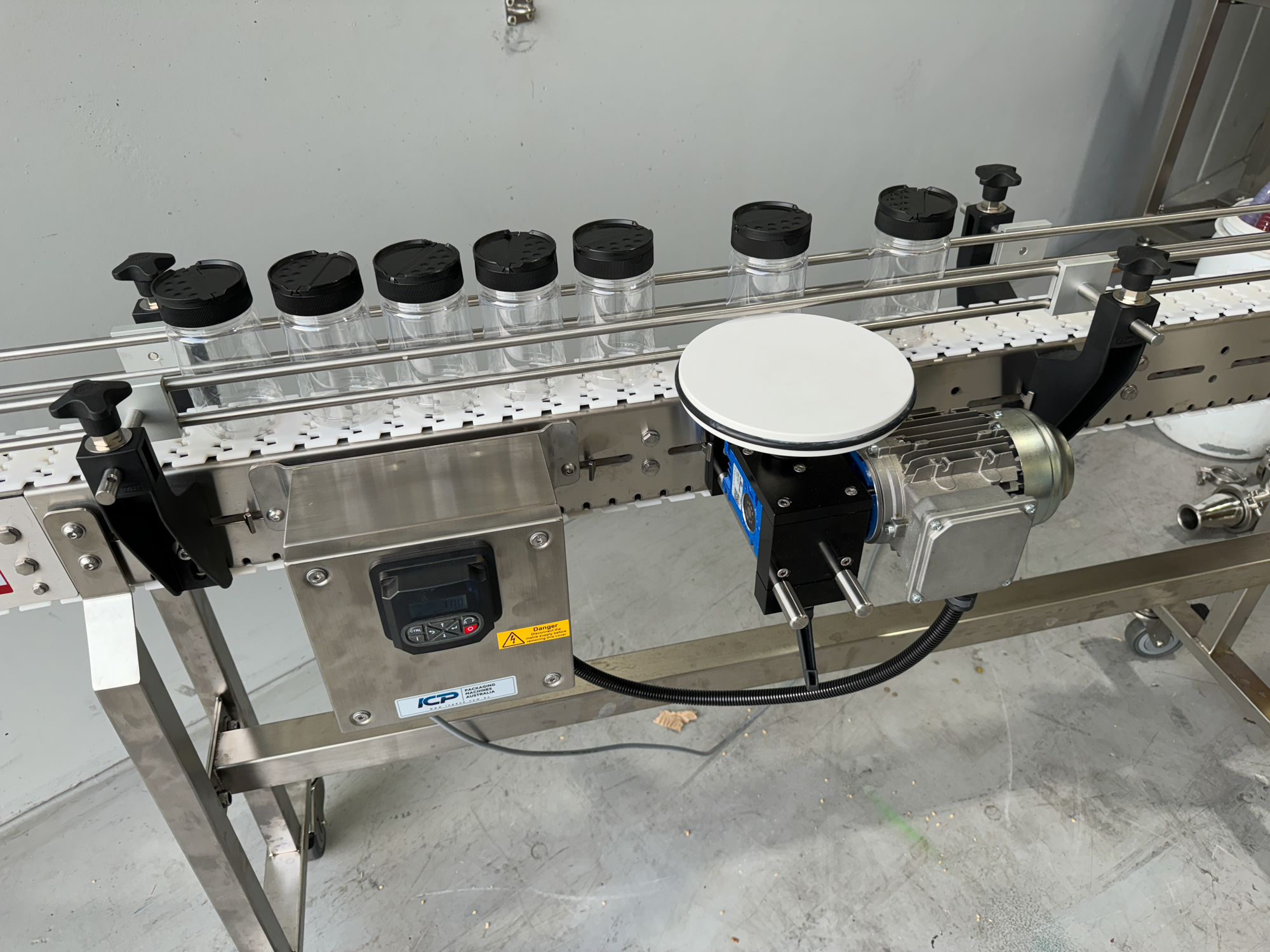

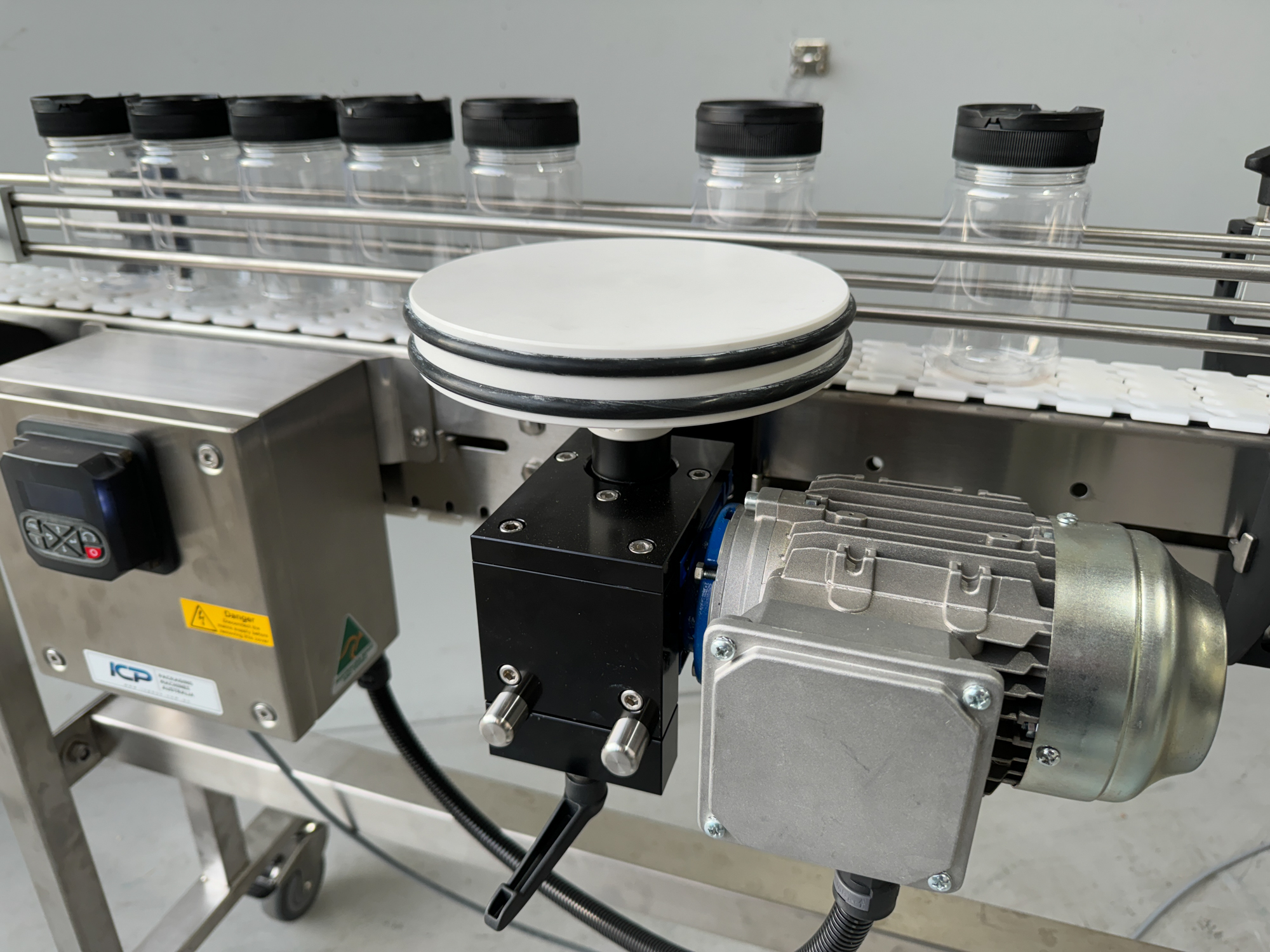

ICP spacer wheel mounted on a conveyor
Mounted on the conveyor.

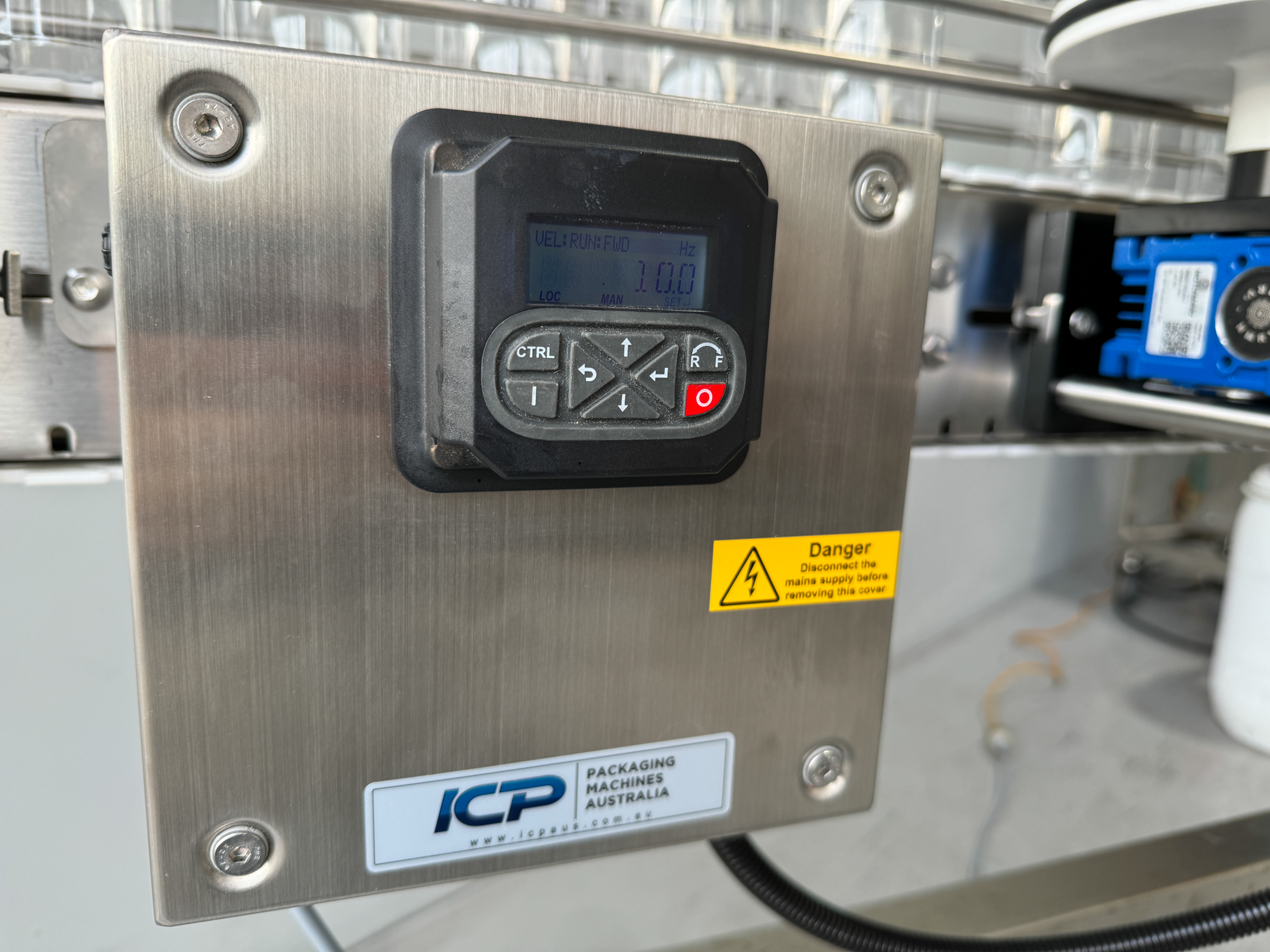

ICP spacer wheel stainless control box with Lenze speed controller
Stainless control box.

Specifications

Type Conveyor-mounted container spacer wheel
Wheels 1-ring or 2-ring
Speed control Lenze variable speed controller
Adjustment Height by spacers; depth by locking lever
Control box 304 stainless steel
Mounting Bolts to ICP conveyors; retrofits to most conveyors
Power 240 V, 10 A plug
Made by ICP Packaging Machines Australia, Sydney

Use it before the ICP-AC1 auto capper or the Kleintek W labeller, on an ICP conveyor.

Complete your line

ICP modular conveyors

Slat conveyors built to suit your line.

Rotary sorting table

Feeds empty containers onto the conveyor.

Container infeed table

Flat belt infeed for smaller containers.

Transfer belts

Bottomless conveyor for underside coding.

Rotary accumulation table

Collects finished product at the end of the line.

Call our Sydney team on 02 9987 1871.

Frequently Asked Questions

Common questions about the ICP conveyor spacer wheel.

What does a spacer wheel do?

It creates an even gap between containers on the conveyor, so cappers and labellers get one container at a time. That helps prevent missed labels and jammed cappers.

Will it fit my conveyor?

It bolts straight onto ICP conveyors and can be retrofitted to most other conveyors.

Can I adjust the spacing?

Yes. The Lenze variable speed controller lets you match the conveyor speed or slow the wheel to widen the gap.

What warranty does it come with?

Every new ICP spacer wheel comes with a 12-month warranty (T&Cs apply) and free lifetime support from our Sydney team.

Can I hire one first?

Yes. It’s available to hire.
