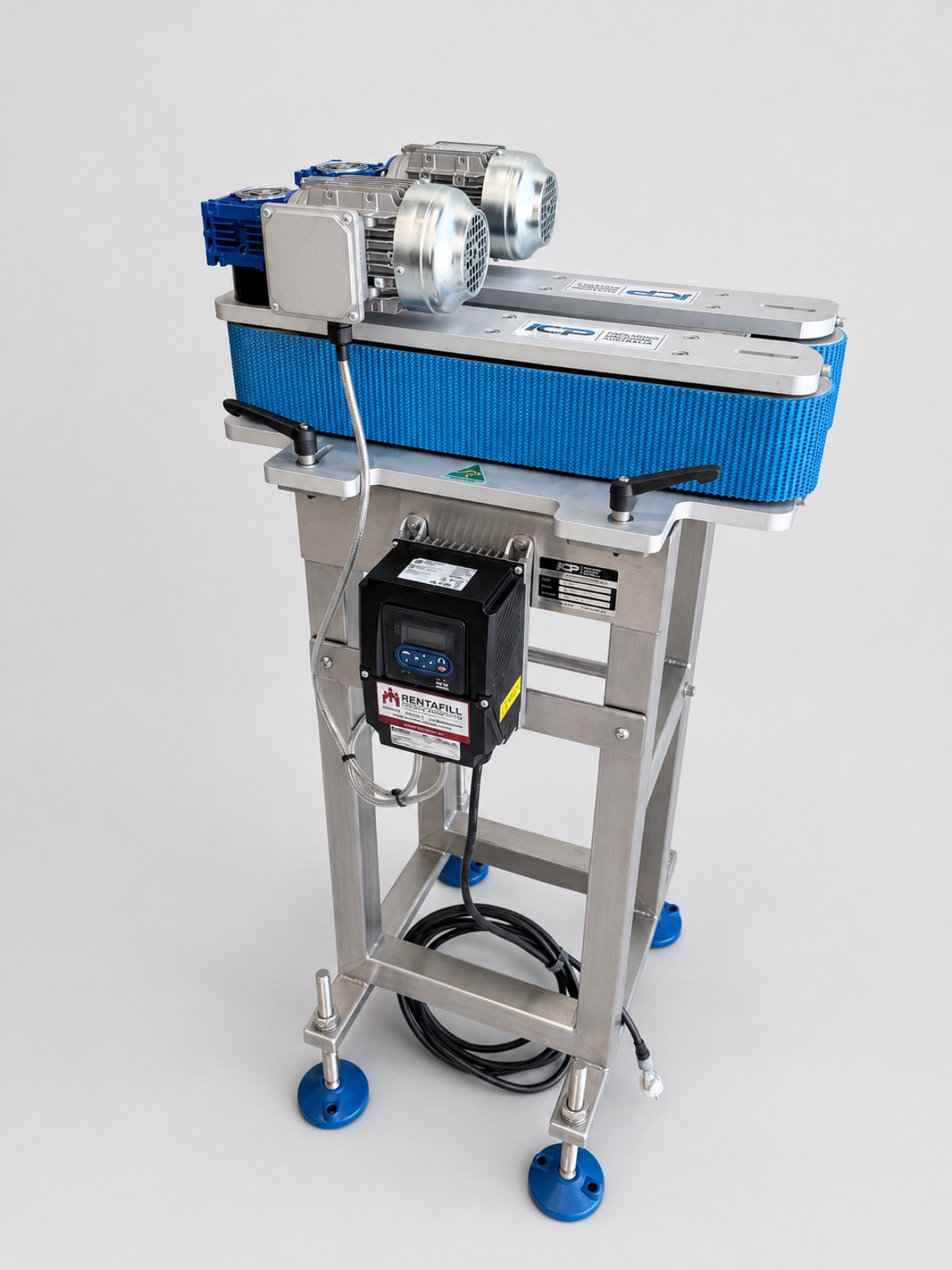

Transfer Belts Hire – Australian-Made Bottomless Conveyor
The ICP Transfer Belts, also known as a bottomless conveyor or side belt conveyor, are available for hire Australia-wide. This versatile system is designed for underside inkjet or laser coding, smooth container transfers and controlled product spacing within automated packaging lines.
Manufactured in Australia by ICP Packaging Machines Australia, these Transfer Belts were specifically designed to withstand the demands of a commercial rental fleet. Their heavy-duty construction, industrial components and flexible controls make them suitable for short production runs, seasonal demand, product trials and ongoing commercial applications.

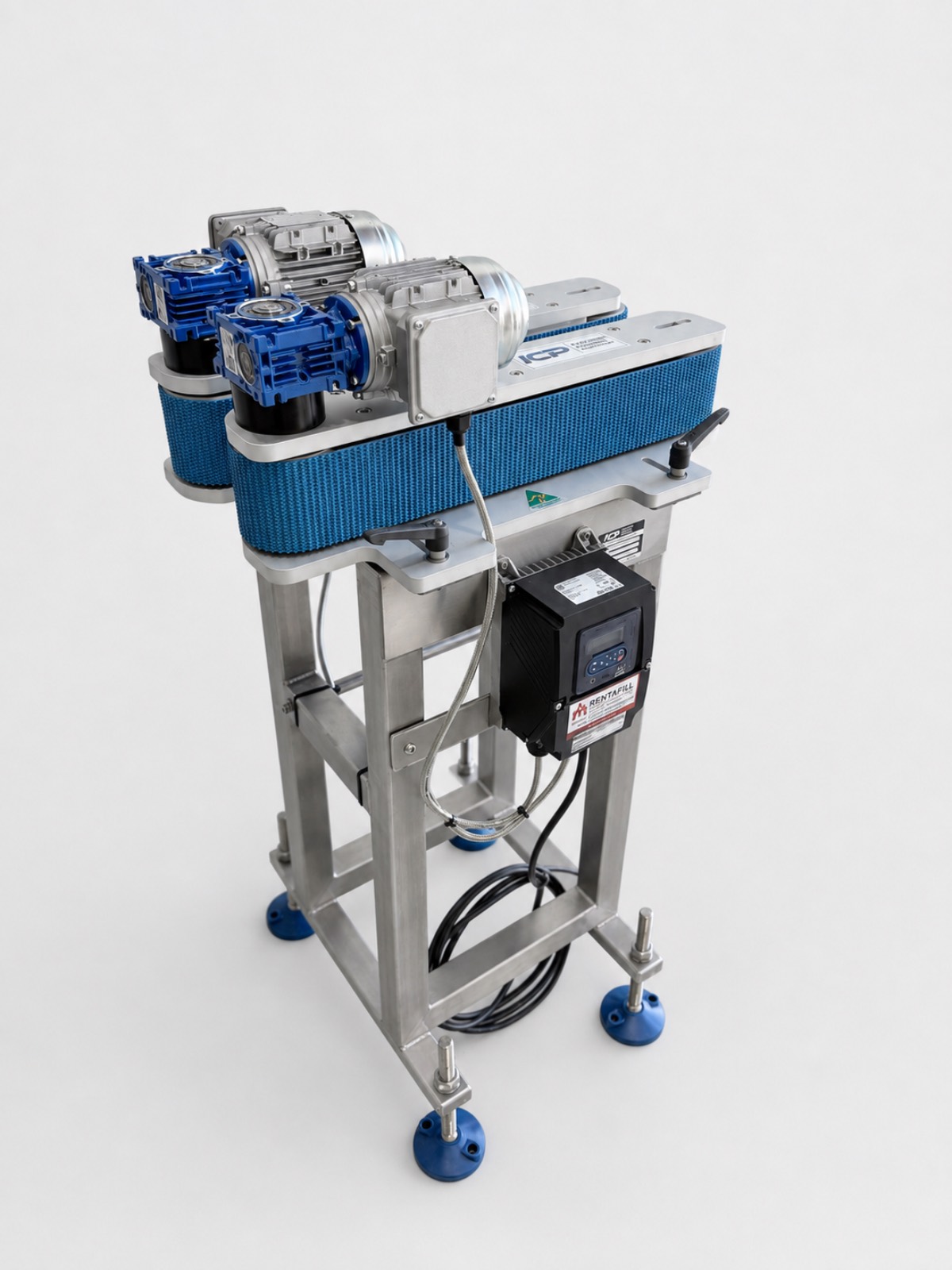

Underside Inkjet and Laser Coding
The system uses two opposing side belts to grip and support each container while leaving its base exposed. This provides clear access beneath bottles, jars and cans for printing:
- Batch and lot numbers
- Expiry and best-before dates
- Production codes
- Barcodes
- Traceability information
A 20 mm stainless-steel mounting rail is included for attaching a coding head, sensor or adjustable coding trolley.
The Transfer Belts can be integrated with a suitable coding system, including the MEENJET MXPlus thermal inkjet printer.

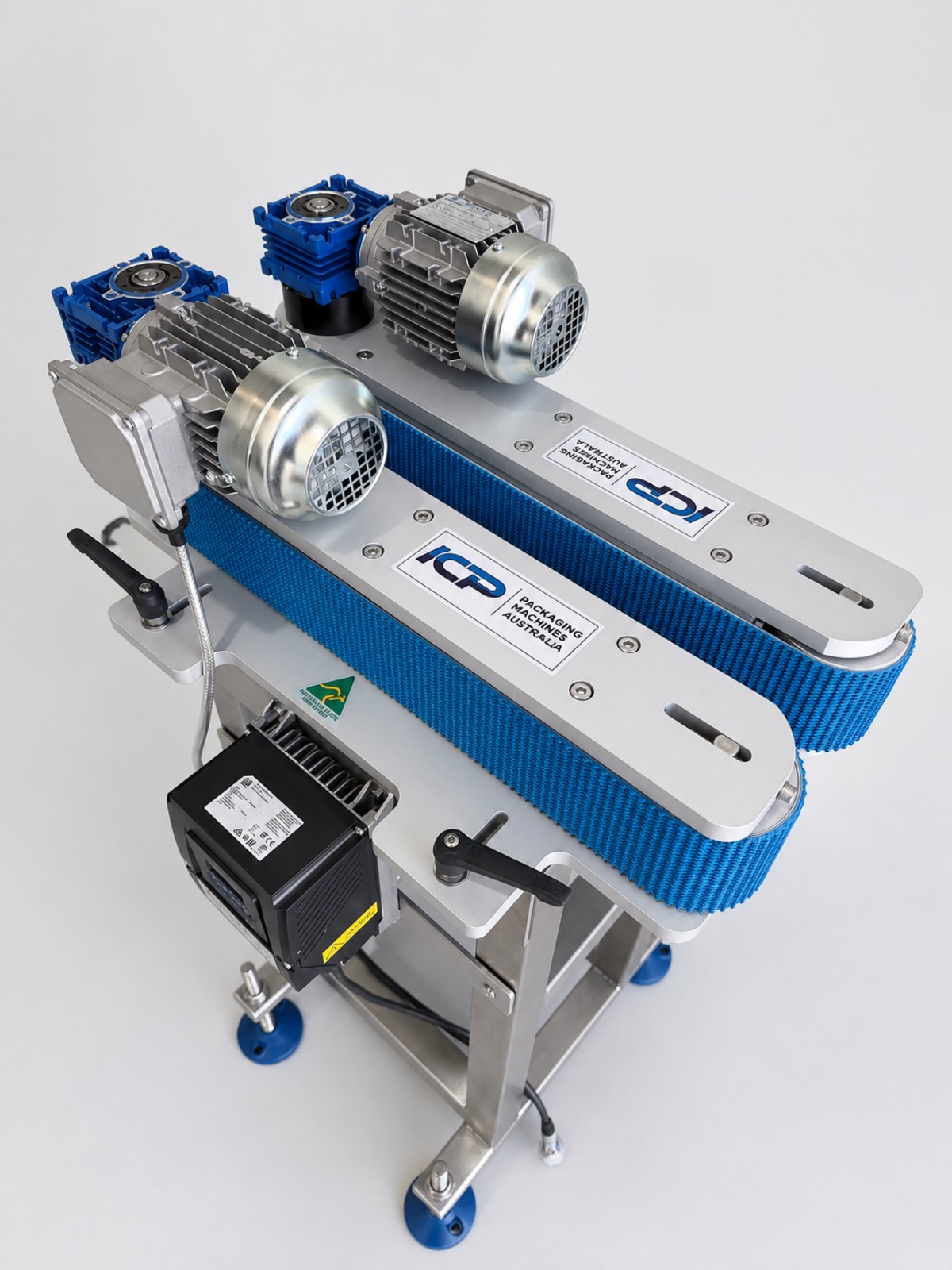

Container Transfers Between Machines
The ICP bottomless conveyor can also provide a smooth transfer point between adjoining conveyors and packaging machines.
It can be used to transfer suitable containers:
- Between two conveyor sections
- From a conveyor into an automatic labelling machine
- Across gaps between packaging-line equipment
- Into an accumulation or collection system
- Between filling, capping, coding and labelling stations
This helps reduce unstable transitions, container tipping and manual handling within the production line.
View our range of automatic inline labelling machines for compatible downstream equipment.
Automated Product Spacing
Each belt has separately adjustable speed control. The belts can be set to match an adjoining conveyor or operate at a higher speed to create a controlled gap between containers.
Consistent container spacing can improve product flow when feeding:
- Automatic labelling machines
- Inkjet and laser coding systems
- Inspection equipment
- Packaging machinery
- Rotary accumulation tables
For end-of-line collection, the Transfer Belts can be combined with an ICP Rotary Accumulation Table.
Key Features
- Australian-designed and manufactured by ICP Packaging Machines Australia
- Available for flexible short-term or longer-term hire
- Heavy-duty construction developed for demanding rental and commercial use
- Suitable for underside inkjet and laser coding
- Provides open access beneath supported containers
- Transfers containers between conveyors and packaging machines
- Creates controlled product separation and automated line spacing
- Separate variable-speed control for each belt
- Adjustable operating width for different container sizes
- Suitable for many round and flat-sided bottles, jars and cans
- 100 mm-high side-grip belts

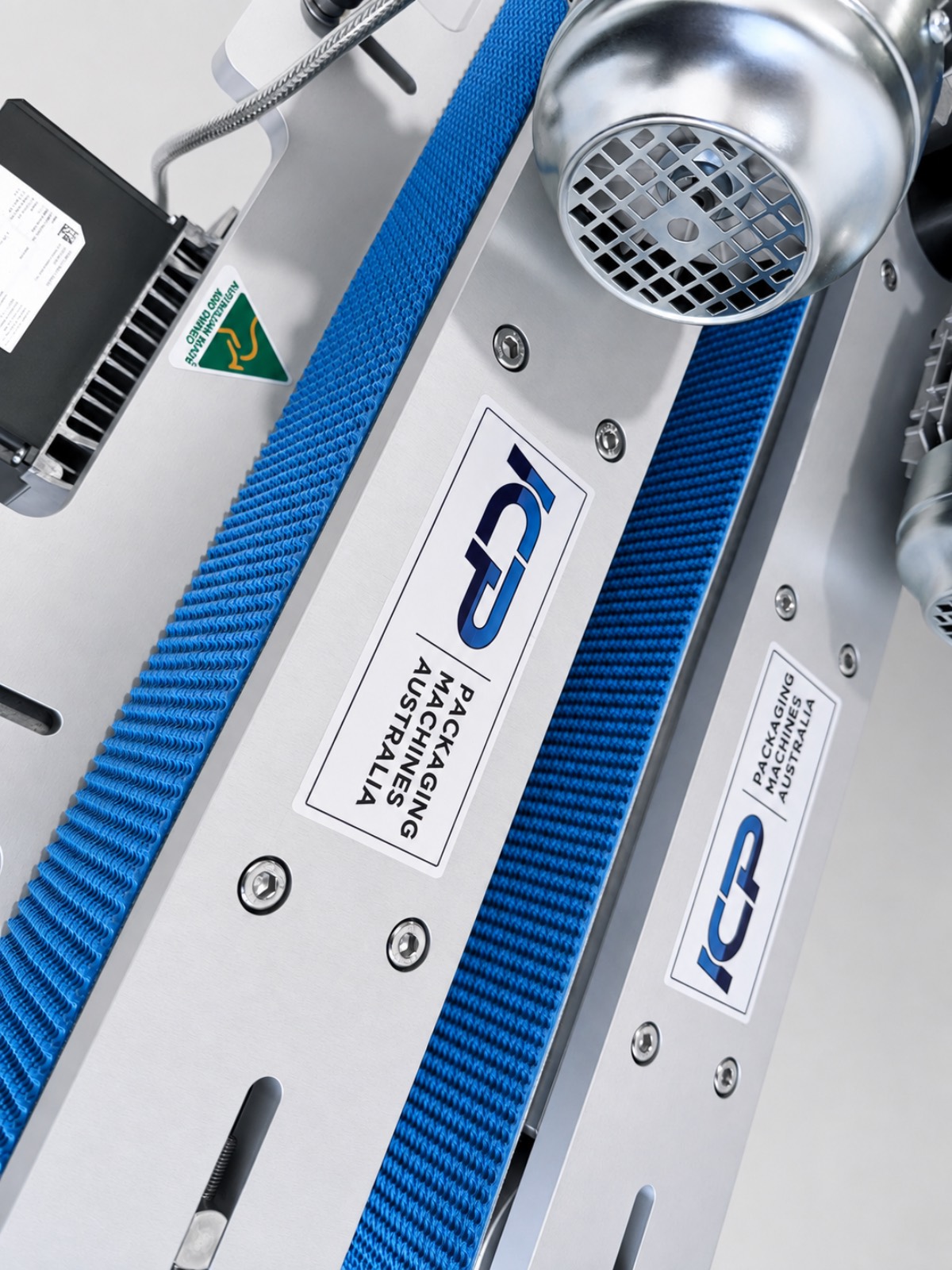

- 304 stainless-steel frame construction
- Compact footprint for integration into existing packaging lines
- 20 mm stainless-steel mounting rail for a coding head or accessory trolley
- 240 V electrical supply with emergency stop
Specifications
- Machine type: Transfer belts, bottomless conveyor or side belt conveyor

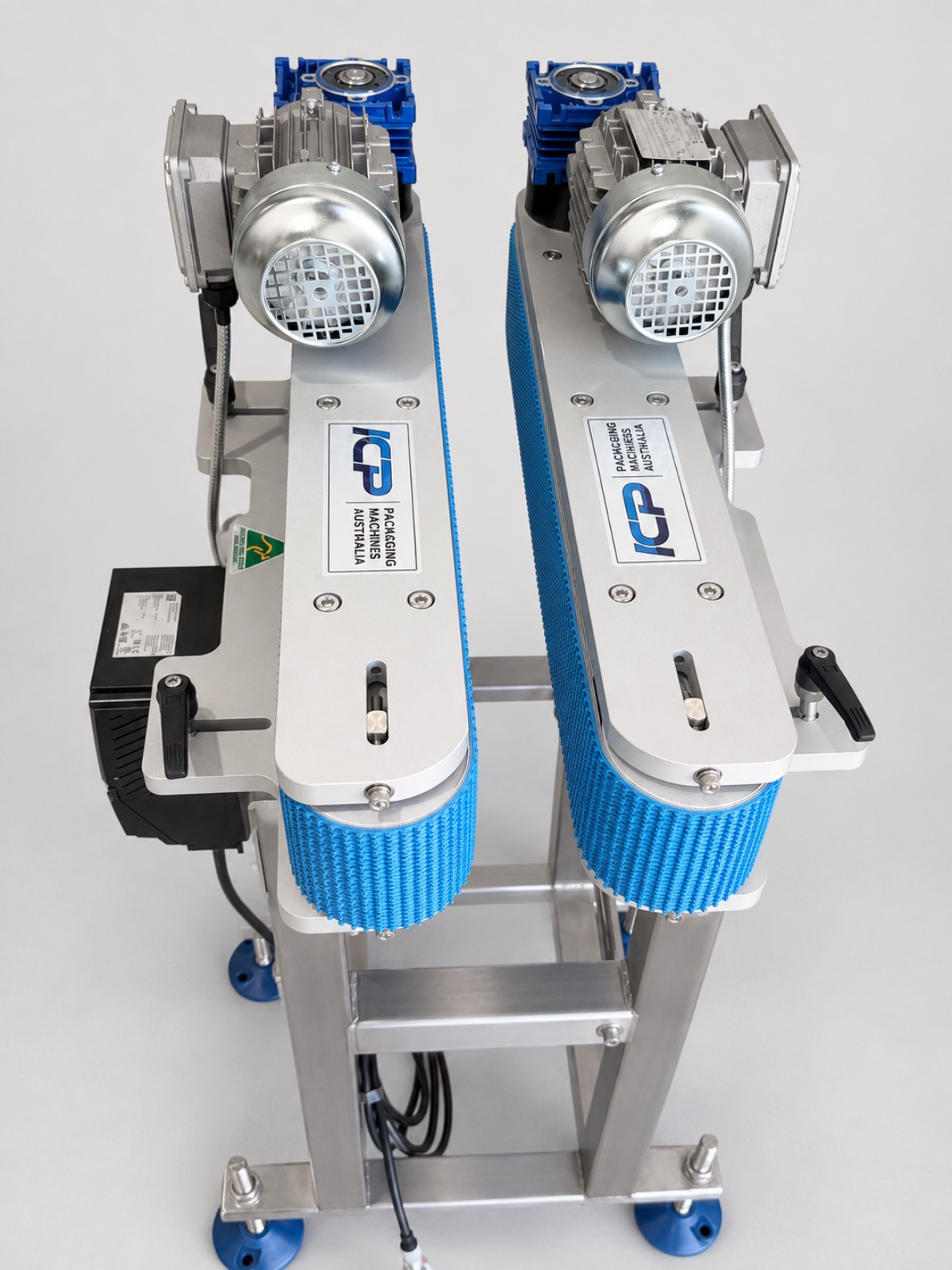

- Belt arrangement: Two opposing vertical side-grip belts
- Belt height: 100 mm
- Belt length: Approximately 500 mm
- Container width: Approximately 10–140 mm, subject to container testing

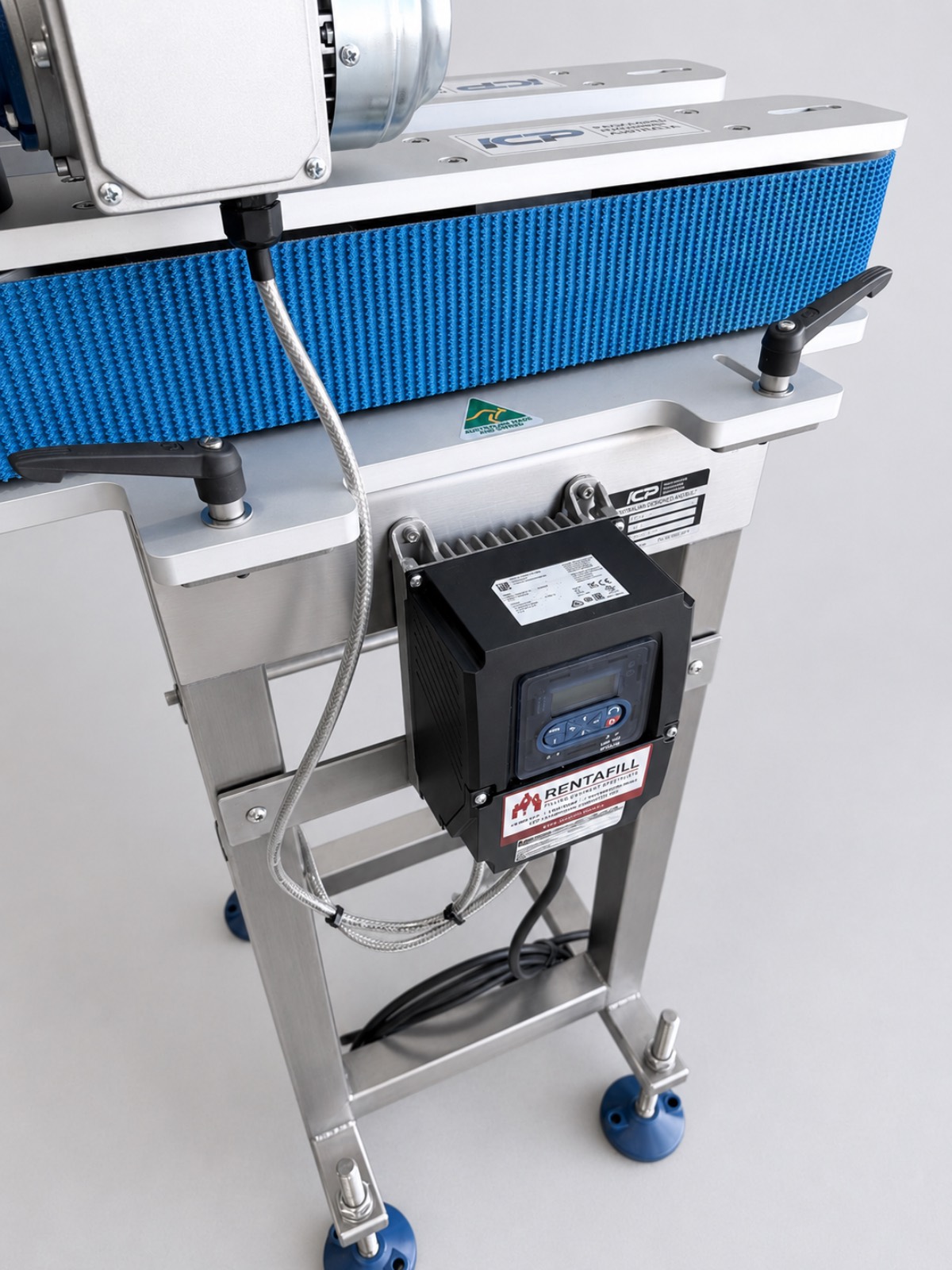

- Speed control: Separate variable-speed control for each belt
- Construction: 304 stainless-steel frame with industrial components
- Power supply: 240 V
- Safety: Emergency stop
- Approximate dimensions: 500 W × 500 D × 1150 H mm
- Approximate weight: 55 kg

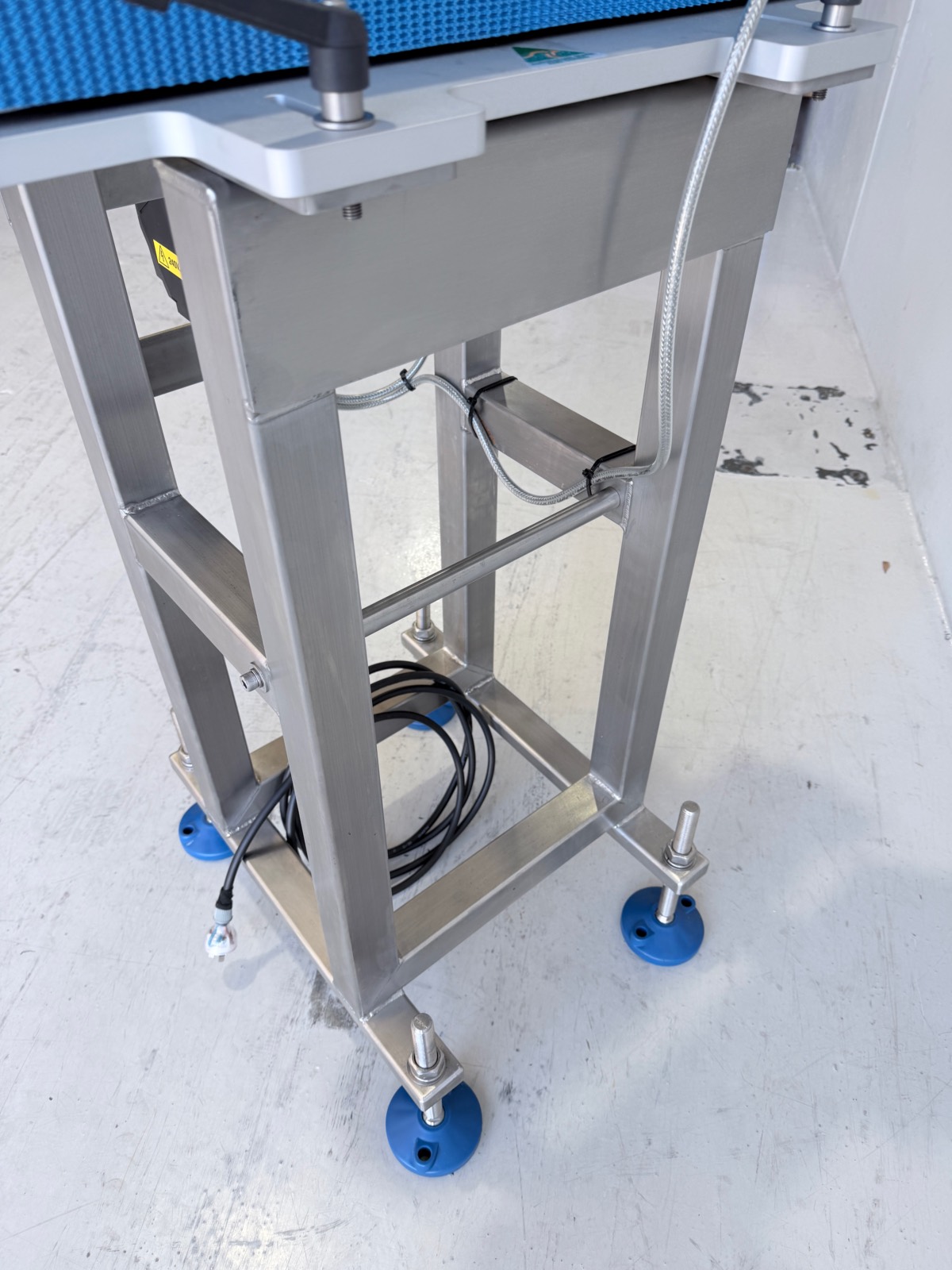

- Coding mount: 20 mm stainless-steel accessory rail
Final suitability depends on the container’s shape, dimensions, rigidity, weight and available side-contact area.
Why Hire Transfer Belts?
Hiring allows you to confirm that the system works with your containers, coding equipment and existing production line before considering a longer-term arrangement.
Transfer Belt hire can be particularly useful for:
- Short-term production contracts
- Seasonal or promotional products
- Product and packaging trials
- Temporary production-line upgrades
- Batch or expiry-date coding projects
- Additional equipment during periods of increased demand
- Testing automated spacing before purchasing equipment
Freight, setup requirements and availability will depend on your location and application.
Hire or Purchase
This ICP bottomless conveyor is available for hire, subject to availability. If you require a permanent system, view our Transfer Belts and Bottomless Conveyor for purchase.
You can also explore our complete range of conveyors and material-handling equipment or learn more about integrating equipment into a complete packaging production line.
Contact Rentafill to discuss your containers, required belt speed, coding system and production-line layout. Container samples or testing may be requested to confirm suitability.
