Transfer Belts / Bottomless Conveyor System
Australian-Made Side Belt Conveyor for Underside Coding, Container Transfers and Product Spacing

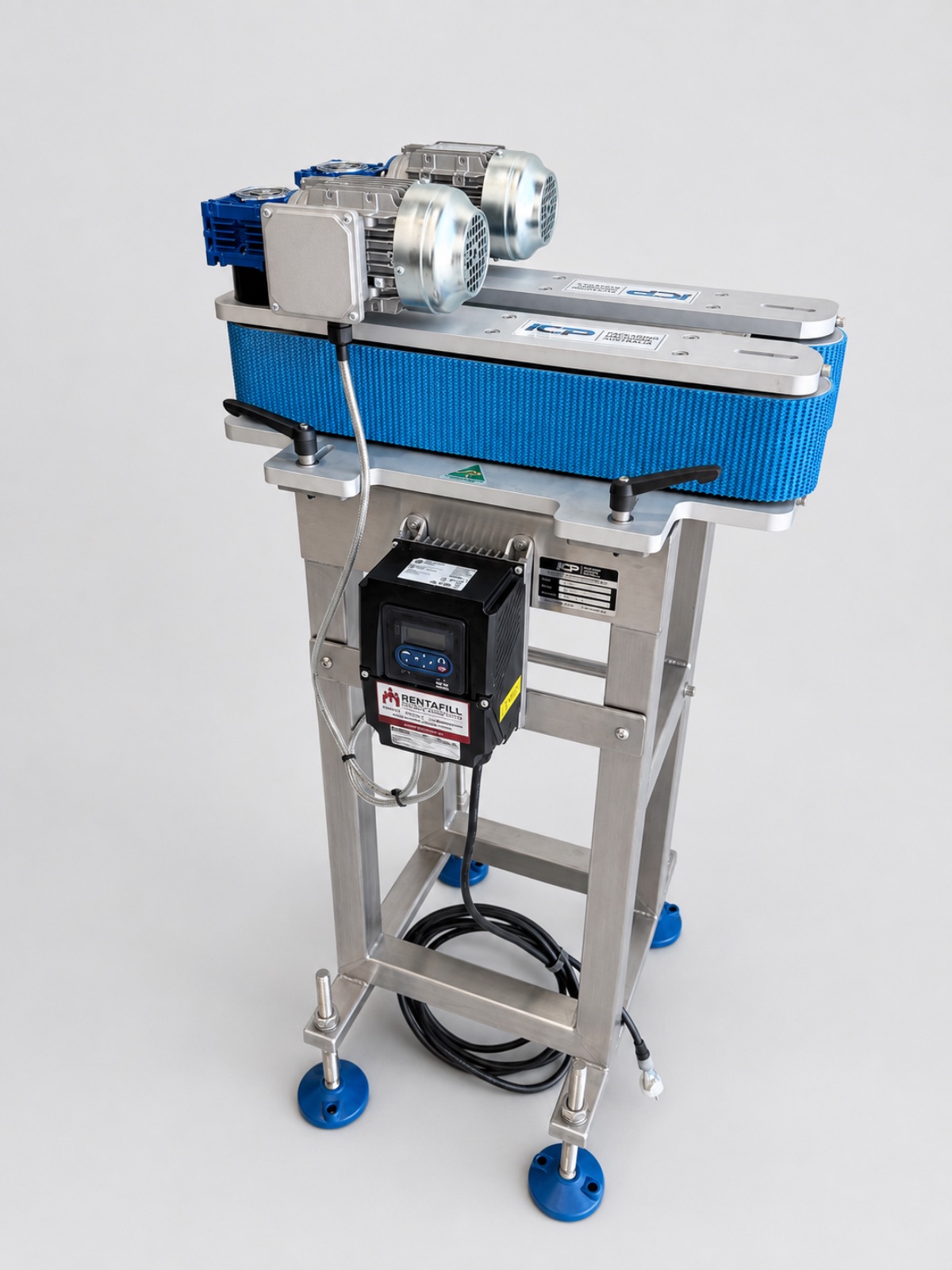

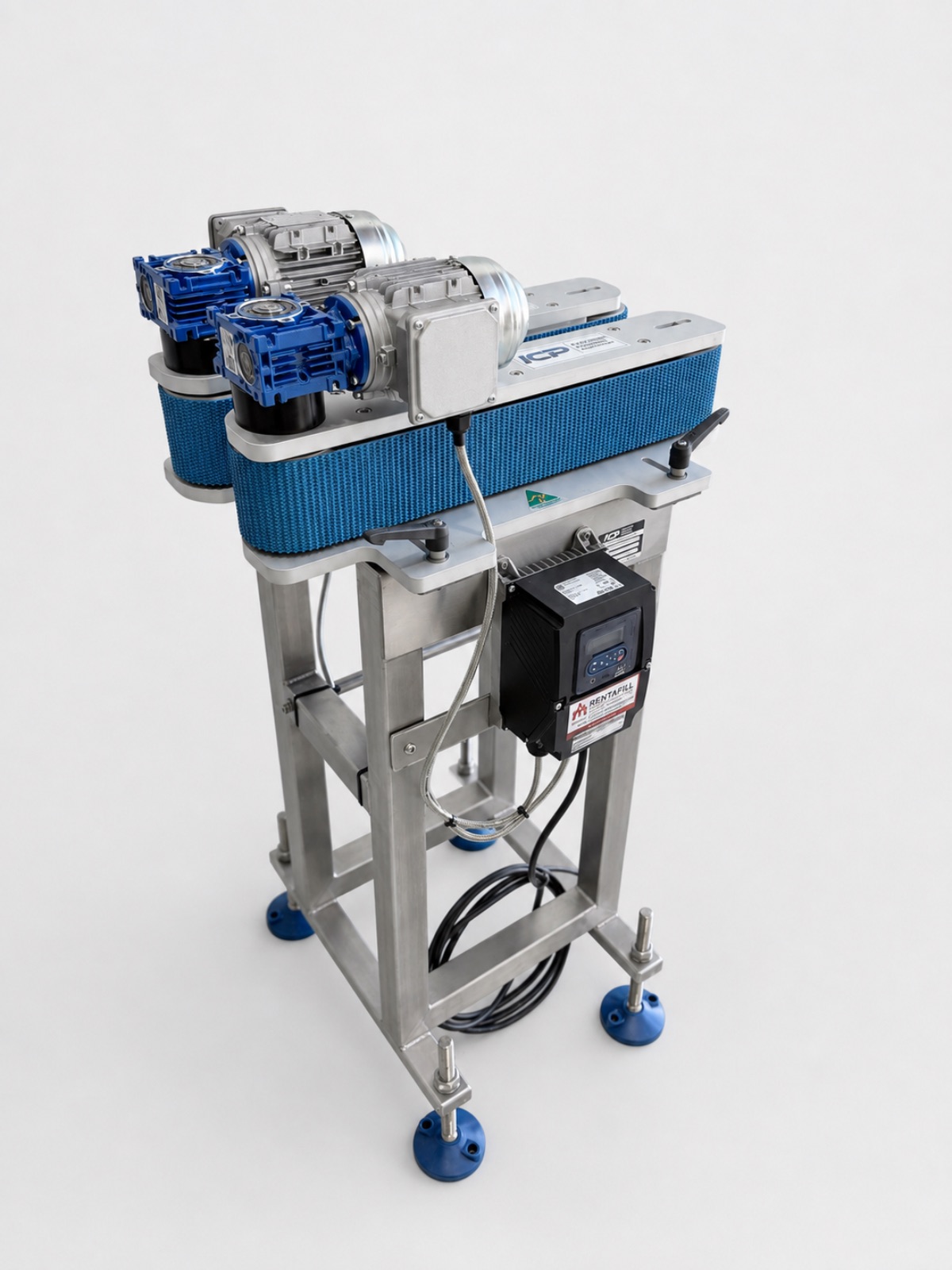

The ICP Transfer Belts, also known as a bottomless conveyor or side belt conveyor, provide precise and reliable container handling within automated packaging and production lines.
The system uses two opposing side belts to grip and support containers while leaving their base completely exposed. This makes it ideal for underside inkjet coding or laser coding, allowing batch numbers, expiry dates, lot codes, barcodes and traceability information to be applied directly to the bottom of bottles, jars, cans and other containers.
ICP Transfer Belts can also be used to create a smooth container transfer between conveyors, feed products into labelling or packaging machinery, and control automated line spacing before downstream equipment or accumulation tables.
Designed and manufactured in Australia by ICP Packaging Machines Australia, the system features heavy-duty construction and high-quality industrial components. It was originally engineered to withstand the demands of a commercial rental fleet, making it equally suited to demanding production environments where reliability, flexibility and long service life are essential.
Underside Inkjet and Laser Coding

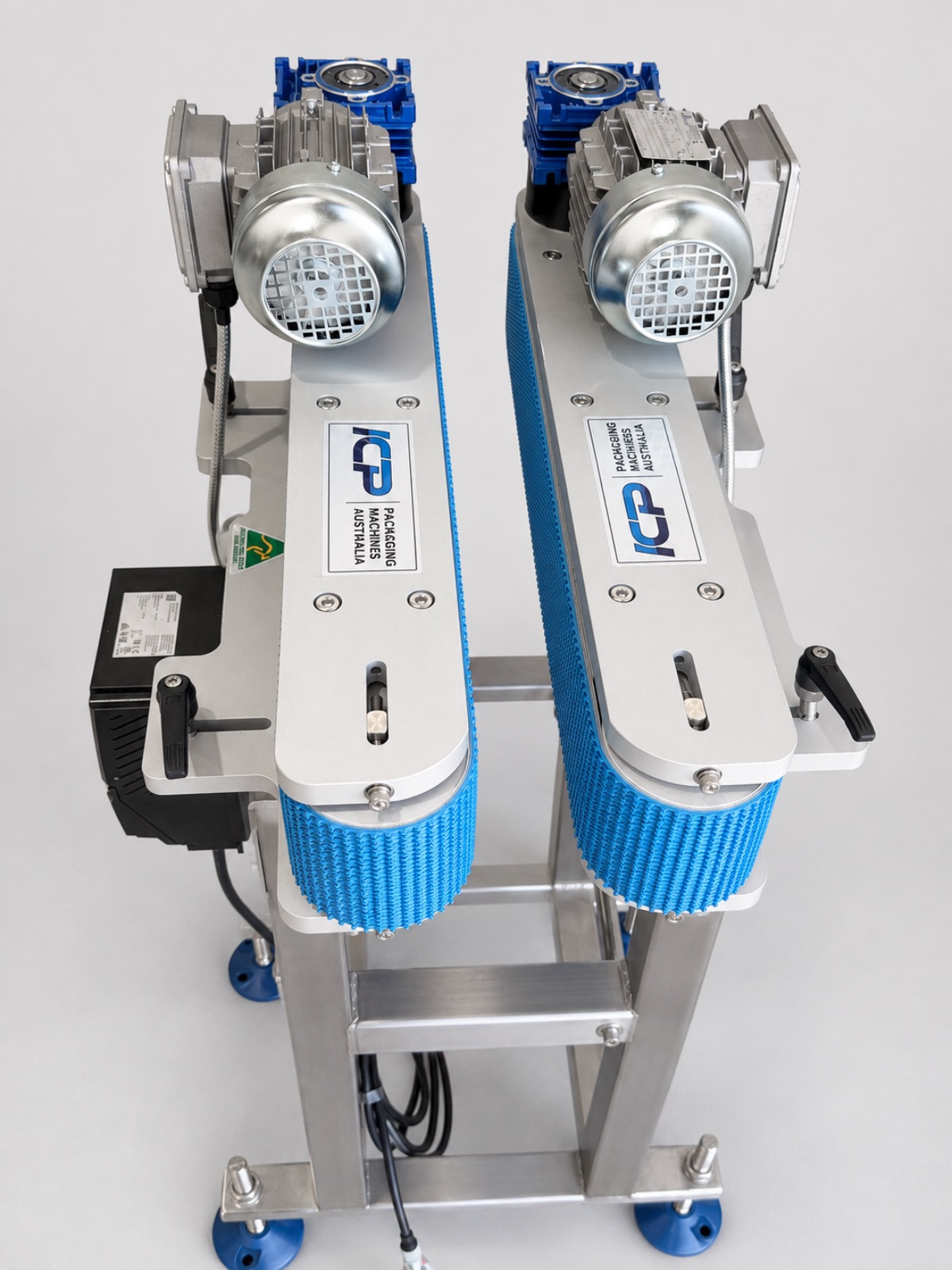

A conventional conveyor supports the product from underneath, preventing access to the container base. The ICP bottomless conveyor lifts and carries each container using opposing side belts, creating an unobstructed area beneath the product.
An inkjet or laser coding head can then be positioned below the container to apply:
- Batch and lot numbers
- Use-by and best-before dates
- Production and traceability codes
- Barcodes and other variable information
A 20 mm accessory rail is included for mounting a coding head, sensor or adjustable coding trolley.
Container Transfers and Automated Line Spacing
The Transfer Belts can bridge gaps and transfer containers smoothly between conveyors or separate pieces of packaging equipment. This helps minimise tipping, catching and unstable transitions when handling suitable bottles, jars, cans and other containers.
Independently adjustable belt speeds can also be used to match the speed of adjoining equipment or create controlled spacing between products. This makes the system suitable for feeding labelling machines, printers, inspection systems, accumulation tables and other automated packaging equipment.
Key Features
- Australian-designed and manufactured by ICP Packaging Machines Australia
- Industrial transfer belt, bottomless conveyor and side belt conveyor system
- Provides clear access for underside inkjet or laser coding
- designed to suit standard 900mm high conveyors and accumulation tables
- NEW 2026 Model now available with 600mm wide belts (previous model was 500mm)
- Suitable for transferring containers between conveyors and packaging machines
- Helps create consistent automated line spacing

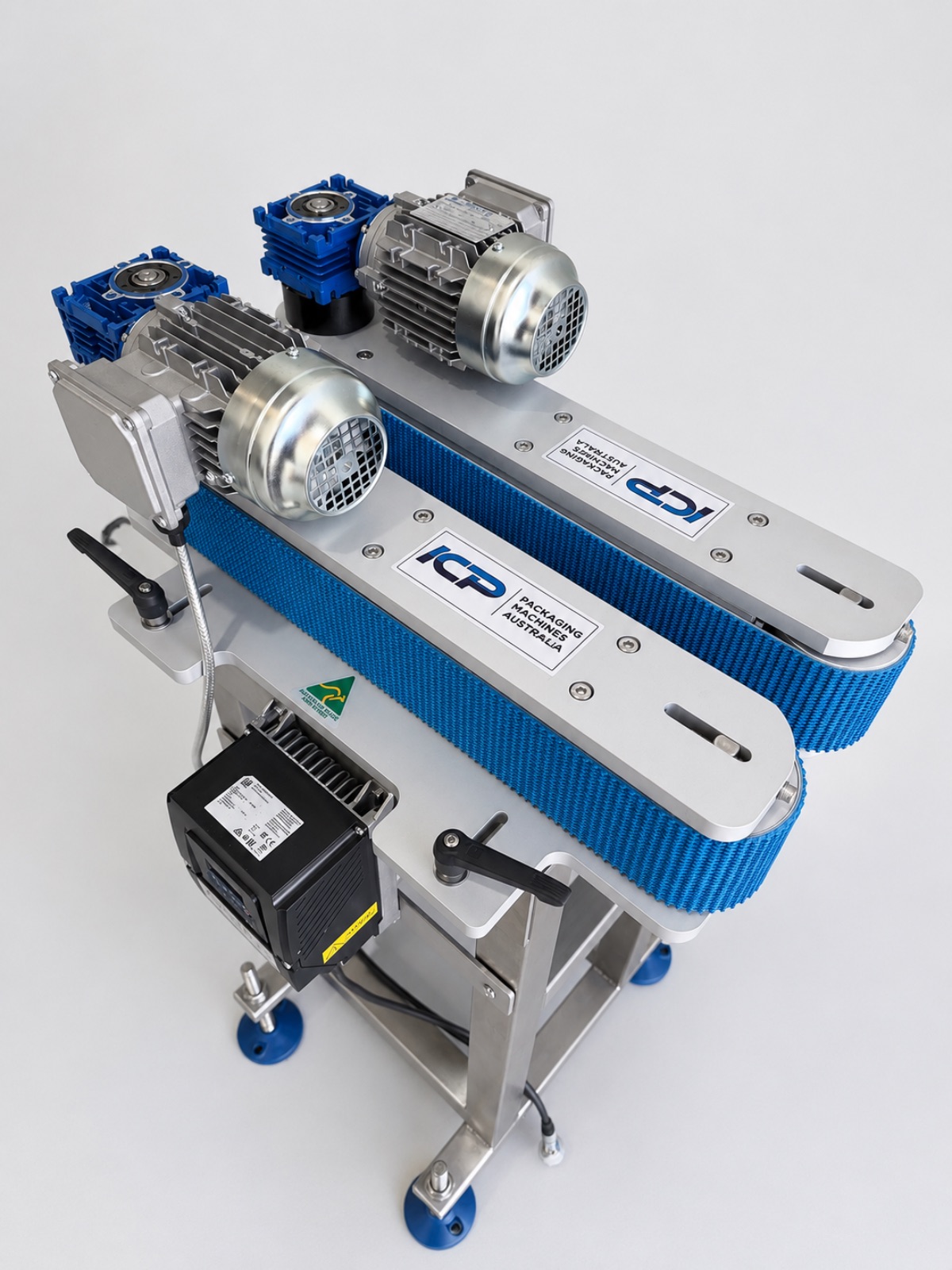

- Adjustable belt speeds for matching, separating or spacing products
- Suitable for many bottles, jars and cans, including flat-sided and round containers

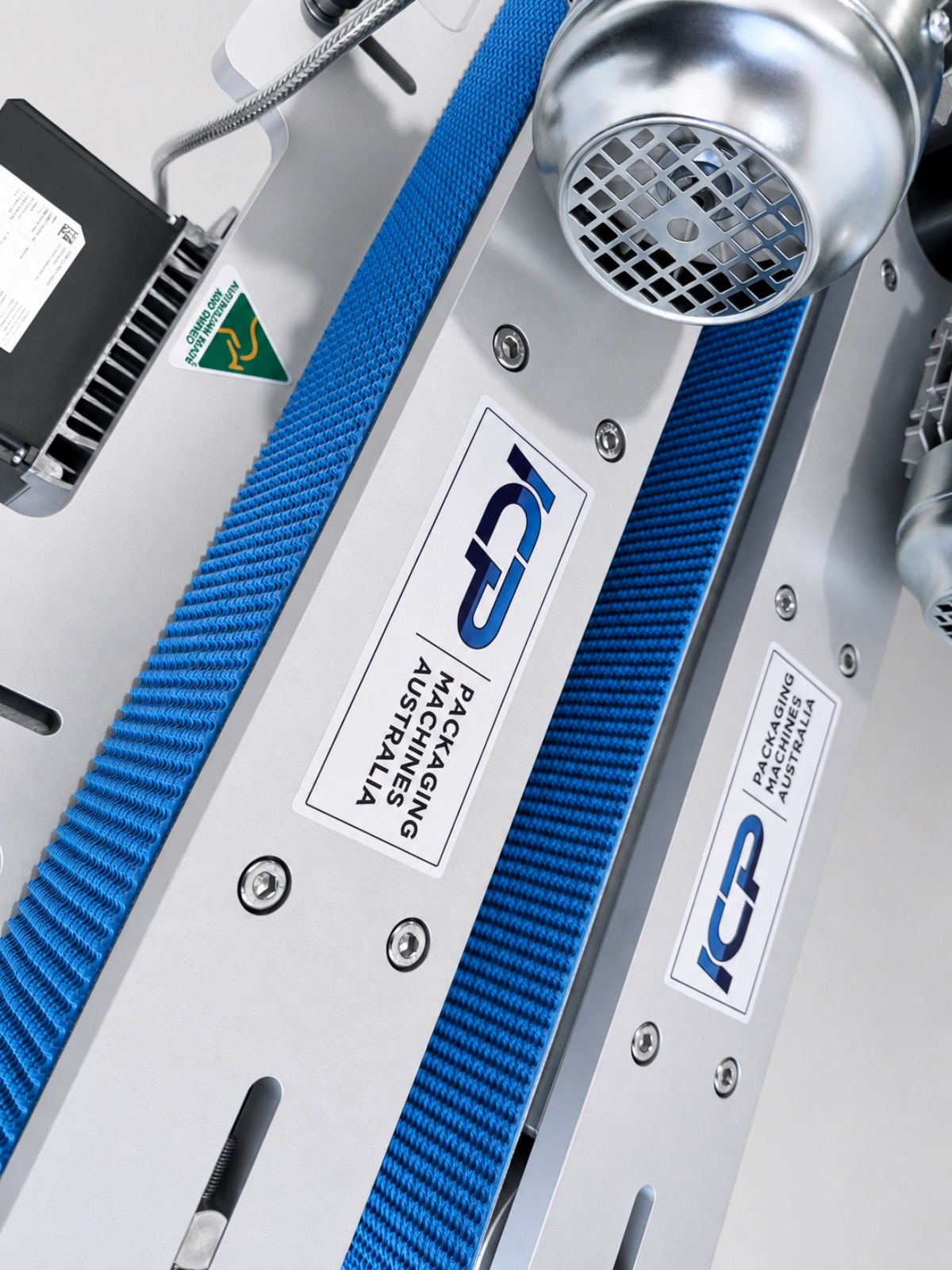

- Heavy-duty stainless-steel and aluminium construction
- High-quality industrial motors, gearboxes and controls
- Compact design for integration into existing packaging lines
- Adjustable operating width to accommodate different container sizes
- Includes a 20 mm mounting rail for a coding head, sensor or accessory trolley
- Designed for commercial production and the demanding conditions of a rental fleet
Typical Applications
- Underside inkjet coding
- Underside laser coding
- Batch and expiry-date printing
- Product traceability marking
- Container transfers between conveyors
- Transfers into labelling or packaging machines
- Product separation and line spacing
- Feeding accumulation tables
- Bridging gaps between packaging-line equipment
Built for Commercial Packaging Applications
ICP Transfer Belts provide a robust and flexible solution wherever containers must be supported from the sides, coded from underneath, transferred between machines or spaced before the next stage of production.
The ICP Transfer Belts provide unobstructed access beneath containers for use with a thermal inkjet coding printer or suitable laser coding system. They can also transfer products smoothly into automatic inline labelling machines or create controlled spacing before a rotary accumulation table.
Explore our complete range of conveyors and material-handling equipment, or speak with Rentafill about integrating the Transfer Belts into a complete packaging production line.
Also available for hire – ICP Hire Transfer Belts
