Suck-Back Nozzle

Price on quote

ICP suck-back nozzles – designed for products of a thick consistency or that tend to string between fills. Perfect for shampoos, conditioners, yogurts, or cosmetic creams.

Add to Quote

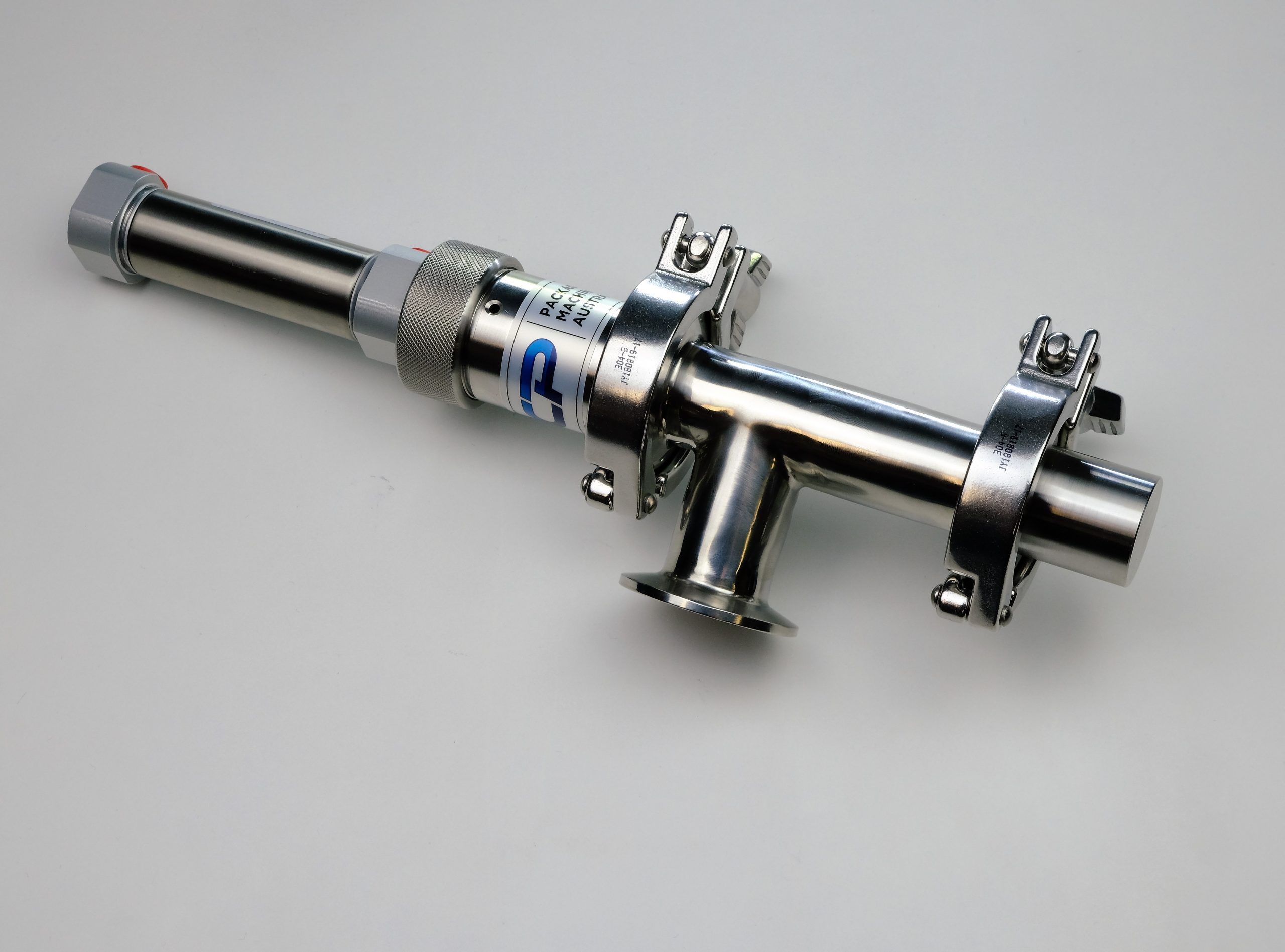

ICP suck-back nozzles are a go-to nozzle for any product that tends to be stringy between filling or has a thicker consistency like cosmetic creams.

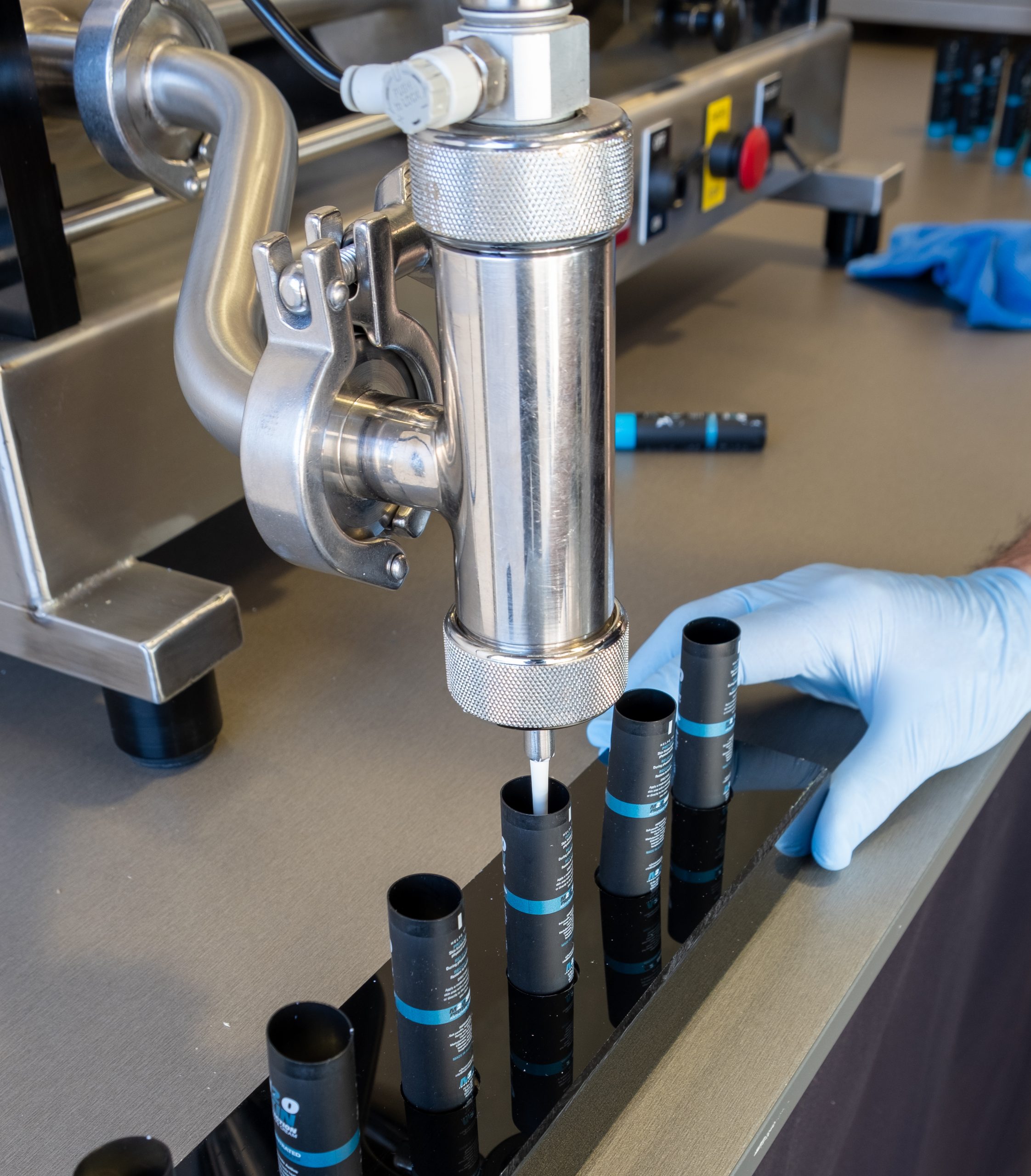

Suck-back nozzles work using a flat plunger at the top of the nozzle, which is set to detract slowly after the filling process and while the filling machine is recharging. While detracting, the plunger sucks the product slowly back into the head of the nozzle.

  • All 316 stainless and food-grade contact parts.
  • FESTO or SMC pneumatic cylinders.
  • Flow controls to both up and down action.
  • Viton seal to 316 stainless plunger.
  • 50.5mm – (1.5″) Tri-clamp attachment.
  • Available nozzles sizes in 25,19,16,12,10 or 8mm DIA.
  • Nozzle lengths available up to 150mm long.
