RTS-15 Ultrasonic Tube Sealer – Tube Sealing Machine
The RTS-15 is a benchtop ultrasonic tube sealer that welds, trims and codes plastic and laminate tubes in one cycle. It gives creams, gels, toothpaste, ointments and lip balms a clean, professional seal, without the mess of heat sealing. Supplied, set up and supported by Rentafill.
Want to try it on your tubes first? The RTS-15 is also available to hire. See RTS-15 hire.
Backed by Rentafill
12-month warranty on every new RTS-15
Plus free lifetime support from our Sydney team. T&Cs apply.

How ultrasonic tube sealing works
Place the filled tube in its holder and start the cycle. The sealing head vibrates at 20 kHz, and the friction heats only the plastic where the tube walls meet, welding them together. The sealing jaws stay cool, so there is no melted, messy outer tube, and the seal is clean, strong and consistent. The pneumatic trimmer then cuts the tail to a neat, straight edge, and the code stamp can press a date or batch code into the seal at the same time.
Why choose the RTS-15
- Clean, strong ultrasonic seals with no melted outer tube.
- Seal, trim and code in one cycle, with the PLC pneumatic trimmer and 8-character code stamp.
- Guide speed of about 10–15 tubes per minute, depending on the operator and product.
- Aluminium and stainless steel construction for easy cleaning and long life.
- Adjustable worktable for quick changes between tube sizes.
- Set up and tested on your tubes before delivery, with tube holders made to suit.
Tubes it seals
- Plastic (PE) tubes for creams, gels, toothpaste and ointments.
- Laminate tubes for cosmetics, pharmaceuticals and food.
- Lip balm and small tubes.
- Tubes up to 50 mm diameter and 210 mm tall.
The RTS-15 does not seal aluminium tubes, which are folded and crimped rather than welded.



Specifications
| Type | Benchtop ultrasonic tube sealer with pneumatic trimmer |
|---|---|
| Sealing | Ultrasonic, 20 kHz, 1 kW |
| Tubes | Plastic (PE), laminate and lip balm tubes, up to 50 mm diameter and 210 mm tall. Not for aluminium tubes. |
| Trimmer | PLC-controlled pneumatic trimmer, working with the sealing head |
| Coding | Date and batch codes stamped into the seal, up to 8 characters (0–9, A–Z, / and -) |
| Worktable | Independent platform, adjustable vertically and horizontally |
| Construction | Aluminium and stainless steel |
| Guide speed | About 10–15 tubes per minute, depending on the operator and product |
| Power | Single phase 220–240 V, 50/60 Hz |
| Air supply | 0.7–0.8 MPa (700–800 kPa) |
| Operating conditions | 0 to 35°C, humidity below 85% |
| Dimensions (w x d x h) | 644 x 497 x 900 mm |
| Weight | About 90 kg |
Tube holders and code digits

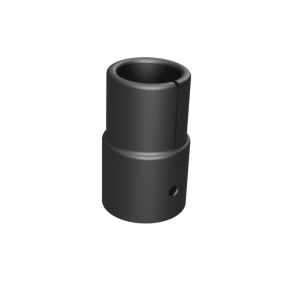

Each tube size needs a holder to keep it upright and aligned under the sealing head. We also make custom holders to suit your exact tube: 3D printed tube holders or machined acetal tube holders, each in sets of 3. Extra code digits (0–9, A–Z, / and -) are available for the batch code stamp. See all RTS-15 parts.
Labelling your tubes too?
The Compact-A-Tube applies labels to plastic and metal tubes on an expanding mandrel. Hire the Compact-A-Tube or see it for sale.
Call our Sydney team on 02 9987 1871.
Frequently Asked Questions
Common questions about the RTS-15 ultrasonic tube sealer.
What is the RTS-15?
A benchtop ultrasonic tube sealer that welds, trims and codes plastic and laminate tubes in one cycle.
What tubes can the RTS-15 seal?
Plastic (PE) tubes, laminate tubes and lip balm tubes, up to 50 mm in diameter and 210 mm tall.
Can it seal aluminium tubes?
No. Ultrasonic sealing welds plastic, and aluminium tubes are folded and crimped instead, so the RTS-15 is not suited to them.
Why ultrasonic instead of a heat sealer?
Ultrasonic sealing heats only the plastic where the tube walls meet, not the jaws, so you get a clean, strong seal without melted or marked tubes.
Do I need tube holders?
Yes, each tube size needs a holder. We make custom 3D printed or machined holders to suit your exact tube, in sets of 3.
Can it print a batch or date code?
Yes. The code stamp presses up to 8 characters into the seal as it is made. Extra code digits are available.
How fast is it?
As a guide, about 10 to 15 tubes per minute, depending on the operator and the product.
What do I need to run it?
Single phase power, a compressed air supply of 0.7 to 0.8 MPa, and a sturdy bench, as the machine weighs about 90 kg.
What warranty does it come with?
Every new RTS-15 comes with a 12-month warranty (T&Cs apply) and free lifetime support from our Sydney team.
Can I try it before I buy?
Yes. The RTS-15 is available to hire, so you can test it on your own tubes first.
