Available for hire

RTS-15 Ultrasonic Tube Sealing Machine – Hire

Hire the RTS-15 ultrasonic tube sealer to weld, trim and code plastic, laminate and lip balm tubes in one cycle, with a clean, professional seal. Standard tube holders included. Delivered Australia-wide.

Hire rates on application

Tell us a little about your project and how long you'll need the equipment. We'll get back to you with availability and hire rates.

Prefer to talk? Call us on 02 9987 1871

SKU: HIRE-RTS-15 Category: Brand:

RTS-15 Ultrasonic Tube Sealer Hire

Hire the RTS-15, a benchtop ultrasonic tube sealer that welds, trims and codes plastic and laminate tubes in one cycle. It gives creams, gels, toothpaste, ointments and lip balms a clean, professional seal, without the mess of heat sealing. Supplied, set up and supported by Rentafill, and delivered Australia-wide.

Want to own one? The RTS-15 is also for sale. See the RTS-15 for sale.

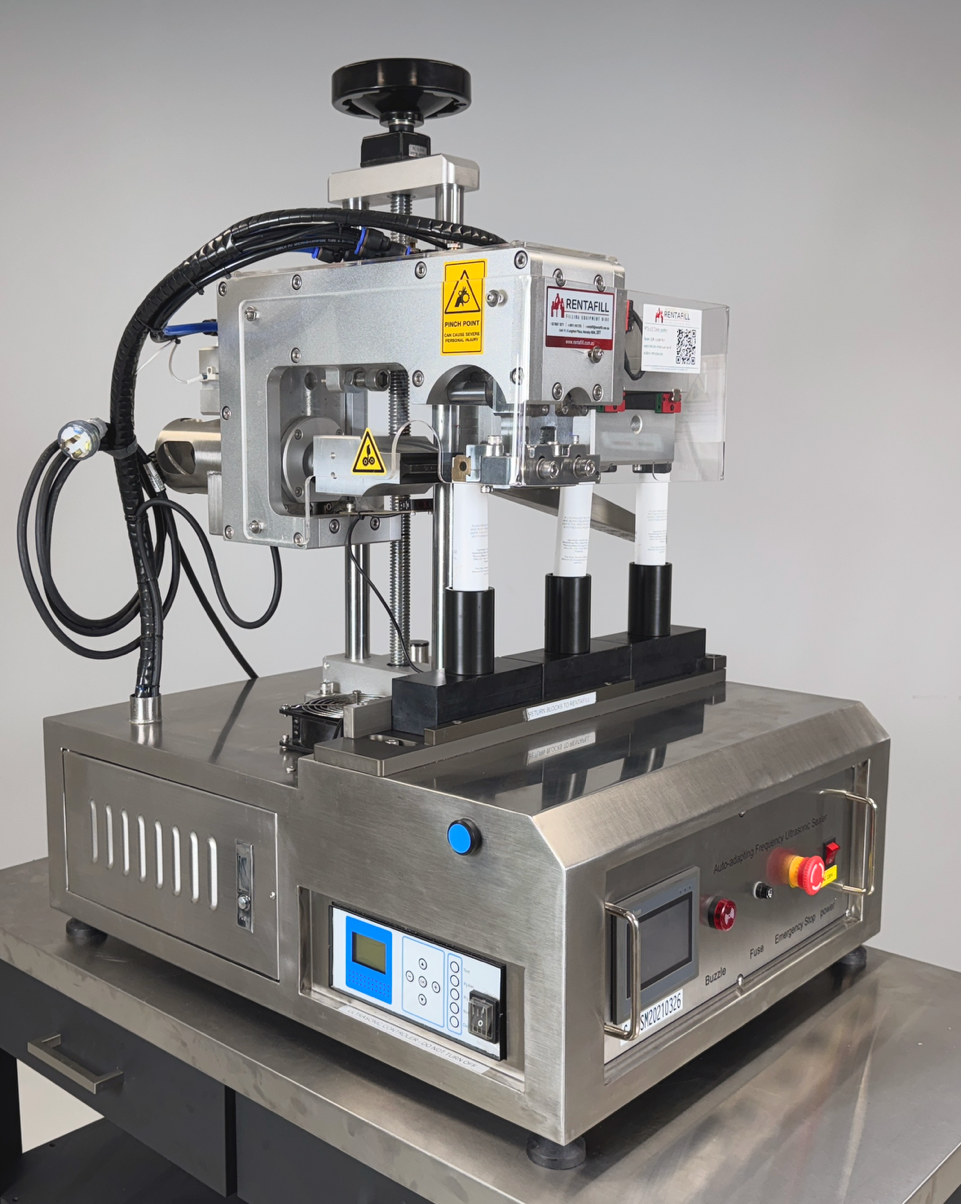

RTS-15 ultrasonic tube sealing machine

How hiring works

  • Standard tube holders included: we have common sizes in stock, free to use with the hire. Send us a sample tube and we’ll match the holder.
  • Set up and tested on your tubes before it leaves us.
  • Free phone and video support for the whole hire.
  • Delivered Australia-wide.

How ultrasonic tube sealing works

Place the filled tube in its holder and start the cycle. The sealing head vibrates at 20 kHz, and the friction heats only the plastic where the tube walls meet, welding them together. The sealing jaws stay cool, so there is no melted, messy outer tube, and the seal is clean, strong and consistent. The pneumatic trimmer then cuts the tail to a neat, straight edge, and the code stamp can press a date or batch code into the seal at the same time.

Why hire the RTS-15

  • Clean, strong ultrasonic seals with no melted outer tube.
  • Seal, trim and code in one cycle, with the PLC pneumatic trimmer and 8-character code stamp.
  • Guide speed of about 10–15 tubes per minute, depending on the operator and product.
  • Aluminium and stainless steel construction for easy cleaning.
  • Adjustable worktable for quick changes between tube sizes.
  • Try it on your own tubes before you buy.

Tubes it seals

  • Plastic (PE) tubes for creams, gels, toothpaste and ointments.
  • Laminate tubes for cosmetics, pharmaceuticals and food.
  • Lip balm and small tubes.
  • Tubes up to 50 mm diameter and 210 mm tall.

The RTS-15 does not seal aluminium tubes, which are folded and crimped rather than welded.

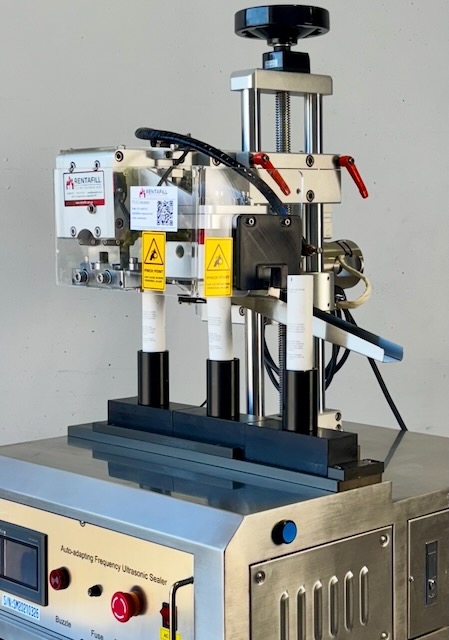

RTS-15 tube sealer sealing head and tube holders
Sealing head and tube holders.

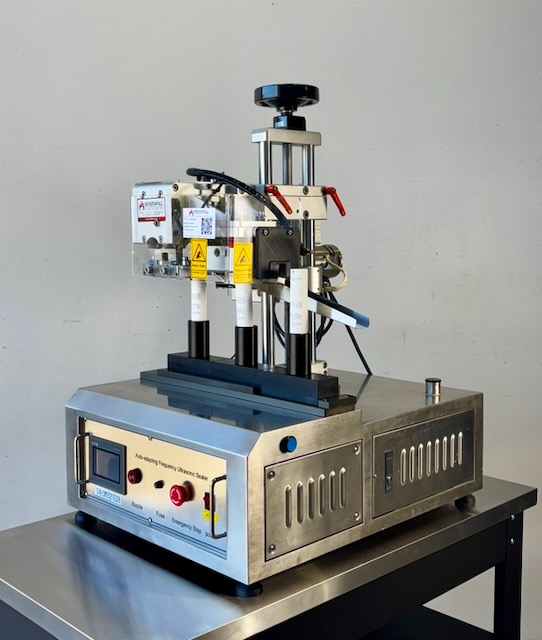

RTS-15 tube sealer front view with control panel
Front controls.

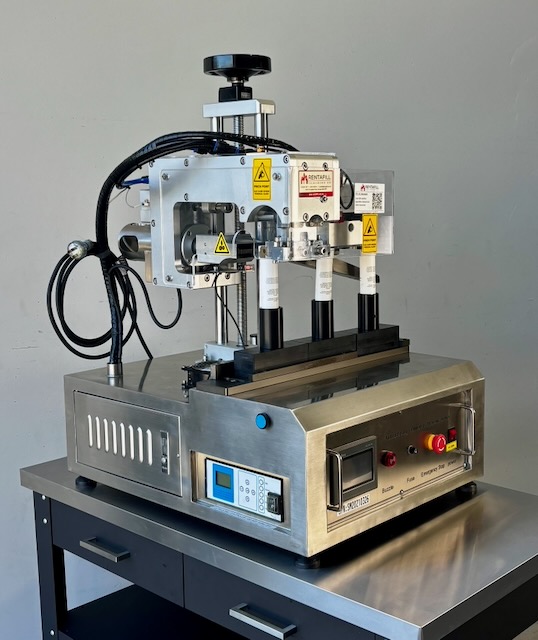

RTS-15 ultrasonic tube sealer on a stainless bench
Compact benchtop footprint.

Specifications

Type Benchtop ultrasonic tube sealer with pneumatic trimmer
Sealing Ultrasonic, 20 kHz, 1 kW
Tubes Plastic (PE), laminate and lip balm tubes, up to 50 mm diameter and 210 mm tall. Not for aluminium tubes.
Trimmer PLC-controlled pneumatic trimmer, working with the sealing head
Coding Date and batch codes stamped into the seal, up to 8 characters (0–9, A–Z, / and -)
Worktable Independent platform, adjustable vertically and horizontally
Construction Aluminium and stainless steel
Guide speed About 10–15 tubes per minute, depending on the operator and product
Power Single phase 220–240 V, 50/60 Hz
Air supply 0.7–0.8 MPa (700–800 kPa)
Operating conditions 0 to 35°C, humidity below 85%
Dimensions (w x d x h) 644 x 497 x 900 mm
Weight About 90 kg

Tube holders and code digits

Each tube size needs a holder to keep it upright and aligned under the sealing head. We also make custom holders to suit your exact tube: 3D printed tube holders or machined acetal tube holders, each in sets of 3. Extra code digits (0–9, A–Z, / and -) are available for the batch code stamp. See all RTS-15 parts.

Labelling your tubes too?

The Compact-A-Tube applies labels to plastic and metal tubes on an expanding mandrel. Hire the Compact-A-Tube or see it for sale.

Call our Sydney team on 02 9987 1871.

Frequently Asked Questions

Common questions about hiring the RTS-15 tube sealer.

What is the RTS-15?

A benchtop ultrasonic tube sealer that welds, trims and codes plastic and laminate tubes in one cycle.

What tubes can the RTS-15 seal?

Plastic (PE) tubes, laminate tubes and lip balm tubes, up to 50 mm in diameter and 210 mm tall.

Can it seal aluminium tubes?

No. Ultrasonic sealing welds plastic, and aluminium tubes are folded and crimped instead, so the RTS-15 is not suited to them.

Why ultrasonic instead of a heat sealer?

Ultrasonic sealing heats only the plastic where the tube walls meet, not the jaws, so you get a clean, strong seal without melted or marked tubes.

Do I need tube holders?

Yes, each tube size needs a holder. Standard sizes are free to use with the hire, and we can make custom 3D printed or machined holders to suit your tube.

Can it print a batch or date code?

Yes. The code stamp presses up to 8 characters into the seal as it is made. Extra code digits are available.

How fast is it?

As a guide, about 10 to 15 tubes per minute, depending on the operator and the product.

What do I need to run it?

Single phase power, a compressed air supply of 0.7 to 0.8 MPa, and a sturdy bench, as the machine weighs about 90 kg.

What is the minimum hire?

The minimum hire is 7 days.
