Kleintek W Series Automatic Wrap-Around Labeller – Australian Made

The Kleintek W Series is an automatic inline labeller for wrap-around labels on round bottles, jars and tubs, designed and built by Kleintek in Euroa, Victoria. Omron PLC and servo drives, a servo-driven label applicator and Motovario gear motors. Customised to suit, with clear label sensing, coders and thermal printers available. 12-month warranty. Contact us for pricing.

Price on application

Pricing depends on how the machine is configured. Tell us a little about your application and we'll come back with a quote.

Prefer to talk? Call us on 02 9987 1871

Finance available on all new machines

Spread the cost with flexible equipment finance through our partner Rangeland Capital, an Australian finance specialist. Just tick "I'm interested in finance" on your enquiry. Learn more about finance

SKU: NEW-KLEINTEK-W Categories: , , Brand:

Kleintek W Series – Australian-Made Automatic Wrap-Around Labeller

The Kleintek W Series is an Australian-made automatic inline labeller for round containers. It uses wrap-in-place labelling: each bottle or jar is held and rotated in capture rollers while the label is applied, for straight, accurate wrap-around labels on every container. It runs on its own conveyor on a mobile trolley, so it can work on its own or line up with your filler and capper. Designed and built by Kleintek in Euroa, Victoria.

Australian flag

Designed and made in Australia

Designed, built and tested by Kleintek in Euroa, Victoria, with Australian parts support and service.

Want to try it on your containers first? The Kleintek W Series is also available to hire. See Kleintek W Series hire.

Kleintek W Series labeller 12 month warranty badge

Built to last, backed for longer

12-month warranty on every new Kleintek W Series

Plus free phone and video support from our Sydney team. T&Cs apply.

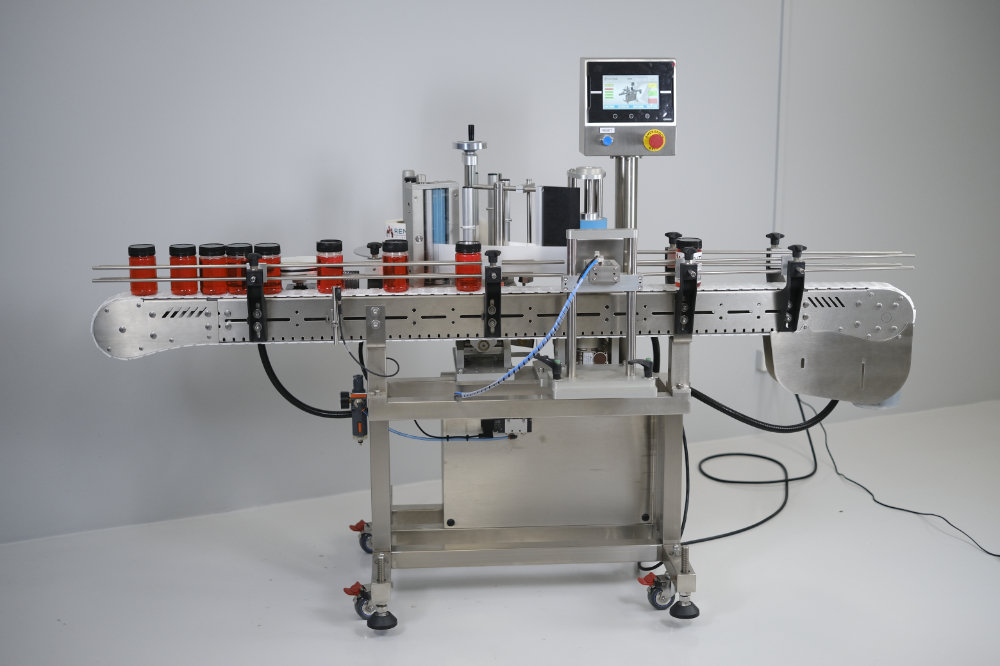

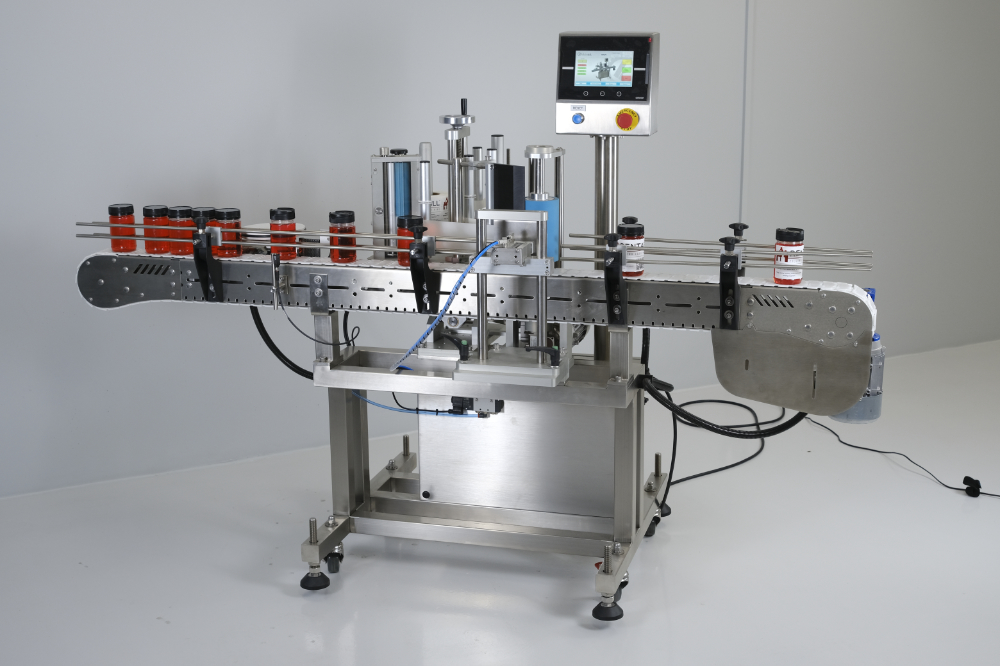

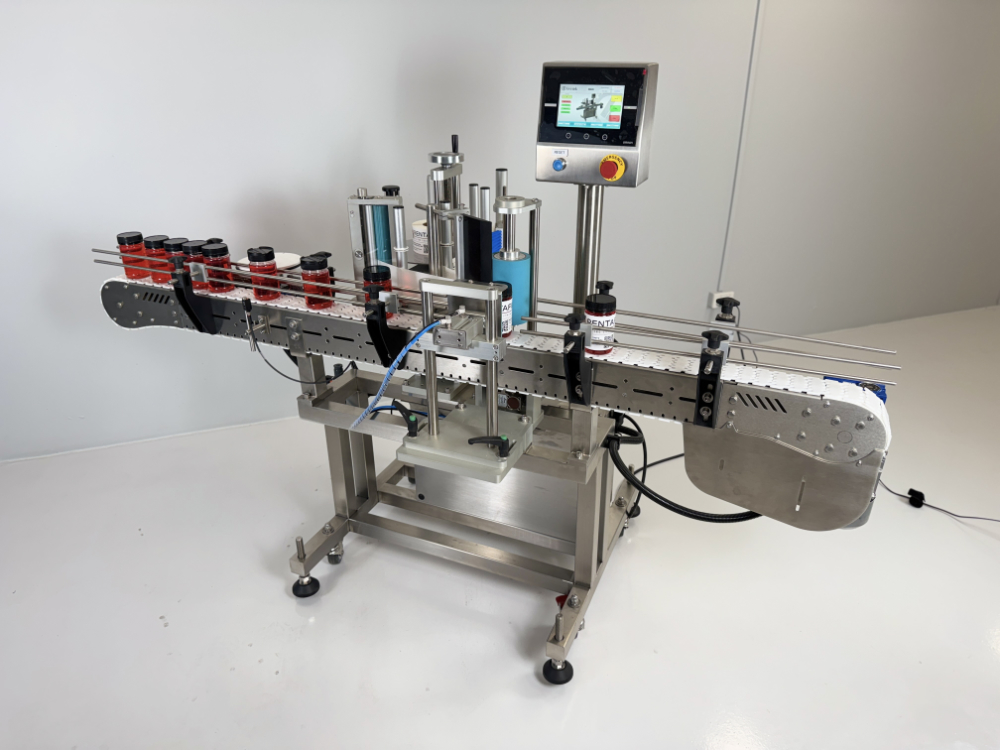

Kleintek W Series automatic wrap-around labeller labelling jars on its conveyor

How wrap-in-place labelling works

Containers travel along the conveyor until a photo-reflective sensor detects each one. Pneumatic capture rollers hold the container and spin it in place while the label is fed onto it, so the label wraps on straight and tight. The container is then released and carries on down the line. An electric fork sensor reads the gap between labels on the roll and stops each label in exactly the right position, with a stop accuracy of ±0.1 mm.

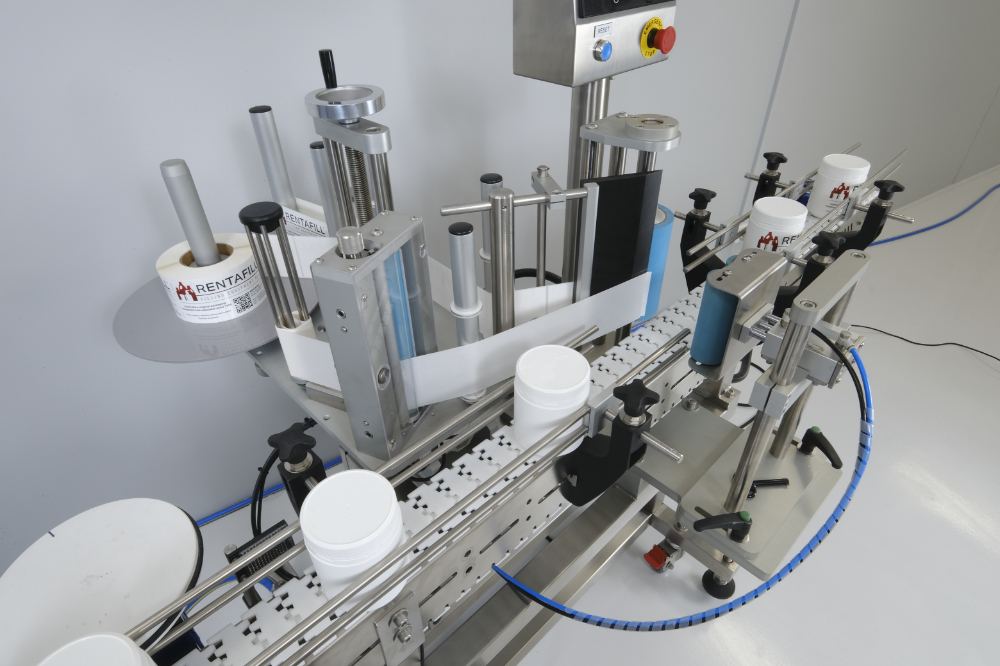

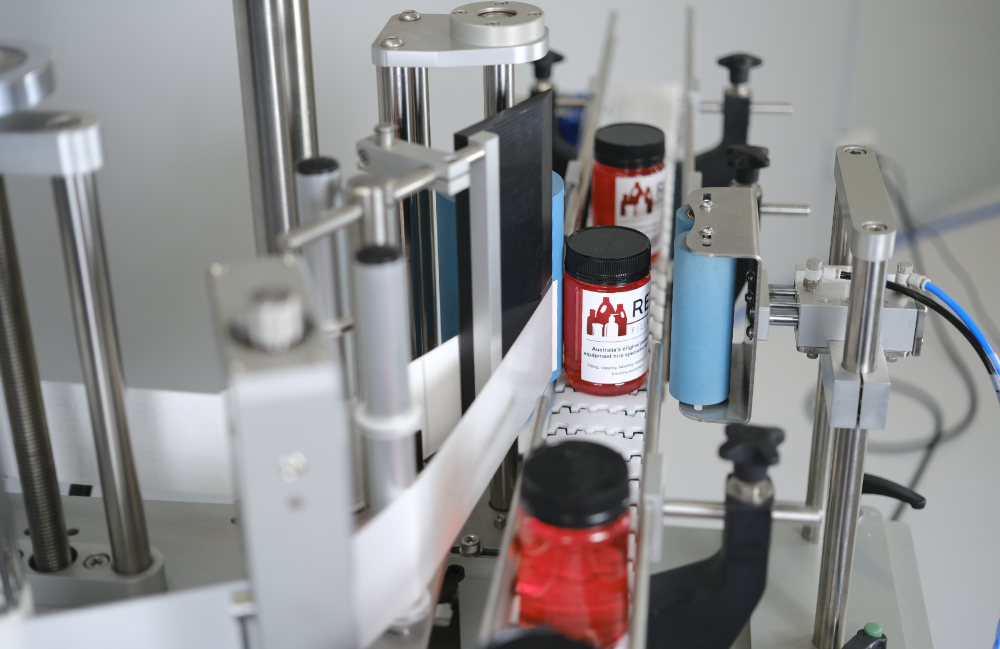

Kleintek W Series applying a wrap-around label to a jar held in the capture rollers
Capture rollers hold and spin the jar while the label goes on.

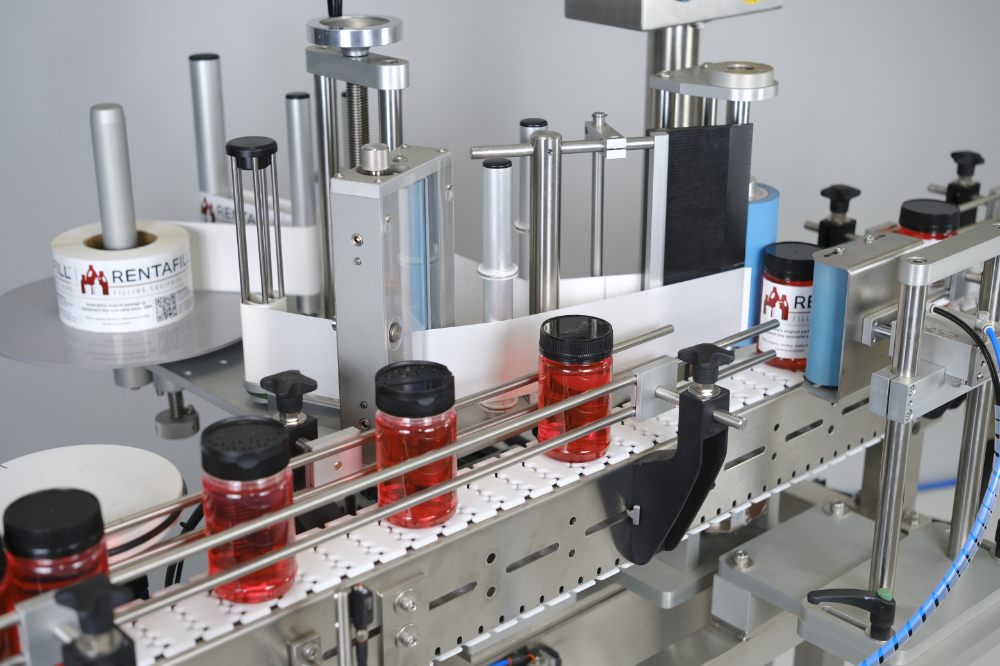

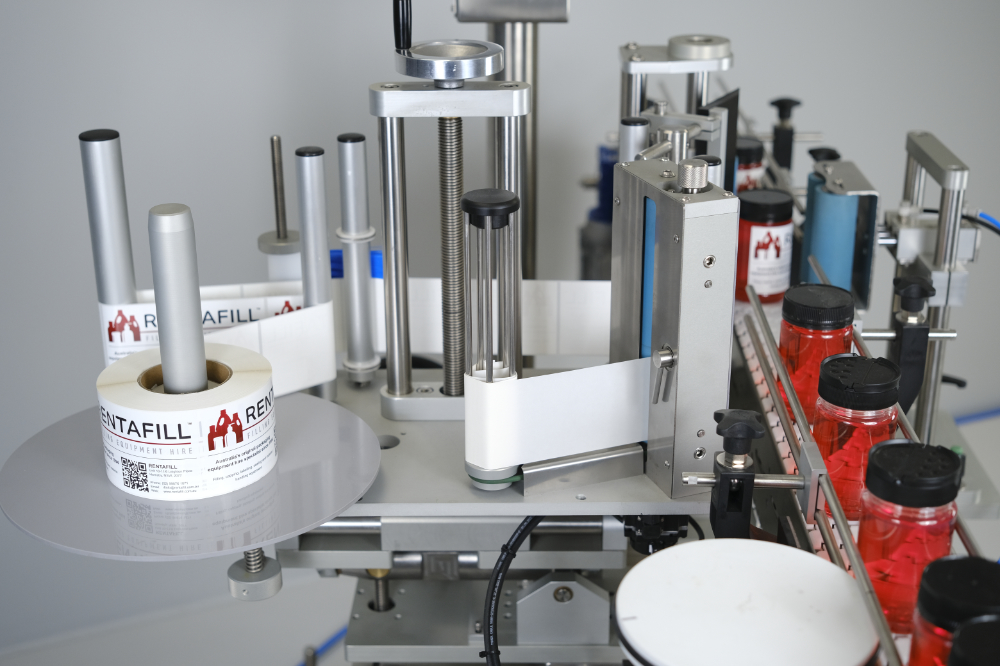

Kleintek W Series label roll, applicator and jars on the conveyor
Label roll, applicator and conveyor.

Why choose the Kleintek W Series

  • Accurate wrap-around labels: the container is held and rotated in place while the label goes on, for straight, repeatable placement.
  • Precise label stop: a fork gap sensor stops each label to ±0.1 mm.
  • Wide label range: labels 15 to 215 mm high and 20 to 400 mm long, on rolls up to 335 mm across.
  • Fits into your line: mounted on a mobile trolley with a 2 metre conveyor, height adjustable around 900 mm to line up with your filler and capper.
  • Easy set-up: touchscreen control, with password-protected advanced settings so operators can’t change the set-up by accident.
  • Simple services: runs on standard 240 V single-phase power and 5 bar compressed air.
  • Australian made by Kleintek, with local parts and support.

Australian made, without compromise

The W Series is designed and built by Kleintek in Euroa, Victoria. It isn’t an imported machine with a local badge: it is engineered and assembled in Australia, and built without cutting corners on the parts that matter.

  • Omron PLC and drives: proven industrial control, with Omron servo drives and touchscreen.
  • High-quality servo motor drives the label applicator, for accurate, repeatable label placement at every speed.
  • Motovario gear motors on the conveyor and drives, built for continuous production.
  • Heavy-duty stainless steel construction on a mobile trolley, made to last in a working factory.
  • Local support: parts, service and know-how from an Australian manufacturer and our Sydney team, not from overseas.

Specifications

Type Automatic inline wrap-around labeller (wrap-in-place)
Labels 15 to 215 mm high, 20 to 400 mm long, 2.5 mm minimum gap
Label roll 76 mm core, up to 335 mm outside diameter
Label stop accuracy ±0.1 mm
Label dispensing speed 3 to 32 m/min, adjustable
Product detection Photo-reflective product sensor and electric fork label gap sensor (clear label sensor available)
Product handling Pneumatic capture rollers rotate the container while the label is applied
Applicator adjustment Height 0 to 260 mm, horizontal 0 to 150 mm, tilt ±8°
Conveyor 95 mm wide, 2000 mm long, 6 to 25 m/min, height 900 mm (adjustable)
Frame Stainless steel, on a mobile trolley

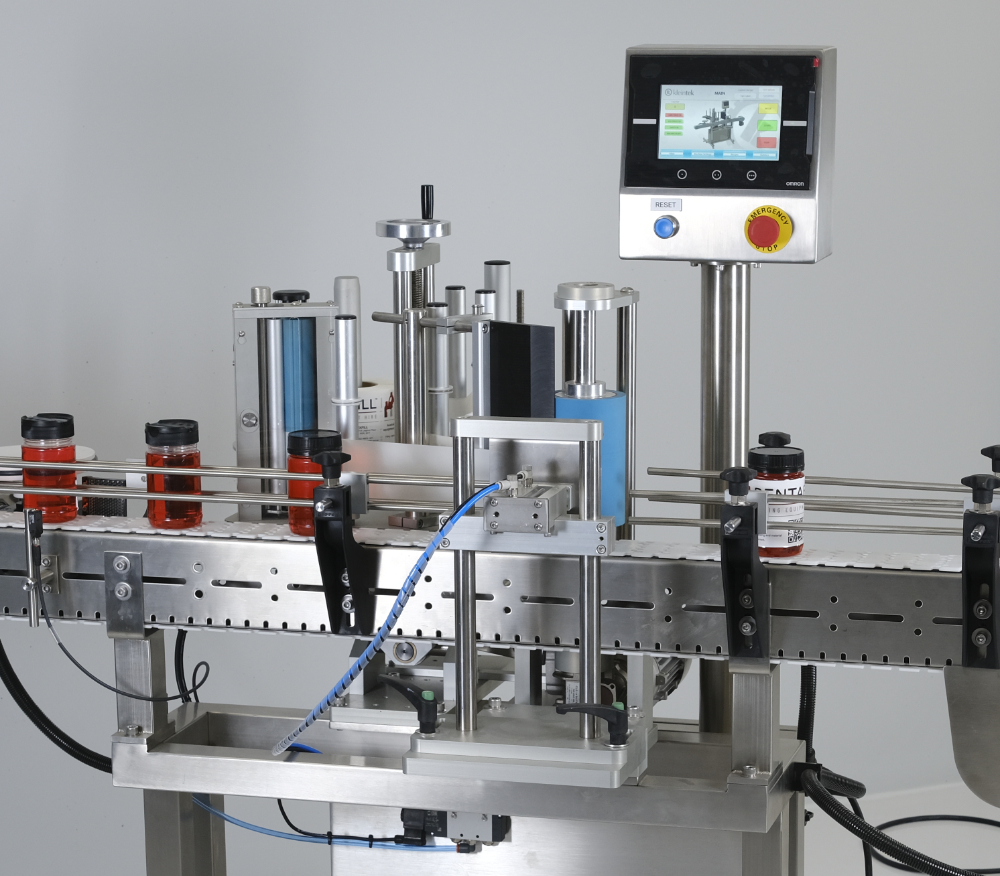

Control Omron PLC and touchscreen, with operator and password-protected user access levels
Drives and motors Omron servo drives, servo-driven label applicator, Motovario gear motors
Power 240 V 50 Hz single phase
Air supply 5 bar compressed air
Made by Kleintek, Euroa, Victoria, Australia
Warranty 12 months (T&Cs apply)

Customised to suit your product

Every line is different, so the W Series can be built and set up to suit your containers, labels and line. Options include:

  • Clear label sensing for clear-on-clear and no-look labels
  • Inkjet coders to print date and batch codes, such as the Meenjet MXPlus batch code printer
  • Thermal transfer printers to print codes and variable data onto the label before it’s applied
  • Product orientation, so the label lines up with a feature on the container
  • Spacer wheel to separate and evenly space containers before labelling
  • Custom guides and change parts to suit your containers

Tell us about your containers, labels and line and we’ll tell you what set-up suits.

Build a line

ICP-M2RV twin head filler

Australian-made automatic piston filler with bottom-up fill.

ICP-AC1 Auto Capper

Automatic pneumatic capper that sits on your conveyor.

Meenjet MXPlus

Batch and date code printer with unlocked ink.

Call our Sydney team on 02 9987 1871.

Frequently Asked Questions

Common questions about the Kleintek W Series labeller.

What is a wrap-in-place labeller?

An automatic labeller that holds each round container in rollers and spins it while the label is applied, so the label wraps around the container straight and tight. The container is then released down the conveyor.

What containers can it label?

Round containers such as bottles, jars and tubs. Labels can be 15 to 215 mm high and 20 to 400 mm long. Send us your containers and labels and we’ll confirm they suit the machine.

How accurate is the label placement?

The fork gap sensor stops each label to ±0.1 mm, and the container is held in the capture rollers while the label is applied, for consistent placement on every container.

What power and air does it need?

Standard 240 V 50 Hz single-phase power and 5 bar compressed air.

Can it work with my filler and capper?

Yes. It sits on a mobile trolley with its own 2 metre conveyor, height adjustable around 900 mm, so it can line up with fillers and cappers such as the ICP-M2RV and ICP-AC1.

How fast is it?

Speed depends on your containers, labels, product and the rest of your line, so we don’t quote a number. The labeller is rarely the limit. The best way to know is to hire one and try it with your own containers and labels.

What warranty does it have?

Every new Kleintek W Series comes with a 12-month warranty, plus free phone and video support from our Sydney team. T&Cs apply.

Can I hire one before I buy?

Yes. The Kleintek W Series is available to hire, so you can try it on your own containers and labels first.

Is the Kleintek W Series Australian made?

Yes. It is designed and built by Kleintek in Euroa, Victoria, using Omron PLC and servo drives, a high-quality servo motor on the label applicator and Motovario gear motors. Parts and service are available locally.

Can it apply clear labels?

Yes. A clear label sensor is available for clear-on-clear and no-look labels.

Can it print date and batch codes?

Yes. It can be fitted with an inkjet coder to print onto the container or label, or a thermal transfer printer to print codes and variable data onto the label before it’s applied.
