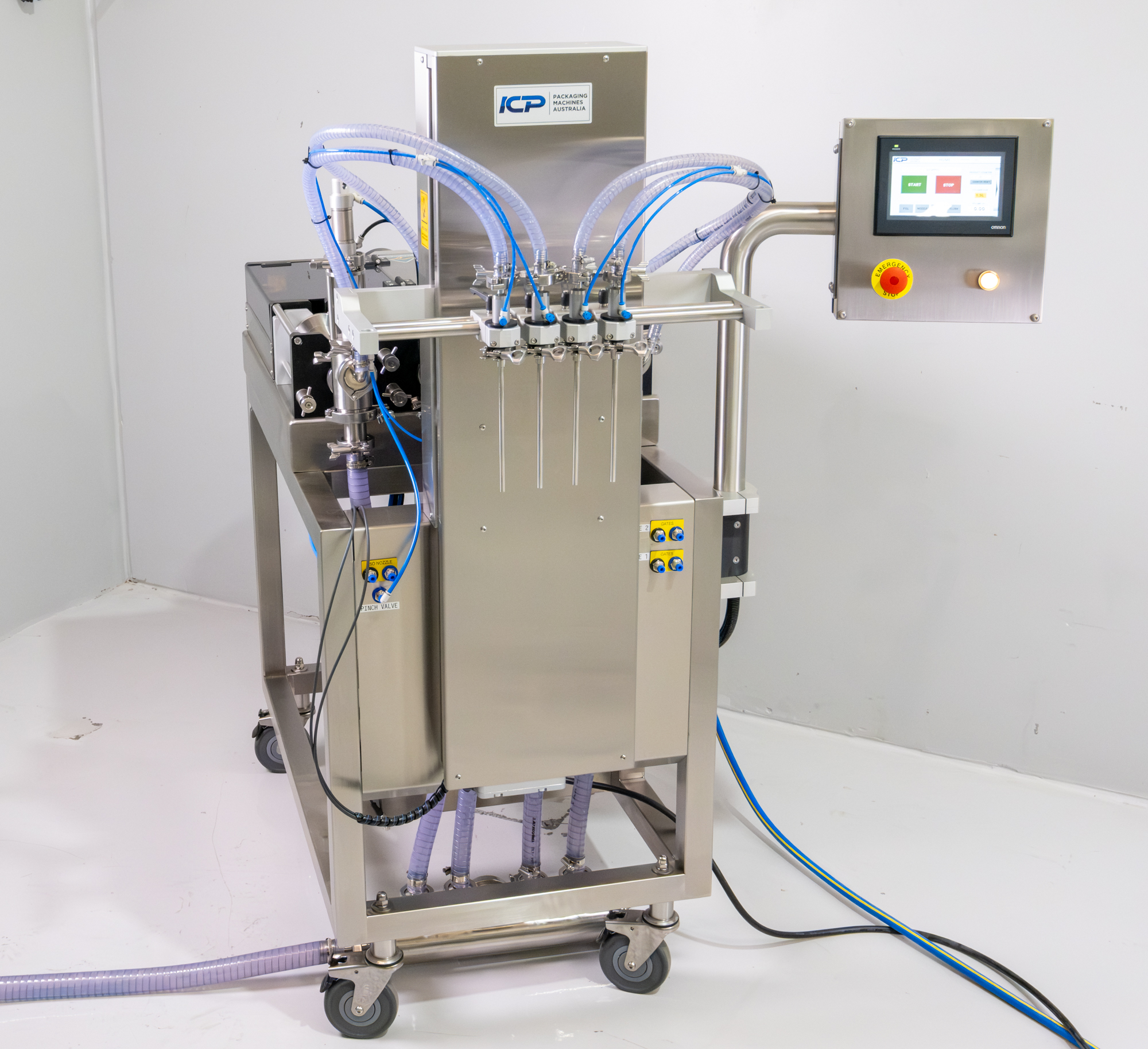

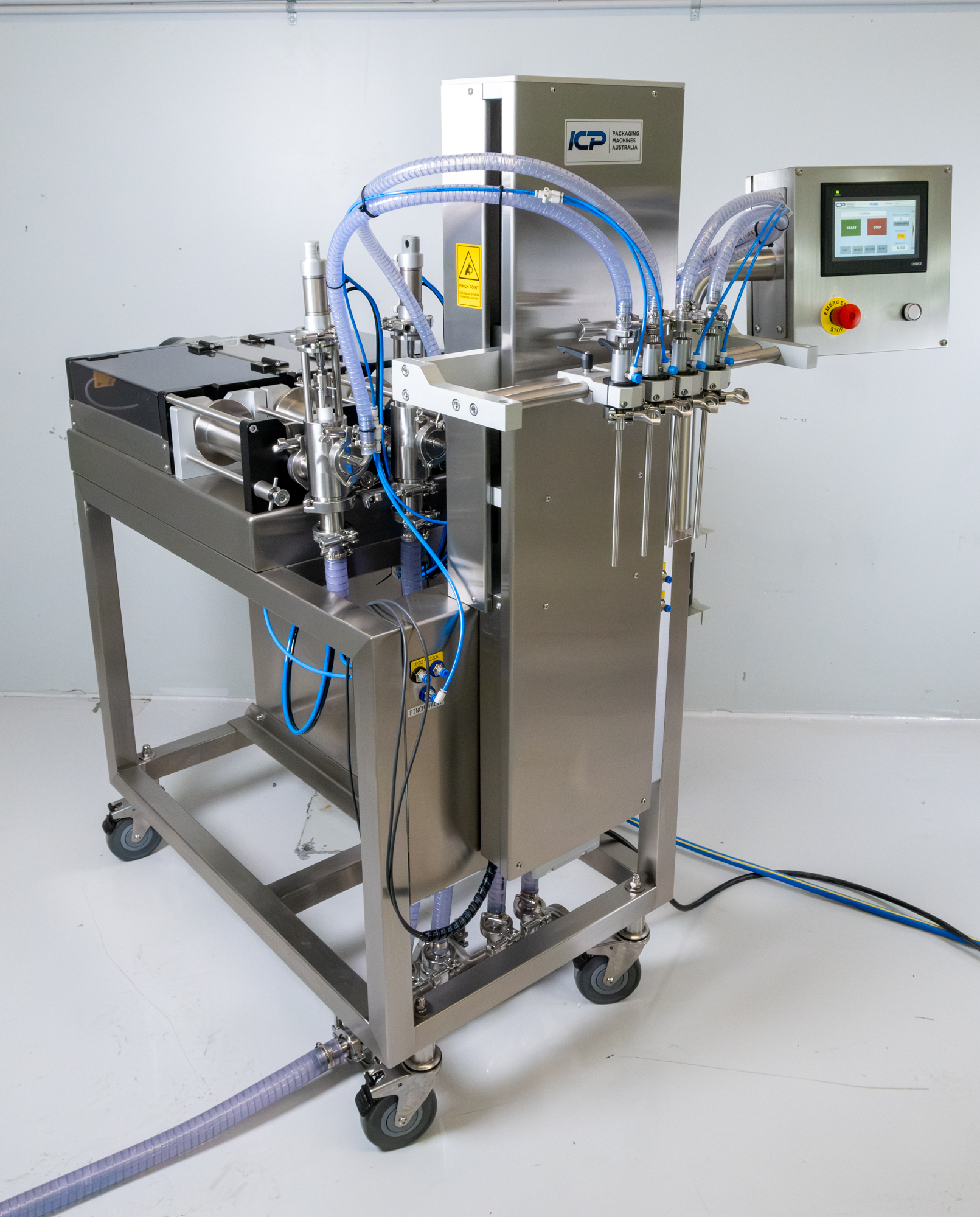

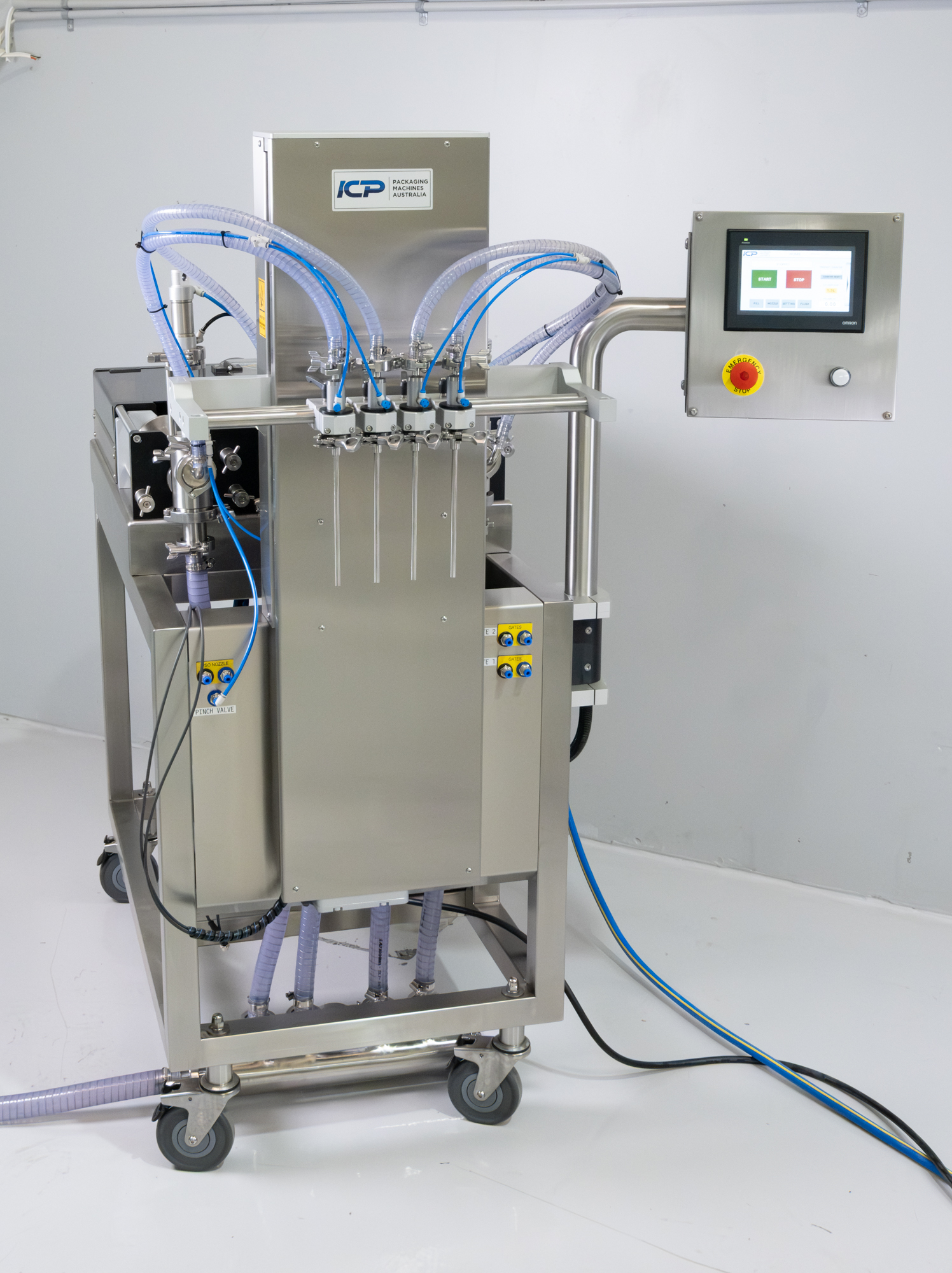

ICP-M4SA 4 Head Servo Automatic Filling Machine – Australian Made

The ICP-M4SA is an Australian-made 4 head servo automatic filling machine. It fills four containers at a time over a conveyor, from 14 ml to 1.3 litres, with servo-driven pumps, bottom-up filling and PLC touchscreen control. Contact us for configuration and pricing.

Price on application

Pricing depends on how the machine is configured. Tell us a little about your application and we'll come back with a quote.

Prefer to talk? Call us on 02 9987 1871

Finance available on all new machines

Spread the cost with flexible equipment finance through our partner Rangeland Capital, an Australian finance specialist. Just tick "I'm interested in finance" on your enquiry. Learn more about finance

ICP-M4SA 4 Head Filling Machine – Australian-Made Servo Automatic Filler

The ICP-M4SA is our Australian-made 4 head servo automatic filling machine. It fills four containers at a time over a conveyor, from 14 ml to 1.3 litres, with servo-driven pumps, bottom-up filling and PLC touchscreen control. It is built for small and medium businesses and contract packers that need high output, fast changeovers and consistent fills without a highly skilled operator.

Want to try it on your product first? The ICP-M4SA is also available to hire. See ICP-M4SA hire.

ICP-M4SA 12 month warranty badge

Built to last, backed for longer

12-month warranty on every new ICP-M4SA

Plus free lifetime support from the Australian team who designed and build it. T&Cs apply.

Australian Made and Owned logo

Australian Made and Owned

Designed and built in Sydney by ICP Packaging Machines Australia.

ICP-M4SA 4 head servo filling machine filling bottles on a conveyor, with PLC touchscreen

Servo filling, made for SMEs

Servo-driven filling with programmable control used to mean custom-built equipment priced for large manufacturers. The ICP-M4SA brings it to small and medium businesses and contract packers. A servo motor drives a ball screw pump, so every fill is the same, and the PLC lets you shape every fill. You set the speed of both the pump and the bottom-up fill through the cycle: start slow, ramp up through the middle, then slow down for the neck of the container. That gives a clean, accurate finish with no splashing or overflow, even with foamy or thin products. Read how the ICP-M4SA brings servo filling to SMEs.

Why choose the ICP-M4SA

  • Built to last: high-quality Omron servo drives, PLC and HMI touchscreen.
  • High output: four heads fill about 20 to 60 containers a minute as a guide, depending on product and container.
  • Speed profile through every fill: set both the fill speed and the bottom-up fill speed through the cycle. Start slow, ramp up through the middle, then slow down at the neck of the container for a clean, accurate finish with no splashing or overflow.
  • Changeovers in minutes: save and recall up to 20 setups, so switching products doesn’t mean recalibrating.
  • Fine-tune while filling: adjust the fill on the touchscreen without stopping the line.
  • Less product giveaway: servo control delivers the same fill, cycle after cycle.
  • Bottom-up filling for foamy, thick or delicate products, and products up to 90°C.
  • Easy to clean: 316 stainless, food-grade contact parts come off without tools.
  • Very low air use: needs only about 20 litres a minute of compressed air, so there’s no need for a large compressor or the hefty power bills to run one.
  • Serviceable: Festo and SMC components, available from major suppliers.

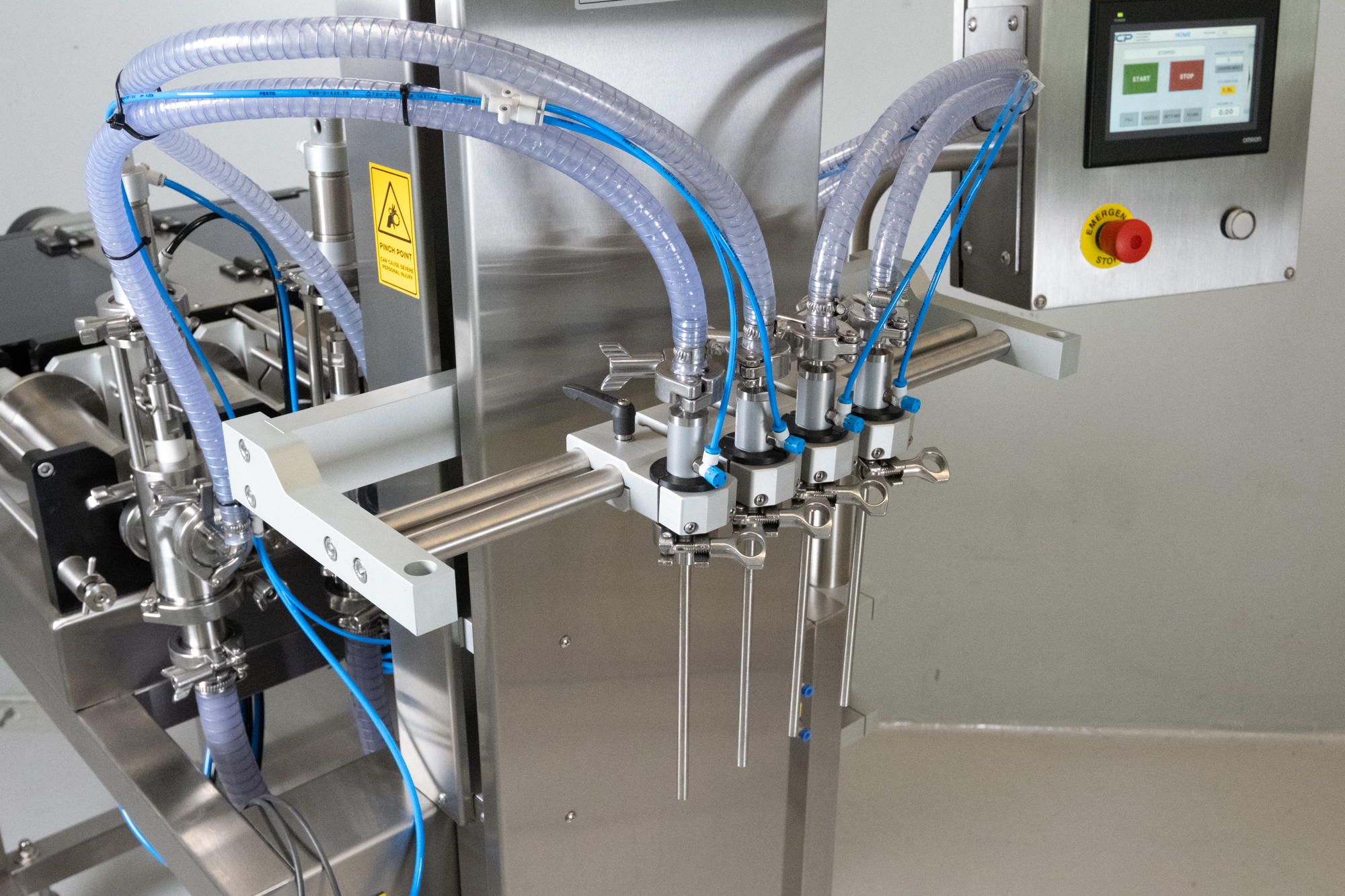

ICP-M4SA four pinch valve nozzles with PLC touchscreen and emergency stop
Four filling heads with pinch valve nozzles and the PLC touchscreen.

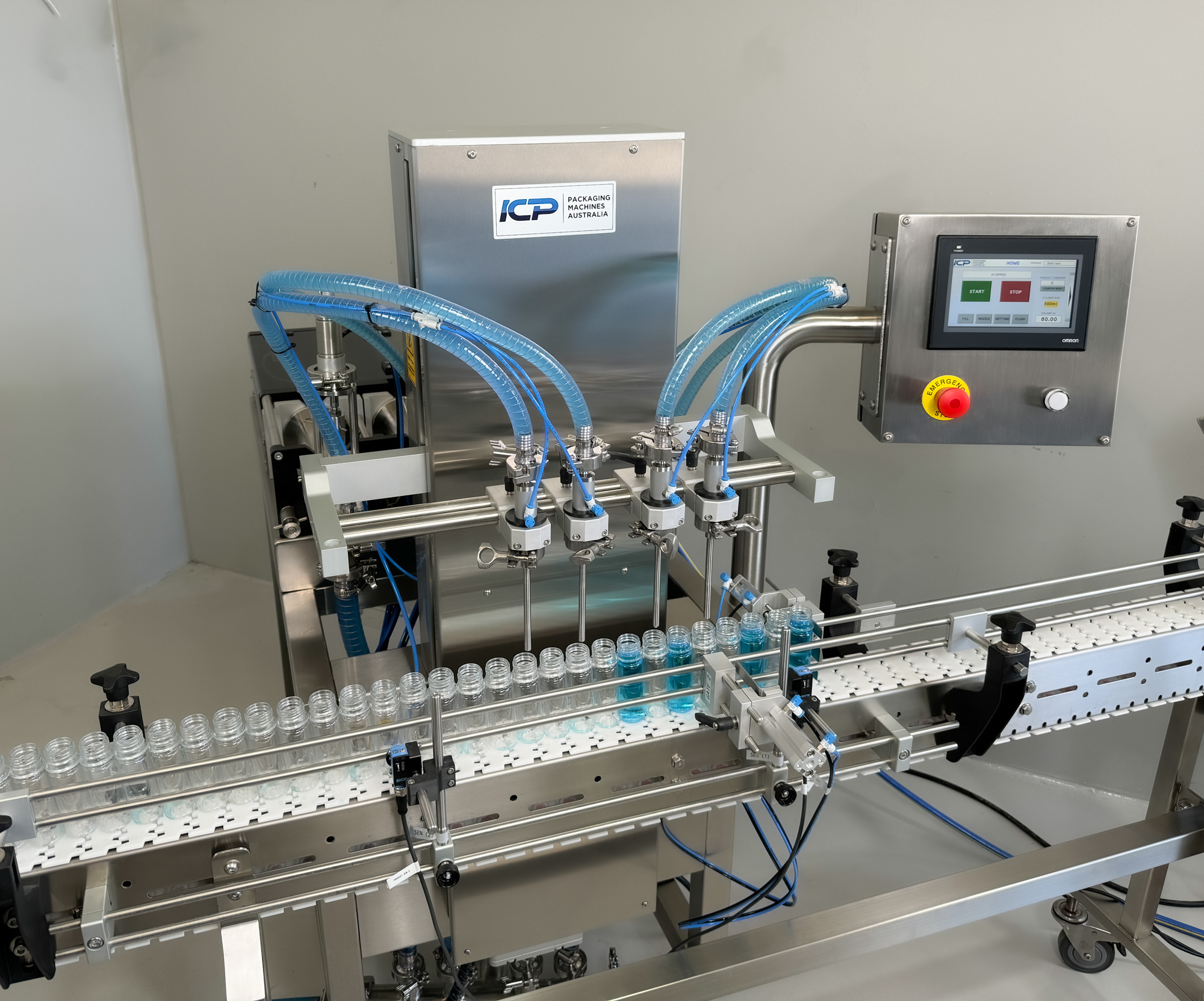

ICP-M4SA filling four containers at once on a conveyor
Filling four containers at once.

Specifications

Heads 4, inline automatic filler
Fill range 14 ml to 1.3 litres

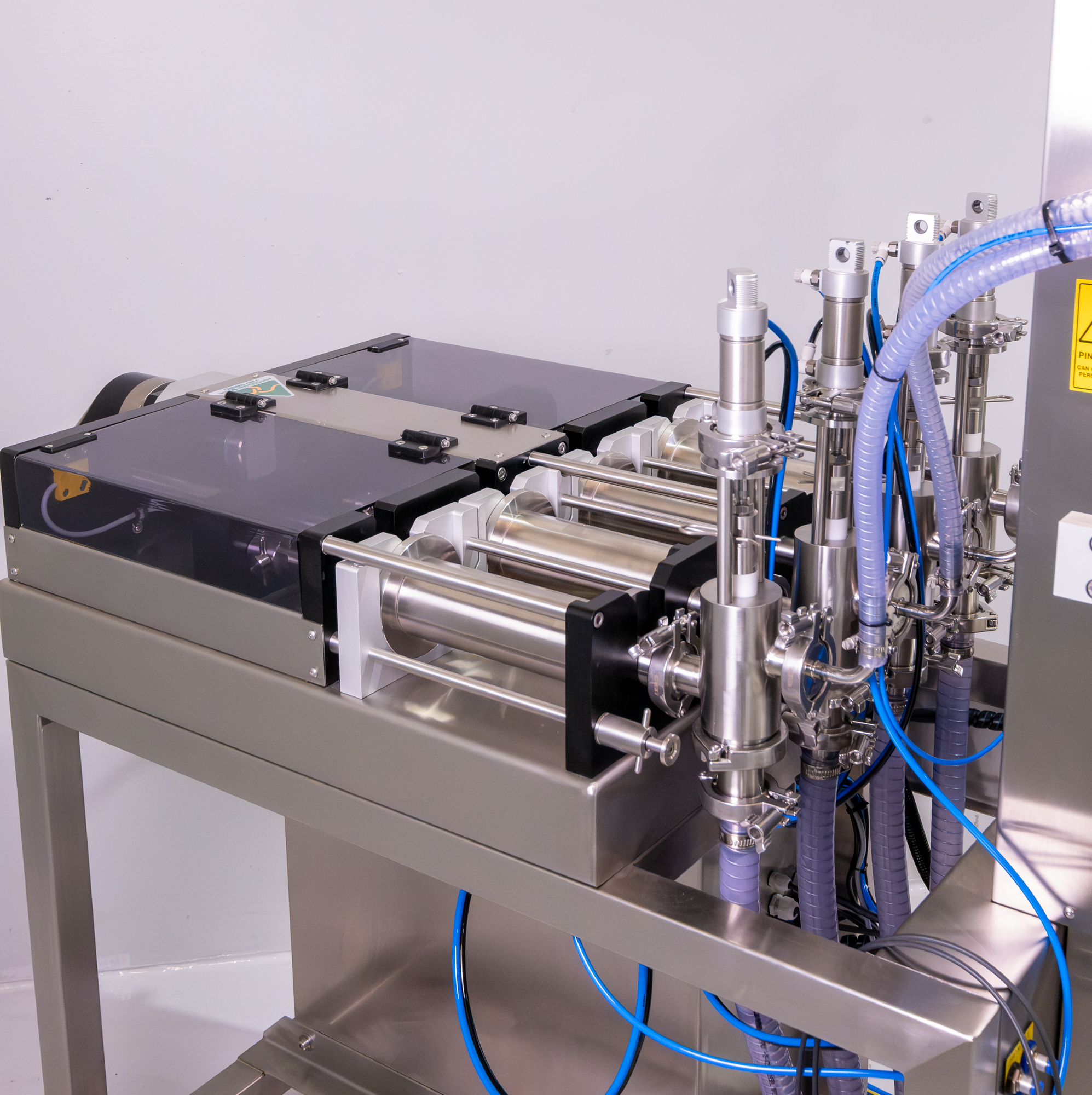

Product pistons 140, 320, 500 and 1300 ml, interchangeable
Fill rate About 20 to 60 per minute as a guide (filling 200 ml of water into open containers). Your speed depends on your product, containers and operators. Read why it’s only a guide.
Drive Omron servo drives, with a ball screw main pump
Filling Servo-driven bottom-up fill (BUF)
Controls Omron PLC and HMI touchscreen. Save and recall up to 20 setups, set the fill and bottom-up fill speed through each cycle, and fine-tune while filling
Product temperature Up to 90°C
Contact parts 316 stainless steel and food-grade materials, removed without tools
Pneumatics Festo and SMC components
Compressed air About 20 litres per minute
Container detection Container sensors built into the machine, with container gates as standard
Weight About 295 kg
Base 304 stainless steel trolley on lockable castors
Conveyor Not included, available separately

Options

  • Inlet connections from 1 to 3 inch
  • Nozzles: inward and outward opening PSO (positive shut-off), plug, suck-back and pinch valve nozzles
  • Extra product pistons: 140, 320, 500 and 1300 ml
  • Sensor upgrades, including IO-Link sensors
  • ICP modular conveyor

Other automatic fillers

ICP-M2RV

Twin head automatic filler for about 3 ml to 1.3 litres per head.

ICP-M5

Twin head automatic filler for 500 ml to 5 litres per head.

ICP-1 BUF Auto

Single-head automatic bottom-up filler over a conveyor.

Want to see it fill your product? Call the people who designed and build it on 02 9987 1871.

Run it as a complete line. The ICP-M4SA is part of our 4 head automatic bottle filling line, with conveyor, sorting table and accumulation table, set up and ready to run. Hire or buy the full line. See all full production lines.

Frequently Asked Questions

Common questions about the ICP-M4SA 4 head filling machine.

What is a 4 head filling machine?

A 4 head filling machine fills four containers at a time on a conveyor. The ICP-M4SA is a 4 head servo automatic filler, for higher output than single or twin head machines.

What is a servo filling machine?

A servo filling machine uses a servo motor to drive the pump, instead of a pneumatic cylinder. That gives precise, repeatable fills and lets you control the fill speed and bottom-up fill speed through each cycle.

Can I control the fill speed?

Yes. On the touchscreen you set the speed of both the fill and the bottom-up fill through the cycle. A typical profile starts slow, ramps up through the middle and slows down for the neck of the container, which stops splashing and overflow.

How fast is the ICP-M4SA?

As a guide, about 20 to 60 containers per minute, filling 200 ml of water into open containers. Your speed depends on your product, containers, operators and line, and the machine is rarely the limit, so the best way to know is to hire one and try it with your own product. It’s a guide only. Here’s why →

What fill volumes can it do?

From 14 ml to 1.3 litres, using interchangeable pistons of 140, 320, 500 and 1300 ml.

How long does a changeover take?

Minutes. The PLC saves and recalls up to 20 setups, so you can switch products without recalibrating, and fine-tune fills while the machine runs.

Does it come with a conveyor?

No. It sits over a conveyor supplied separately. We can supply an ICP modular conveyor to suit.

Can I hire an ICP-M4SA before I buy?

Yes. The ICP-M4SA is available to hire, so you can try it on your own product and containers.

What warranty does it come with?

A 12-month warranty (T&Cs apply), plus free lifetime support from the Australian team who designed and build it.
