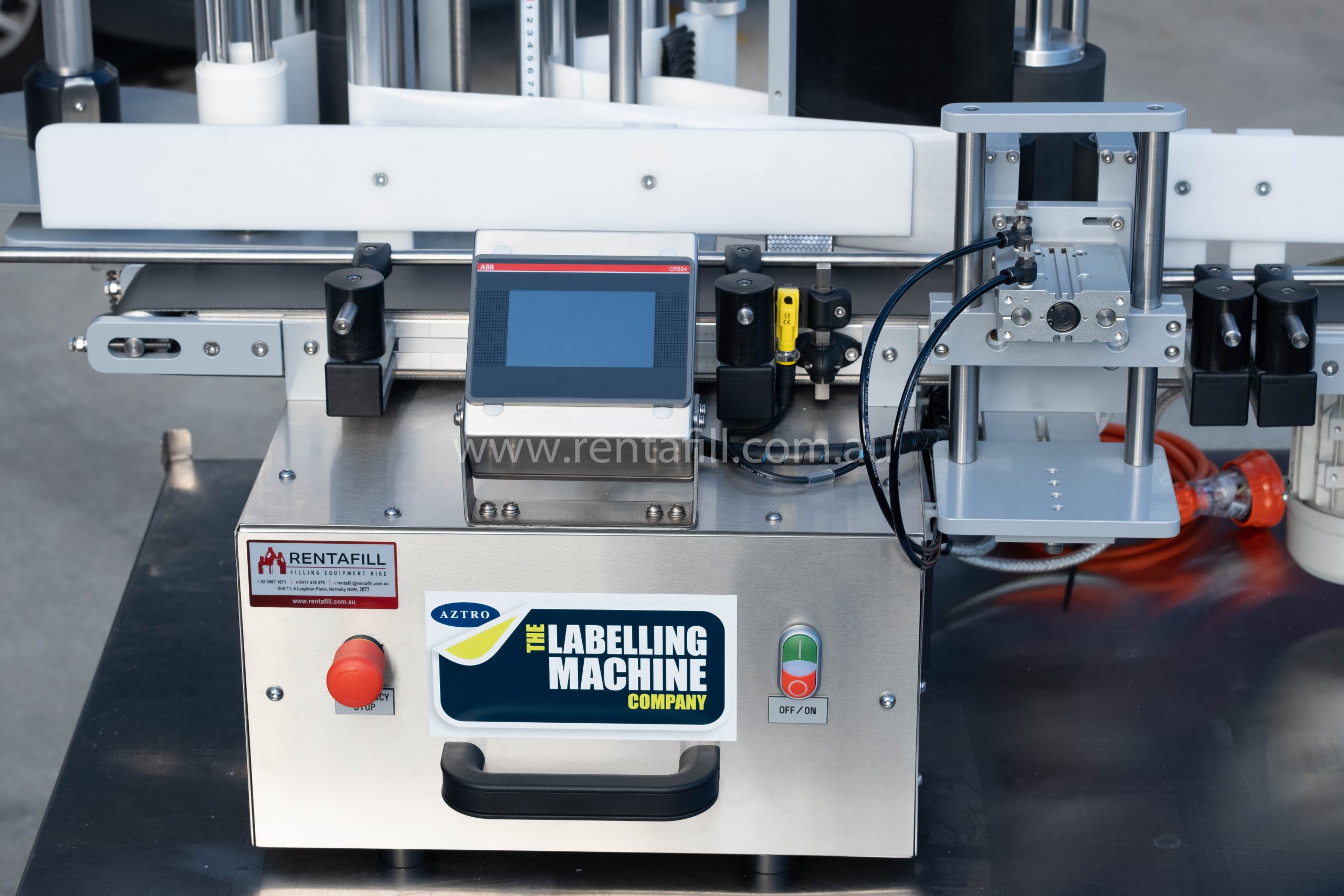

Aztro David G4 Wrap-In-Place Automatic Labeller
The Aztro David G4 Wrap-In-Place is an Australian-made automatic wrap around labeller for round bottles, jars and containers from 20 to 100 mm in diameter. It applies a single wrap-around label, or front and back labels, with each container held and rotated in place while the servo-driven label head applies the label. It is built as a standalone labeller with its own conveyor, on a benchtop or its stainless mobile frame. Available to hire, delivered Australia-wide.
Designed and made in Australia
Made in western Sydney by Aztro, The Labelling Machine Company, from extruded aluminium and stainless steel.
Only need single wrap-around labels? See the Aztro David G4 Belt-Wrap.

How wrap-in-place labelling works

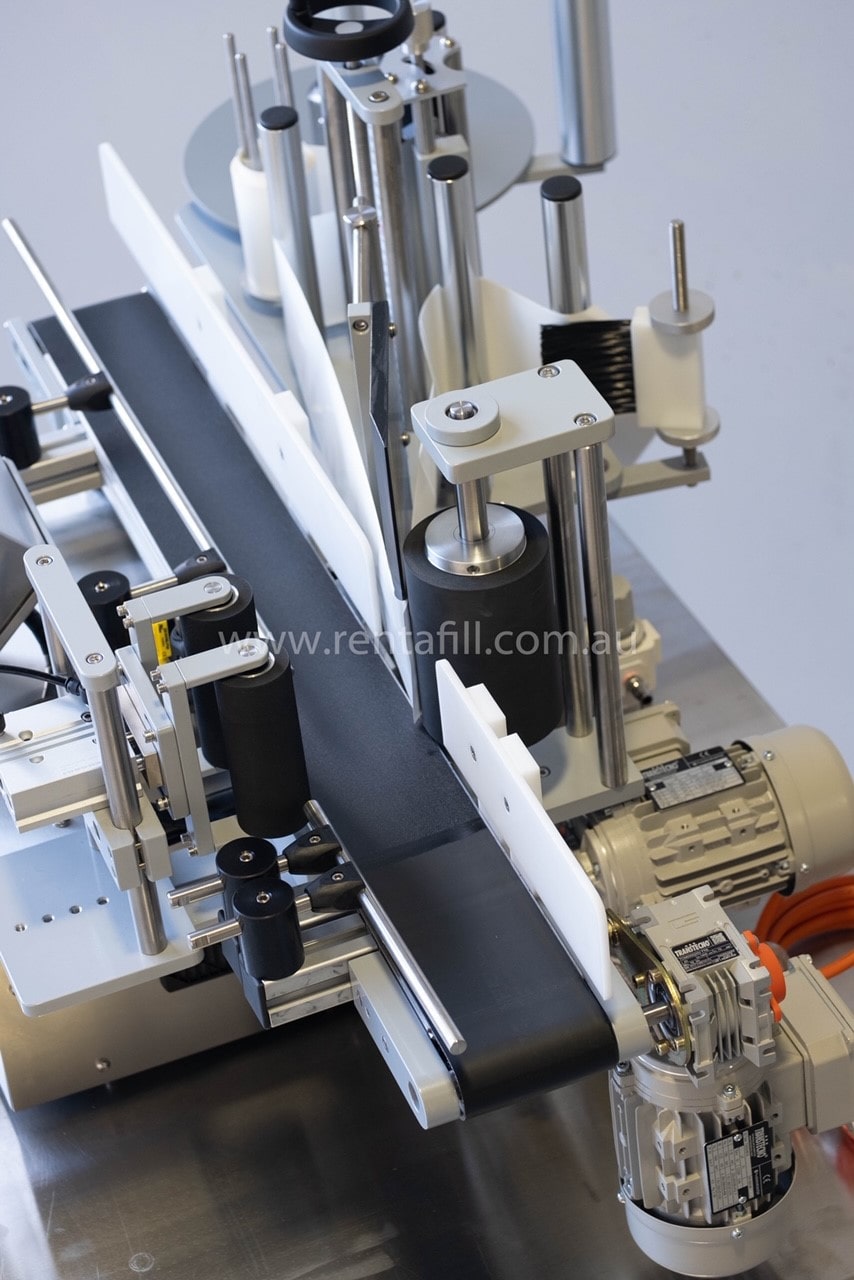

Containers travel along the 1 metre belt conveyor until each one is caught and held in place. The container is rotated while the servo-driven label head applies the label, so it goes on straight and tight, then it is released down the line. For front and back labels, the machine applies the second label at the gap you set on the touchscreen.


Why the Aztro David G4
- Australian made in western Sydney from extruded aluminium and stainless steel.
- Servo-driven label head for accurate, consistent label placement, to about ±1 mm.
- Touchscreen and PLC control, storing up to 50 label formats for quick changeovers.
- Standalone: runs on its own conveyor, on a benchtop or its stainless mobile frame, wherever you need it.
- Clear labels too, with clear label gap sensors.
- Free phone and video support for the life of the hire, delivered Australia-wide.
Specifications
| Type | Automatic wrap-in-place labeller, single or front and back labels |
|---|---|
| Containers | Round, 20 to 100 mm diameter |
| Label placement | ±1 mm (subject to container tolerances) |
| Label roll | Up to 300 mm diameter, 32 to 76 mm core |
| Label head | Servo-driven, side mounted, with wind up/down height adjustment and 2-way position adjustment |
| Control | Touchscreen and PLC, up to 50 stored label formats, label speed, offset and delay settings |
| Sensors | Clear label gap sensors |
| Conveyor | 1000 mm long, 100 mm wide belt conveyor |
| Label head height | 200 mm |
| Air supply | 6 bar (90 psi) maximum, dry continuous supply |
| Weight | About 90 kg |
| Frame | Stainless steel mobile frame with castors or adjustable legs, conveyor height about 900 mm |
| Power | 240 V single phase, 10 A |
| Made by | Aztro, The Labelling Machine Company, western Sydney, Australia |
See it in action
Automatic labellers for hire
| Aztro David G4 Wrap-In-Place (this machine) | Standalone labeller for single or front and back labels on round containers 20 to 100 mm. Australian made. |
|---|---|
| Aztro David G4 Belt-Wrap | Standalone labeller designed for single labels covering about 1/3 to 1/2 of round containers 20 to 100 mm. Australian made. |
| Kleintek W Series | High-quality inline wrap-around labeller for production lines, labels up to 215 mm high. Australian made. |
| Packleader ELF-50 | Lightweight, portable tabletop labeller designed for small runs of single wrap-around labels. |
Also for hire
Batch and date code printer.
Australian-made twin head automatic filler.
Australian-made automatic capper for your conveyor.
Call our Sydney team on 02 9987 1871.
Frequently Asked Questions
Common questions about hiring the Aztro David G4 Wrap-In-Place Automatic Labeller.
What is a wrap-in-place labeller?
An automatic labeller that holds each round container in place and rotates it while the label is applied, so the label goes on straight and tight before the container is released down the line.
What containers can it label?
Round bottles, jars and containers from 20 to 100 mm in diameter.
Can it apply front and back labels?
Yes. It applies a single wrap-around label, or front and back labels with the gap set on the touchscreen.
What power and air does it need?
240 V single-phase power and a dry, continuous compressed air supply of up to 6 bar (90 psi).
How fast is it?
Speed depends on your containers, labels, product and the rest of your line, so we don’t quote a number. The best way to know is to hire one and try it with your own containers and labels.
Is it Australian made?
Yes. It is made in western Sydney by Aztro, The Labelling Machine Company.
Can it work inline on my production line?
The Aztro David G4 is designed as a standalone labeller with its own conveyor. For inline labelling on a production line, the Australian-made Kleintek W Series range is designed for that job, and is also available to hire.
