ICP-M2RV Auto Multi Filler 2.5ml to 1.25 Litre

Description

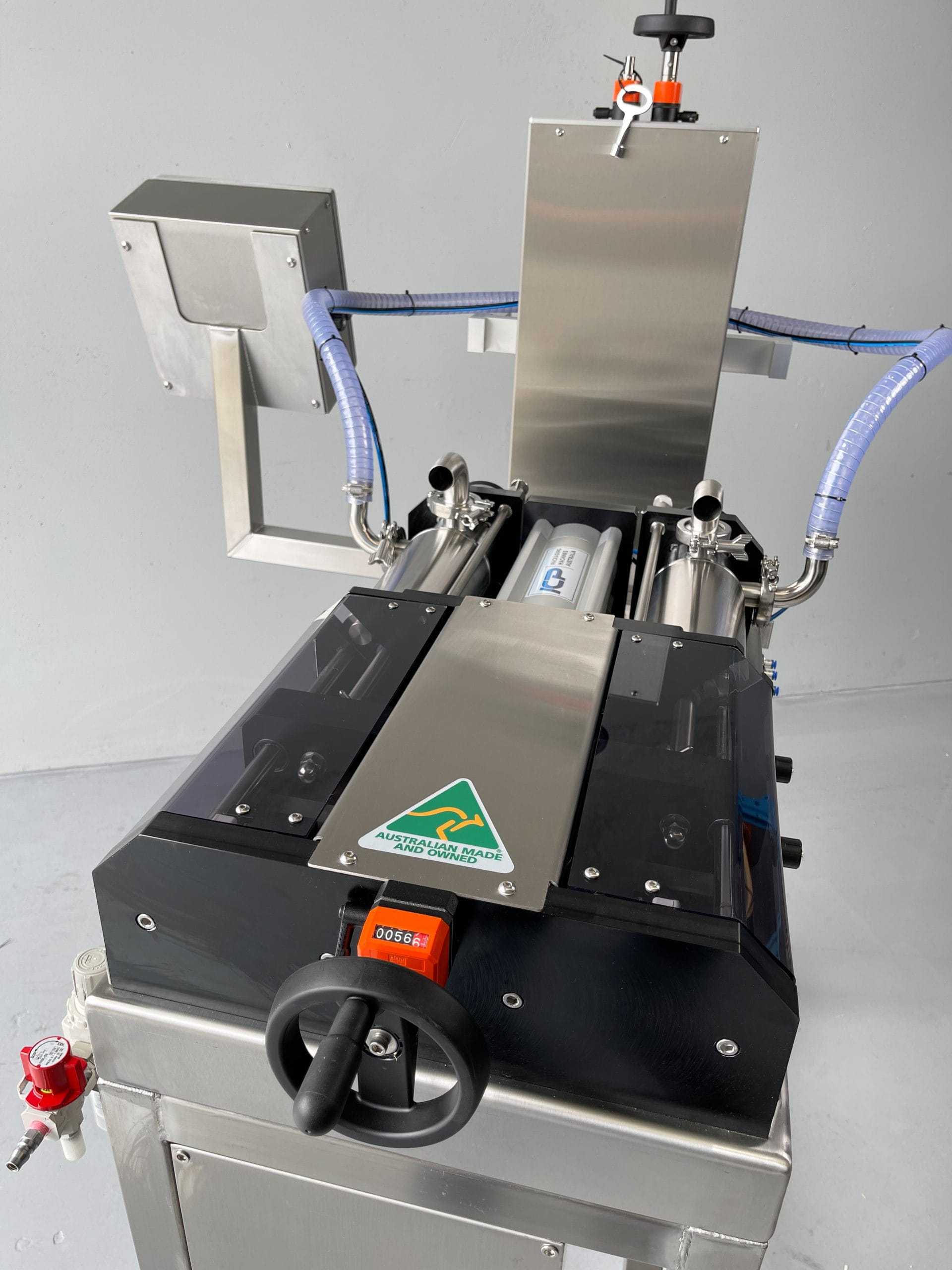

ICP-M2RV Australian designed and built heavy-duty, two head, twin-cylinder volumetric inline automatic filling machine.

Rotary Valve model with BUF attachment.

Filling range of 2.5ml – 1.25 litre.



A high-quality, heavy-duty machine built and designed in Australia by ICP Packaging Machines Australia. This machine has been manufactured without compromise in quality and with a high focus on reliability.

ICP-M2RV incorporates two volumetric filling cylinders with rotary valves, as seen in the ICP-1 fillers, and a BUF mechanism, allowing filling of two containers simultaneously.

Purpose-built for automatic inline operation attached to a conveyor. It comes complete with gates and whiskers to set to your conveyor, or we can supply a conveyor to suit.

Adjustable nozzle heads with multiple sizes to suit customer requirements and can be set up with a hopper or direct inlet connection.

FEATURES

  • Bottom-Up Fill (BUF) attachment.
  • All 316 stainless and food grade contact parts.
  • Fast toolless removal of contact parts for cleaning.
  • Fully pneumatic operation – flameproof.
  • Suitable for warm water washdown.
  • High quality pneumatics from Festo and SMC.
  • 304 Grade stainless steel base trolley on locking castors.
  • Easy operation and volume adjustment by a mm accurate digital counter. Allows for precise return to previous fill volume without the need to re-calibrate.
  • Fully adjustable fill and recharge speed valve controls.



OPTIONS

  • Custom Made stainless steel 50L product hopper
  • Various inlet connections from 1″- 3″ inch
  • Range of standard nozzles from 5 – 25mm
  • Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzle.
  • Additional sizes of interchangeable product cylinder and piston assemblies 25, 50,125, 250, 500 & 1250ml.
  • Optional IRD, ultrasonic or retro-reflective sensor-box in place of air whisker switch for bottle detection.
  • Optional spool valves for filling products up to 95 deg C.

SPECIFICATIONS

  • Dimensions 100cm Wide x 140cm Deep x 170cm High
  • Weight Approx. 75kg
  • Air pressure required 600Kpa or 0.6Mpa
  • Air consumption approx. 10 cubic feet per minute
  • Product cylinders maximum capacity 25,50,125,250,500 & 1250ml. Cylinders infinitely adjustable between 10% and 100% of their rated volumes.
  • Product piston fitted with O-ring energised Teflon/HDPE glide ring seal.
  • Quick connect tri-clover product inlet/outlet fittings.
  • Individually adjustable fill and recharge speed.
  • Fill rate of 20 – 50 per min (user and product dependant).
  • Fill accuracy ± 0.5% or better.
  • Capable of filling products up to 60 deg C. (95 deg with optional spool valves).
