ICP-M2 Auto (Spool Valve) 2.5ml to 1.25L

Price on quote

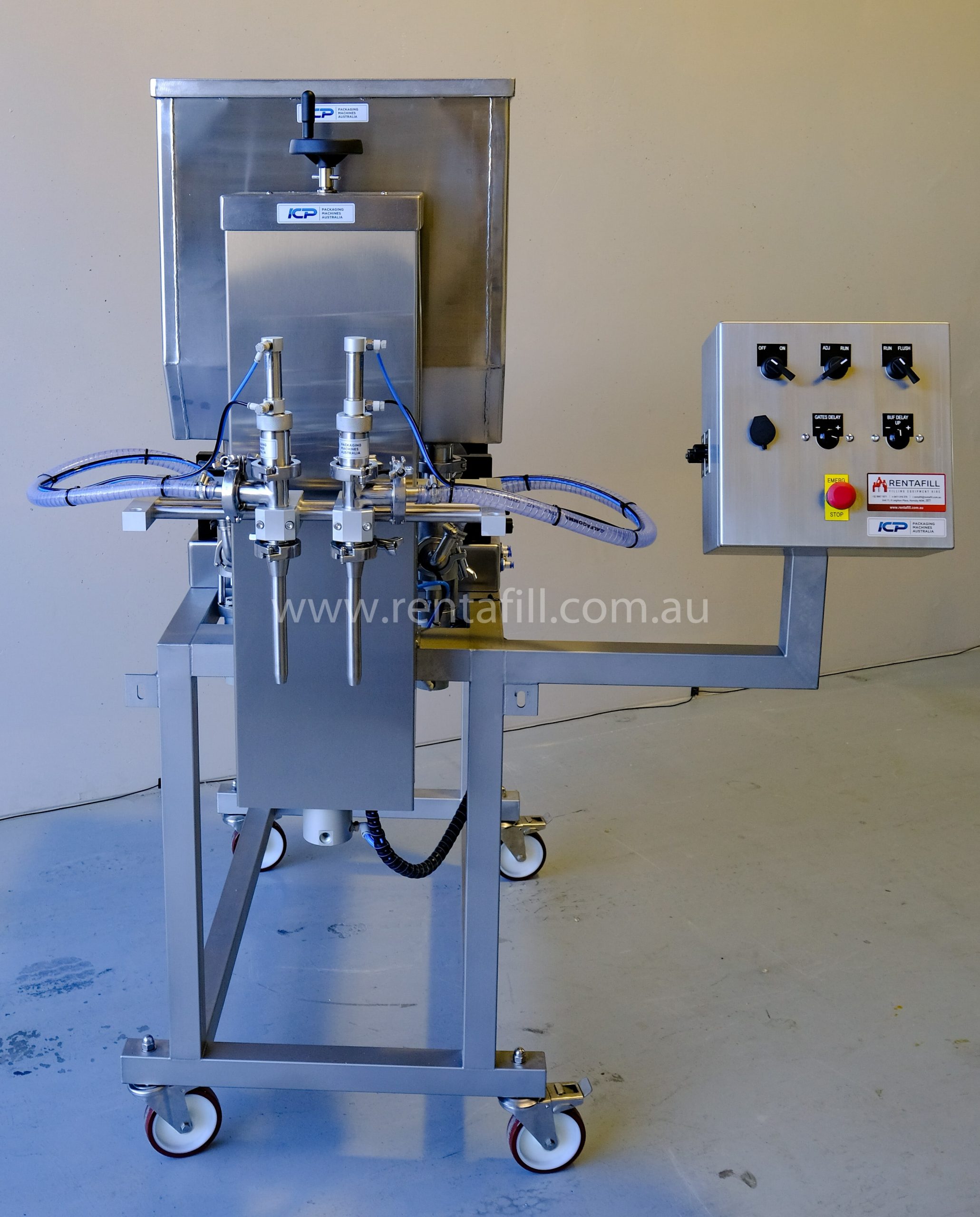

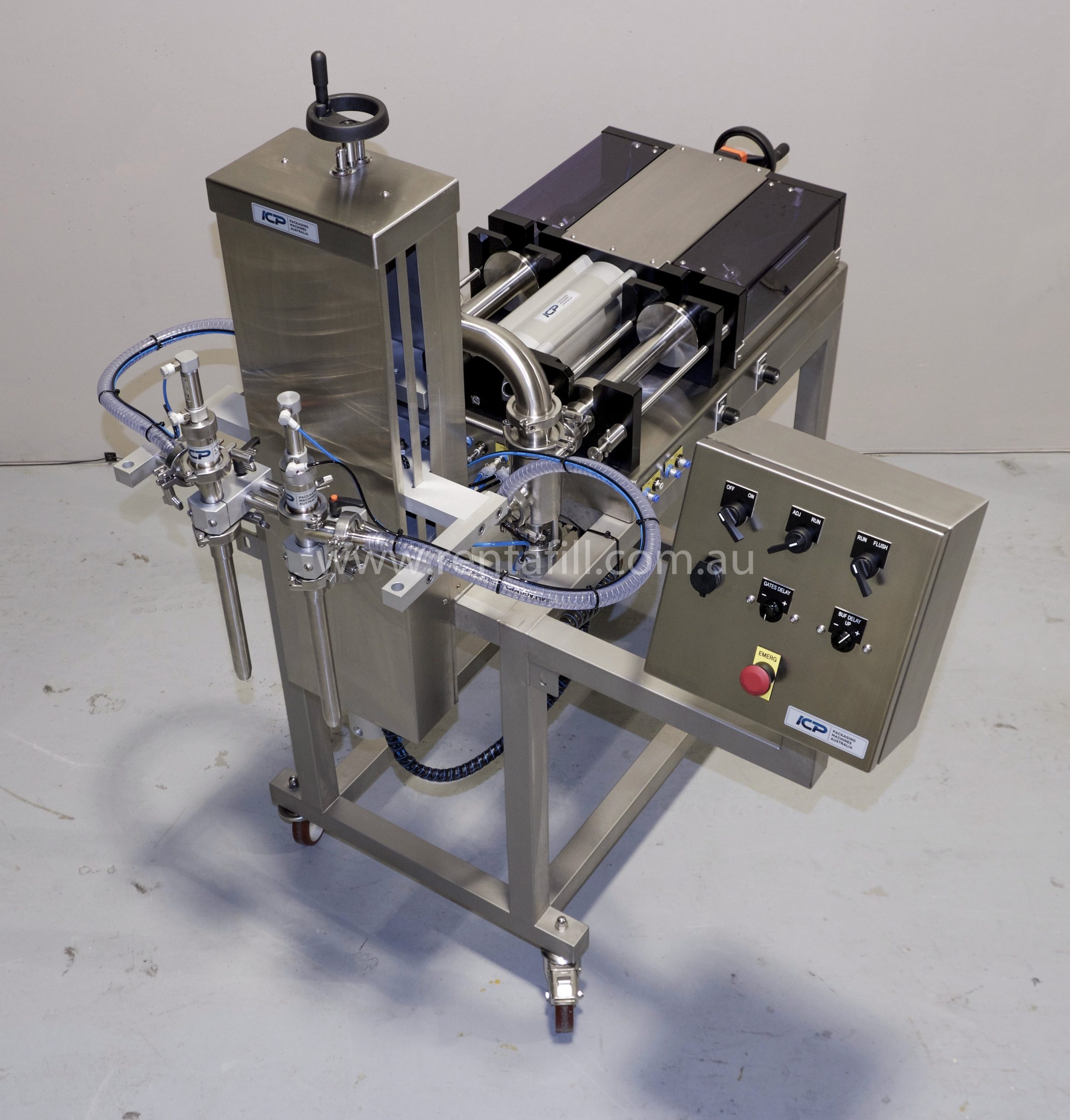

ICP-M2 Australian designed and built heavy-duty, two head, twin-cylinder volumetric inline automatic filling machine.

Spool Valve model with BUF attachment.

Filling range of 2.5ml – 1.25 litre

Add to Quote
Category:

A high-quality, heavy-duty machine built and designed in Australia by ICP Packaging Machines Australia. This machine has been manufactured without compromise in quality and with a high focus on reliability.

ICP-M2 incorporates two volumetric filling cylinders with spool valves and a BUF mechanism, allowing filling of two containers simultaneously.

Purpose-built for automatic operation attached to a conveyor. It comes complete with gates and whiskers to set to your conveyor, or we can supply a conveyor to suit.

ICP-M2 includes a spool valve setup, which allows cold and/or hot filling of products up to 95 deg C.

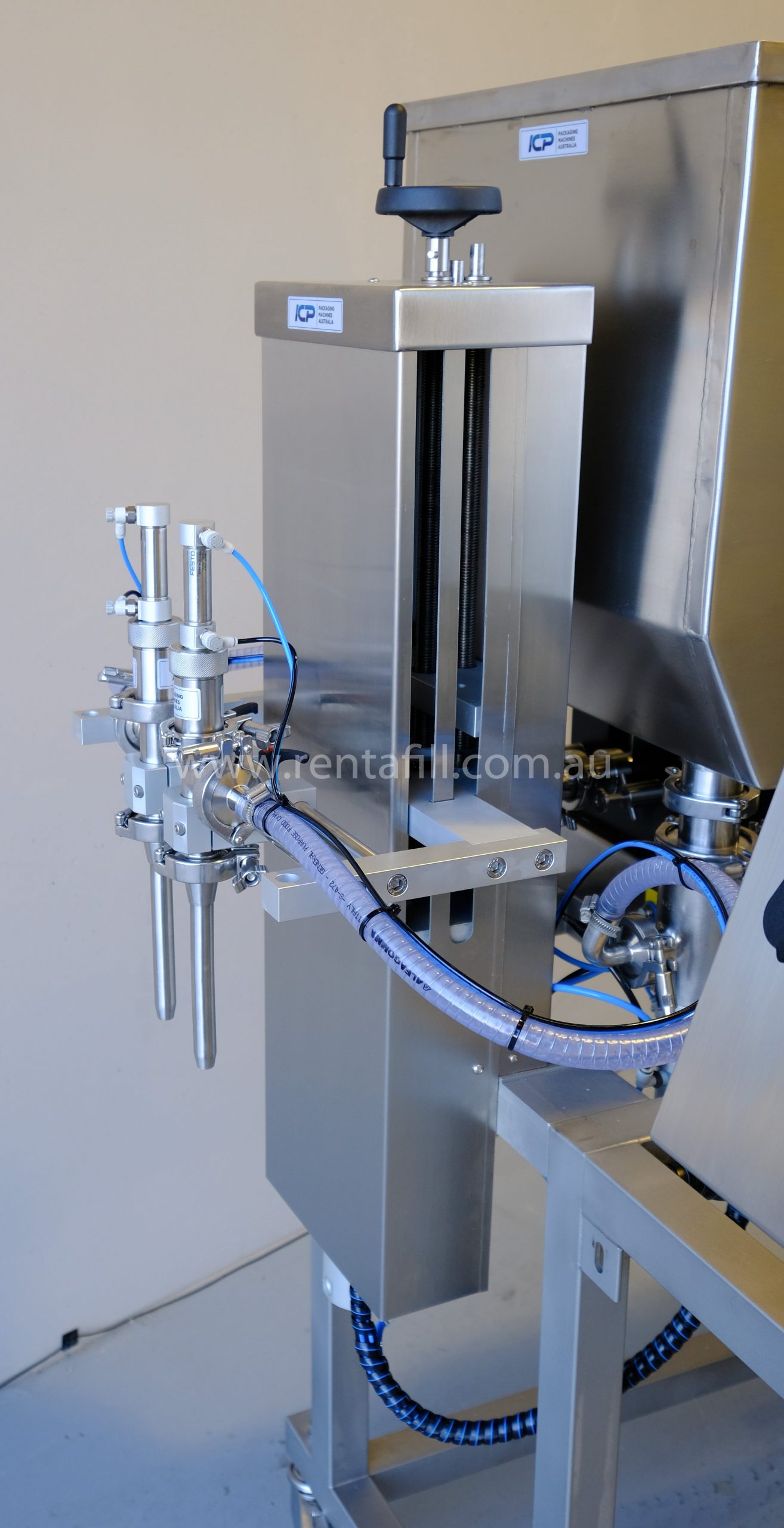

Adjustable nozzle heads with multiple sizes to suit customer requirements and can be set up with a hopper or direct inlet connection.

  • Bottom-Up Fill (BUF) attachment.
  • All 316 stainless and food grade contact parts.
  • Fast toolless removal of contact parts for cleaning.
  • Fully pneumatic operation – flameproof.
  • Suitable for warm water washdown.
  • High quality Pneumatics from Festo and SMC.
  • 304 Grade Stainless Steel base trolley on locking castors.
  • Easy operation and volume adjustment by a mm accurate digital counter. Allows for precise return to previous fill volume without the need to re-calibrate.
  • Fully adjustable fill and recharge speed valve controls.
  • Dimensions w x d x h (mm) 1000 x 1400 x 1700
  • Weight approx. 75kg
  • Air pressure required 600Kpa or 0.6Mpa
  • Air consumption approx. 10 cubic feet per minute
  • Product cylinders maximum capacity 25,50,125,250,500 & 1250ml. Cylinders are infinitely adjustable between 10% and 100% of their rated volumes.
  • Product piston fitted with O-ring energised Teflon/HDPE glide ring seal.
  • Quick connect tri-clover product inlet/outlet fittings.
  • Individually adjustable fill and recharge speed.
  • Fill rate of 20 – 50 per min (user and product dependant).
  • Fill accuracy ± 0.5% or better.
  • Custom Made stainless steel 50L product hopper.
  • Various inlet connections from 1″- 3″ inch.
  • Range of standard nozzles from 5 – 25mm.
  • Range of optional powered nozzles from positive shutoff (PSO) nozzle, plug & suck-back nozzle.
  • Additional sizes of interchangeable product cylinder and piston assemblies 25, 50,125, 250, 500 & 1250ml.
  • Optional IRD, ultrasonic or retro-reflective sensor-box in place of air whisker switch for bottle detection.
