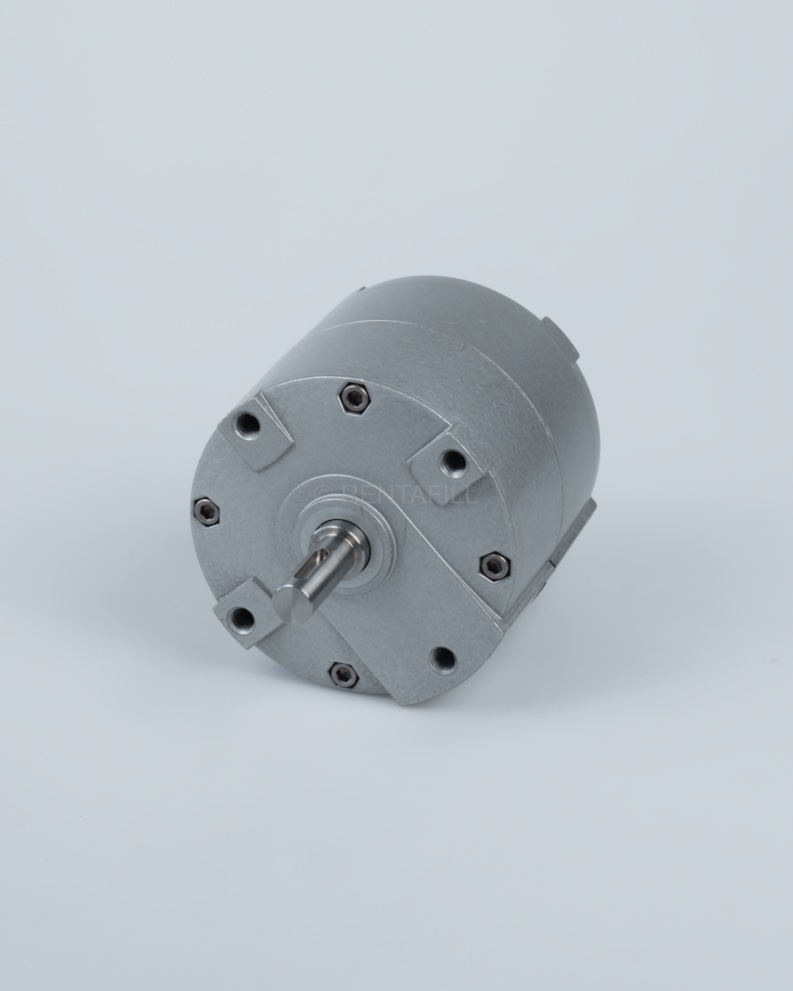

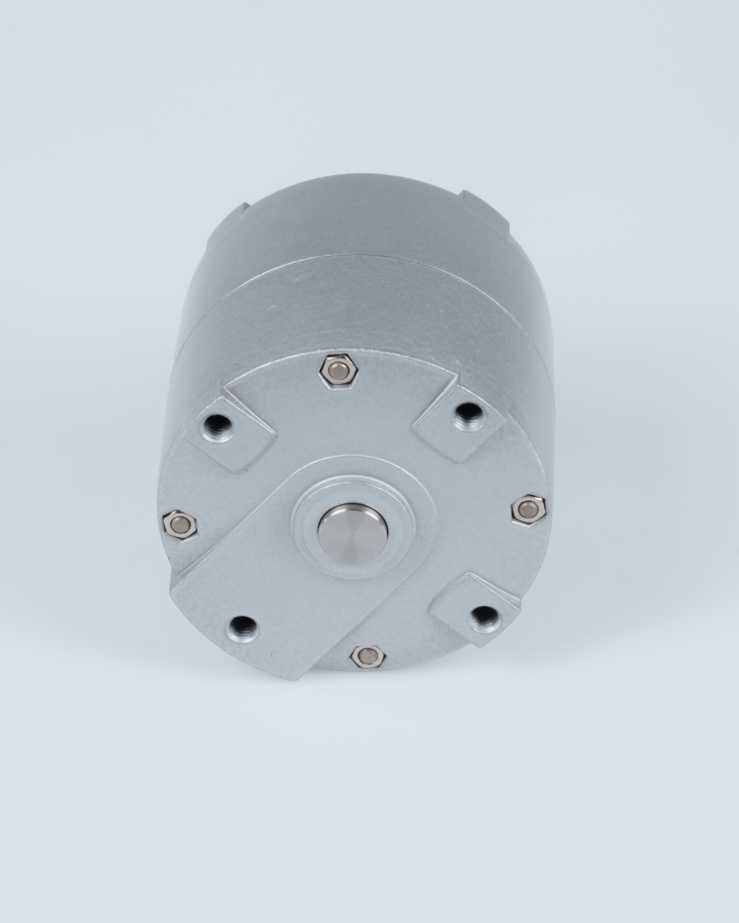

FESTO DRVS-40 Rotary Actuator with ICP Custom Stainless-Steel Splined Shaft
Purpose-built for ICP Filling Systems — stronger, cleaner, and more precise.
This upgraded FESTO DRVS-40 Rotary Actuator is designed specifically for the ICP-1 Benchtop Filler and the ICP-M2RV Automatic Filler, both engineered and built by ICP Packaging Machines Australia.
Unlike standard models, ICP replaces the factory steel shaft with a precision-machined stainless-steel splined shaft, custom-made in-house for enhanced strength, hygiene, and long-term durability in food, cosmetic, and chemical production environments.
Delivering approximately 20 Nm of torque at 6 bar, this actuator provides significantly more power and smoother motion than the SMC rotary actuators commonly found on competing fillers, which produce only around 15 Nm at 6 bar. The result is improved reliability, tighter fill control, and reduced maintenance over time.
Key Features
-
Designed exclusively for ICP-1 Benchtop and ICP-M2RV filling machines
-
Genuine FESTO DRVS-40 rotary actuator with ICP stainless-steel splined shaft
-
Higher torque (20 Nm @ 6 bar) than standard SMC alternatives
-
Stainless-steel shaft for superior corrosion resistance and food-grade performance
Specifications
-
Model: FESTO DRVS-40 (ICP modified)
-
Torque Output: 20 Nm @ 6 bar
-
Shaft Material: ICP custom 304 stainless steel (splined)
-
Actuation: Pneumatic, double-acting
-
Compatibility: ICP-1 Benchtop, ICP-M2RV Fillers
Package Includes
-
FESTO DRVS-40 Rotary Actuator
-
ICP Stainless-Steel Splined Shaft (factory-installed)
