AZTRO David G4 Belt-Wrap Labeller Applicator

Price on quote

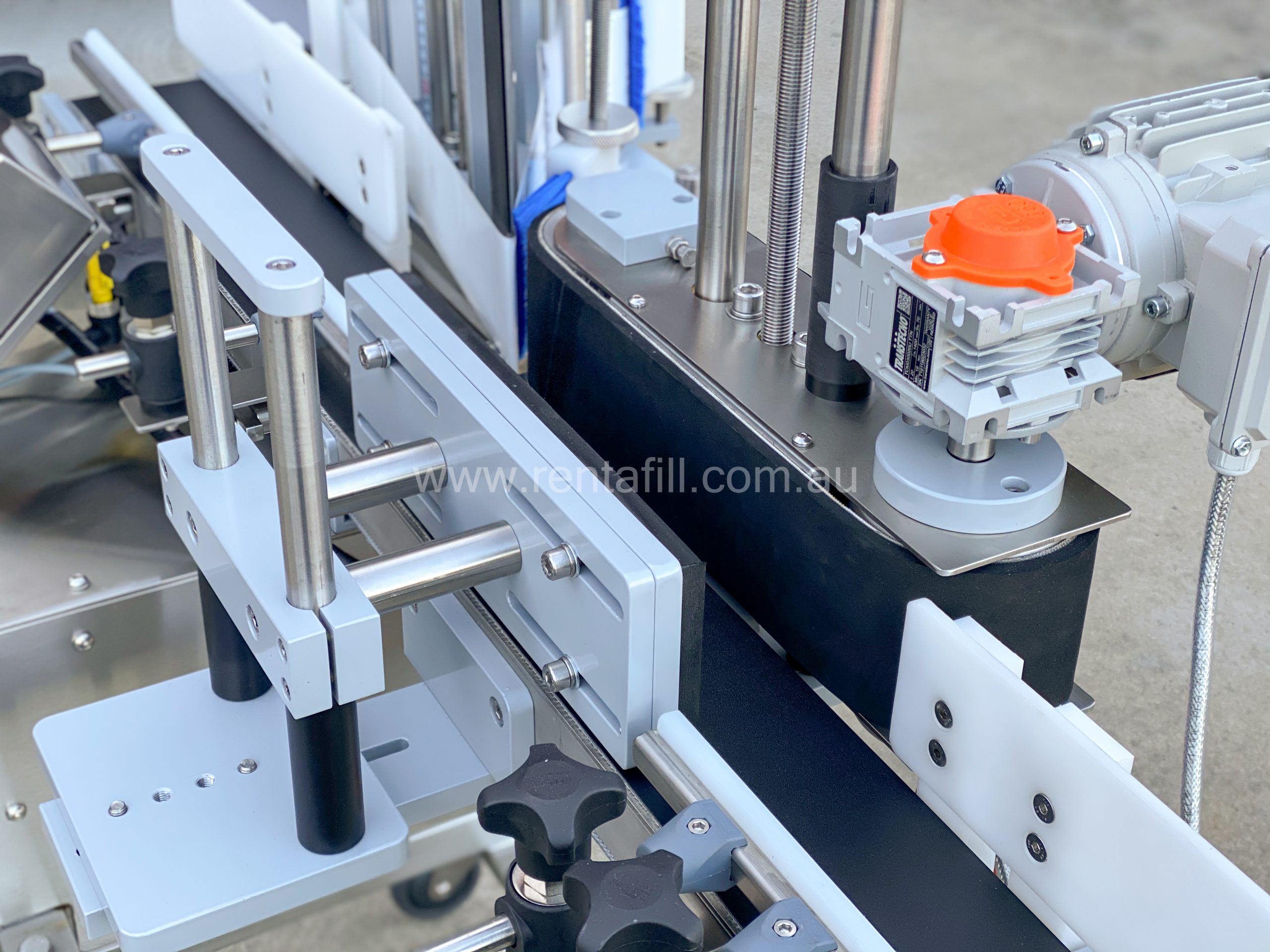

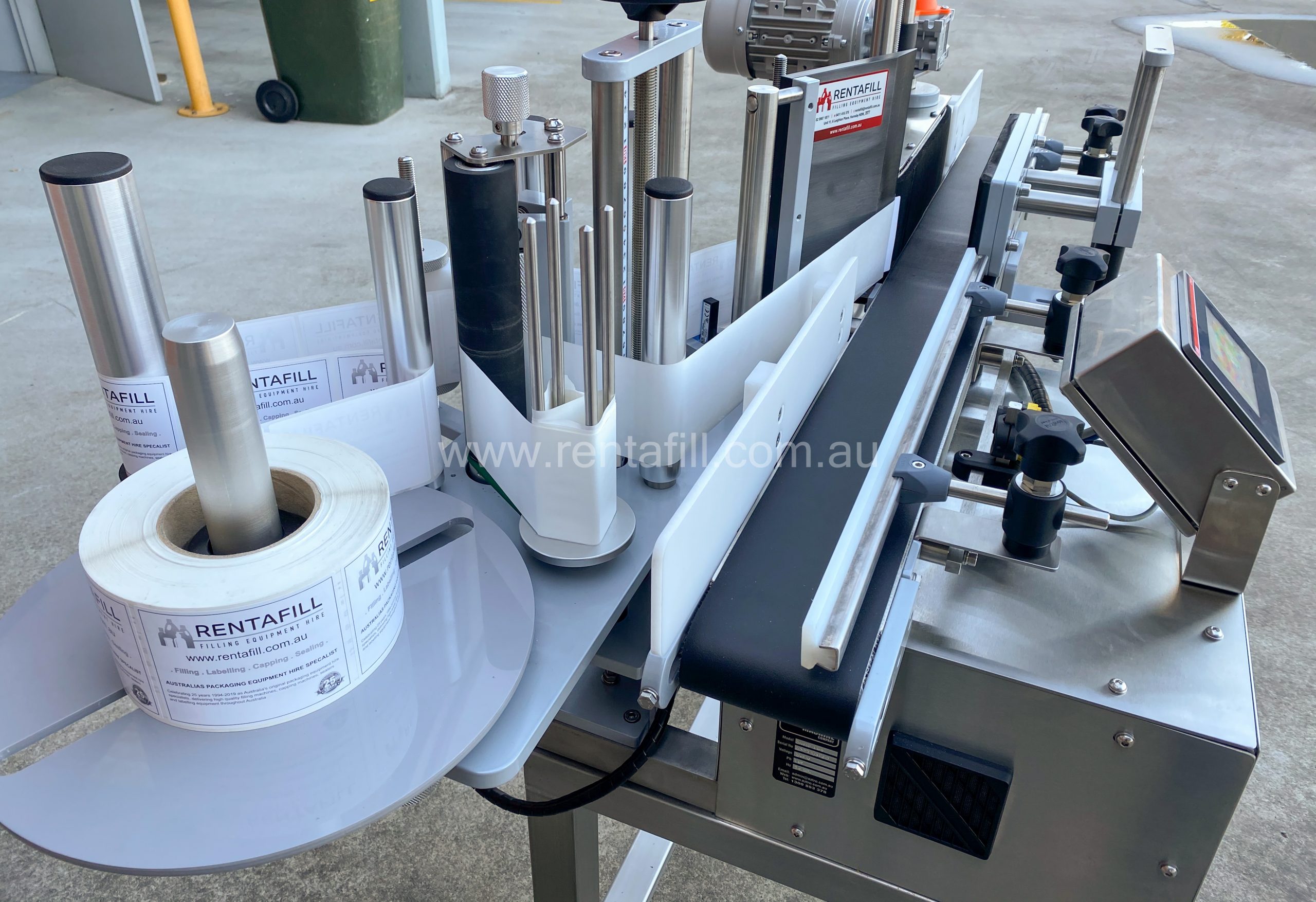

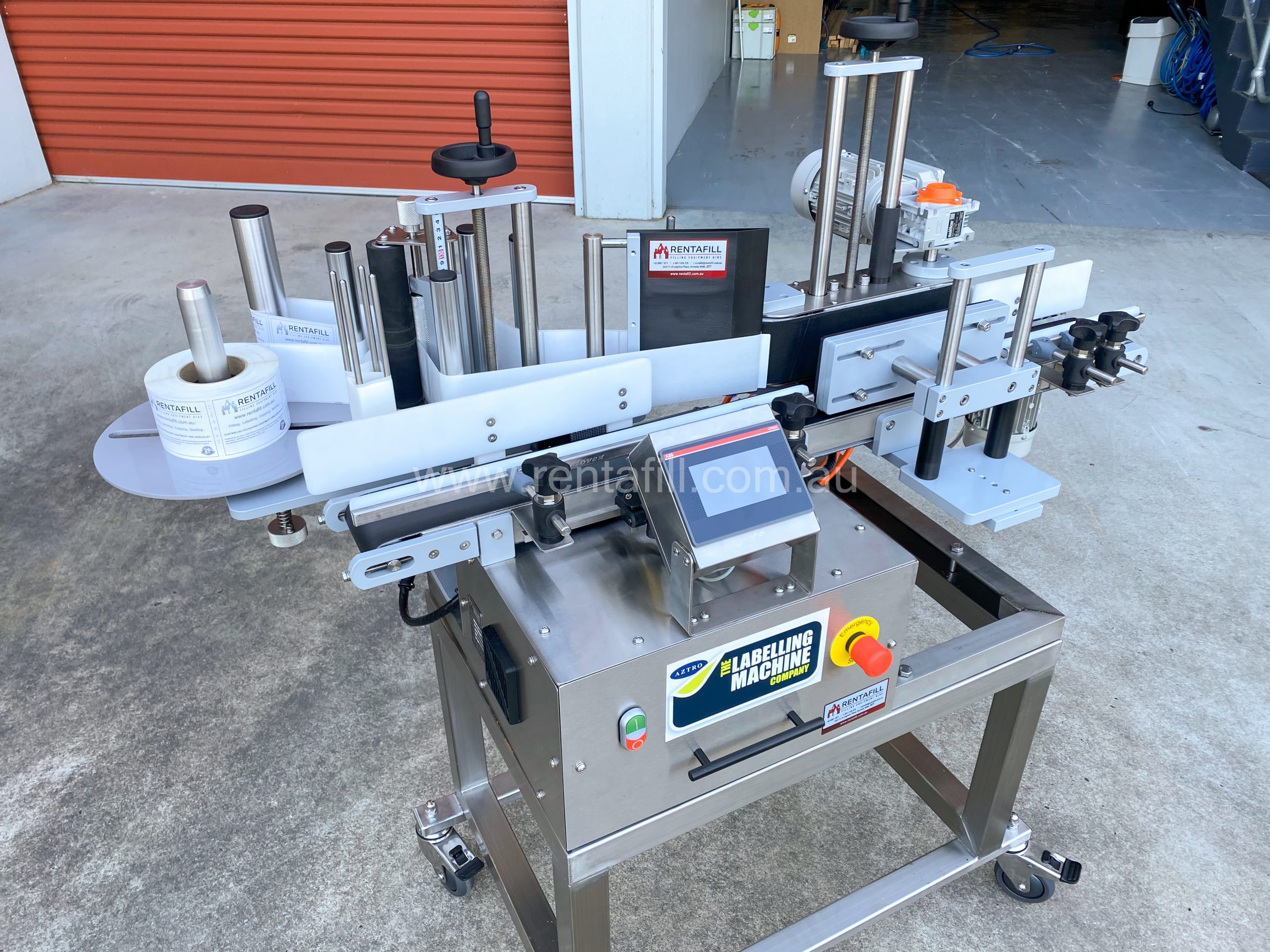

Aztro David G4 Wrap Belt by the Labelling Machine Company

Inline or standalone AUTO labeller perfect for small to medium production setups.

Add to Quote

Aztro David G4 wrap belt – Built-in Australia by The Labelling Machine Company

These machines are available as right-hand models, made from extruded aluminium and stainless steel to Australian high standards. The label head can apply one label only of round containers.

The speed of the labelling machine can be adjusted to match production line speeds.

Aztro David labeller has been designed to work in many applications and can be set up on a benchtop for semiautomatic operation, or can also be supplied with a base trolly to attach to the end of a conveyor inline applications. Once connected to a conveyor can also be configured with gates or a spacer wheel for fully automatic operation.

The user-friendly 2-way adjustment on the labelling head ensures that the label position can be precisely and accurately positioned on the container. The state-of-the-art labelling head with servo motor ensures accurate and consistent label positioning.

All machine controls and settings are set with intuitive touch screen control, centrally mounted on the machine.

  • Touch screen control
  • PLC programmed for:
    • format storage, up to 50 label formats
    • I/O ports
    • shift register for product detecting
  • Setting of:
    • label dispensing speed (up to 20Mt/min depending on label width)
    • label offset
    • label delay
  • One servo motor driven side mounted label head
  • Wind up/down label head adjustment
  • Start/stop and emergency shut off button
  • 1.2-meter long belt product conveyor, 100mm wide (Standard)
  • Mobile support frame of stainless construction with castors or adjustable legs
  • Clear label gap sensors (or clear labels with metallic foil)
  • Partial machine guarding
  • Power supply: single-phase 240 Vac 50Hz 10 Amp
  • Machine Weight: Approximately 90kg (standard machine without options)
  • Conveyor Height: subject to customers bench height or 900mm with mobile support frame.
  • Conveyor Length: 1200mm
  • Conveyor Width: 100mm
  • Conveyor Maximum Speed: Optional 20Mt/min
  • Label Head Height: 100mm
  • Label Placement Accuracy: +/- 1mm (subject to any container tolerance variations)
  • Maximum Diameter Label Roll – 300mm
  • Maximum Label Core Size: 76mm
  • Minimum Label Core Size: 32mm
  • Maximum Product Diameter: 100mm
  • Minimum Product Diameter: 20mm
  • Machine Weight: Approximately 100kg (standard machine without options)

Labeling Direction:
